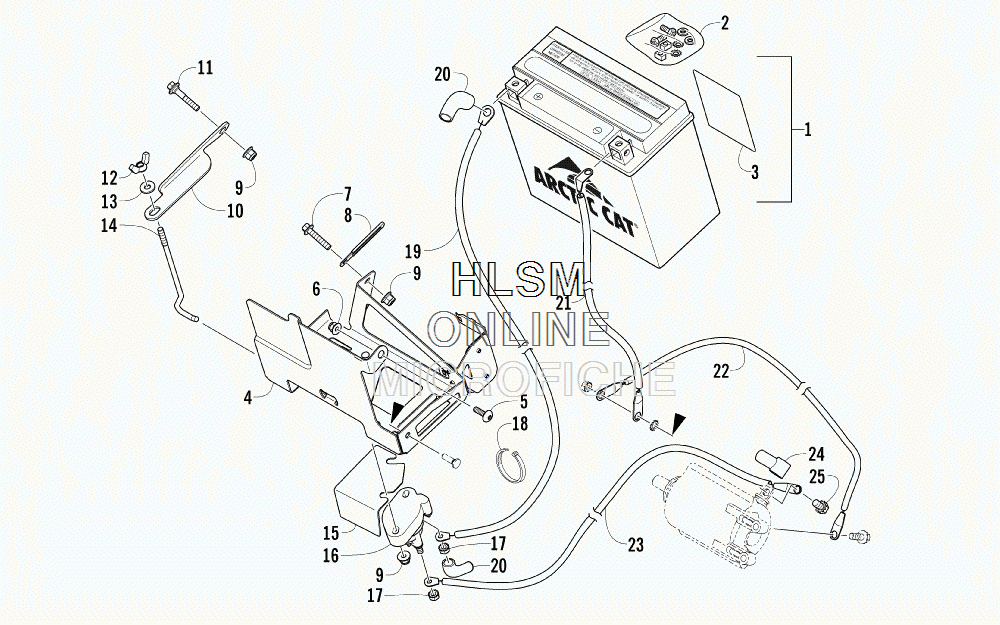

BATTERY AND TRAY ASSEMBLY для Arctic Cat TZ1 LXR - BLACK - [S2014TZNLXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
10645-480 BATTERY (INC. 2-3)BATTERY (INC. 2-3)
-
20445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
30645-430 ...DECAL, WARNING...DECAL, WARNING
-
40745-348 TRAY, BATTERYTRAY, BATTERY
-
58476-816 SCREW, MACHINESCREW, MACHINE
-
68427-802 NUT, LOCKNUT, LOCK
-
78408-630 SCREW, CAPSCREW, CAP
-
81623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
98427-602 NUT, LOCKNUT, LOCK
-
100745-317 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
111623-725 SCREW, SHOULDERSCREW, SHOULDER
-
120423-716 NUT, WINGNUT, WING
-
138050-217 WASHERWASHER
-
140745-329 ROD, HOLD-DOWN - BATTERYROD, HOLD-DOWN - BATTERY
-
150645-706 SHIELD, HEATSHIELD, HEAT
-
160445-092 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
170623-038 NUT W/WASHERNUT W/WASHER
-
180123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
190645-636 CABLE, BATTERY/SOLENOID (INC. 20)CABLE, BATTERY/SOLENOID (INC. 20)
-
200645-521 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
210645-586 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
220645-590 CABLE, STARTER-TO-GROUNDCABLE, STARTER-TO-GROUND
-
230645-589 CABLE, SOLENOID/STARTER (INC. 24)CABLE, SOLENOID/STARTER (INC. 24)
-
240645-581 ...BOOT, TERMINAL...BOOT, TERMINAL
-
251623-451 SCREW, CAP W/WASHERSCREW, CAP W/WASHER
