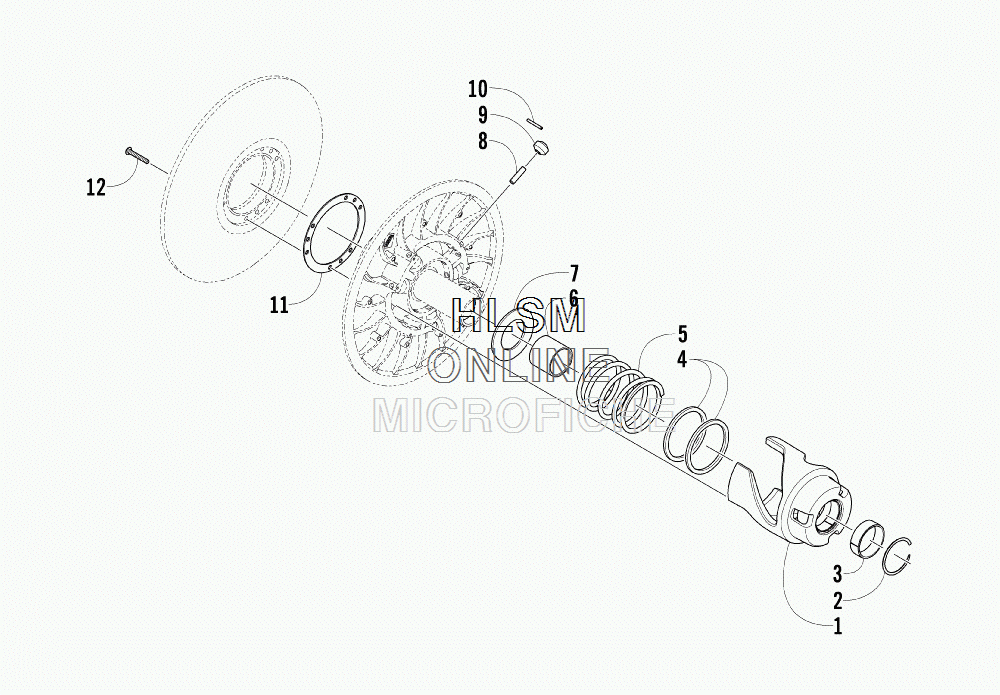

DRIVEN CLUTCH для Arctic Cat TZ1 LXR - BLACK - [S2014TZNLXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
-0726-303 DRIVEN CLUTCH ASSEMBLYDRIVEN CLUTCH ASSEMBLY
-
10748-687 BRACKET, TORQUE 48/40...(INC. 2-3)BRACKET, TORQUE 48/40...(INC. 2-3)
-
10748-662 BRACKET, TORQUE 36...(INC. 2-3) - OVER 5,000 FT ALT.BRACKET, TORQUE 36...(INC. 2-3) - OVER 5,000 FT ALT.
-
20648-433 ...RING, SNAP...RING, SNAP
-
30648-009 ...BEARING...BEARING
-
40648-713 SEAT, SPRINGSEAT, SPRING
-
50648-774 SPRING, DRIVEN CLUTCH - ORANGESPRING, DRIVEN CLUTCH - ORANGE
-
60648-806 SPACERSPACER
-
70648-453 SEAT, SPRINGSEAT, SPRING
-
80648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
90648-139 ROLLER, CAMROLLER, CAM
-
108070-224 PIN, SPRINGPIN, SPRING
-
110637-322 RETAINER, TORQUE BRACKET (INC. 12)RETAINER, TORQUE BRACKET (INC. 12)
-
121623-517 ...SCREW, MACHINE...SCREW, MACHINE
