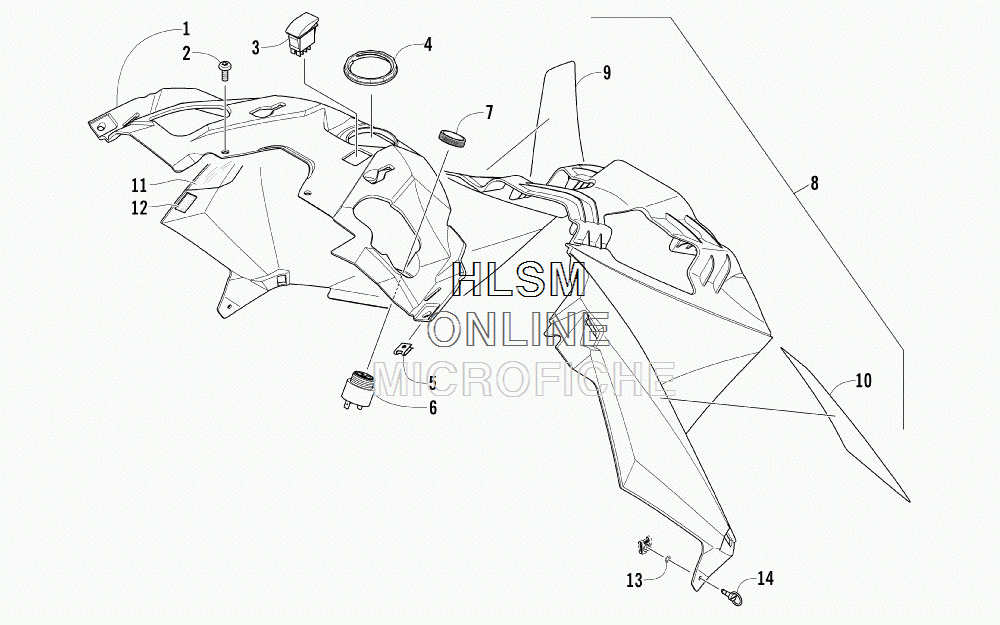

CONSOLE ASSEMBLY для Arctic Cat XF 7000 LXR - BLACK [S2014XFULXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
15706-161 CONSOLE, UPPER - BLACKCONSOLE, UPPER - BLACK
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30609-836 SWITCH, HEATED SEATSWITCH, HEATED SEAT
-
46606-390 NUT, RETAININGNUT, RETAINING
-
51623-939 CLIP, U-NUTCLIP, U-NUT
-
60630-243 ALARM, REVERSE (INC. 7)ALARM, REVERSE (INC. 7)
-
70630-017 ...RING, RETAINING...RING, RETAINING
-
84718-454 CONSOLE, LOWER - BLACK (INC. 9-12)CONSOLE, LOWER - BLACK (INC. 9-12)
-
99611-499 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
109611-498 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
-
116606-812 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
126990-323 ...VELCRO - 3 FT...VELCRO - 3 FT
-
132623-004 NUT, PUSHNUT, PUSH
-
142623-003 PIN, RETAININGPIN, RETAINING
