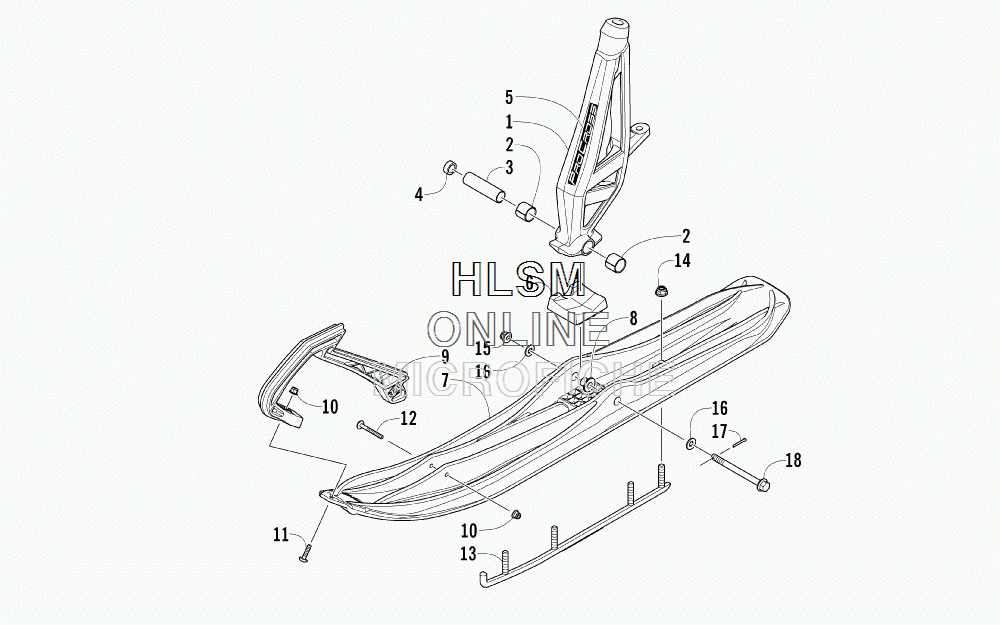

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 6000 Sno Pro RR - GREEN - INTERNATIONAL [S2014ZRDRROSG] - 2014 года выпуска
-
№АртикулНазвание
-
13703-190 SPINDLE, STEERING - RIGHT - BLACK (INC. 2)SPINDLE, STEERING - RIGHT - BLACK (INC. 2)
-
13703-191 SPINDLE, STEERING - LEFT - BLACK (INC. 2)SPINDLE, STEERING - LEFT - BLACK (INC. 2)
-
20603-158 ...BEARING...BEARING
-
32603-813 AXLE, SPINDLEAXLE, SPINDLE
-
42603-208 SPACERSPACER
-
50621-122 DECAL, SPINDLEDECAL, SPINDLE
-
63603-237 DAMPER, SKIDAMPER, SKI
-
73603-234 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
82603-746 INSERTINSERT
-
93603-228 HANDLE, PLASTIC - GREENHANDLE, PLASTIC - GREEN
-
108427-602 NUT, LOCKNUT, LOCK
-
118476-625 SCREW, MACHINESCREW, MACHINE
-
128476-650 SCREW, MACHINESCREW, MACHINE
-
130703-871 WEARBARWEARBAR
-
148047-486 NUT, LOCKNUT, LOCK
-
150423-744 NUT, LOCKNUT, LOCK
-
161623-801 WASHERWASHER
-
170123-458 PIN, COTTERPIN, COTTER
-
181623-781 SCREW, CAPSCREW, CAP
