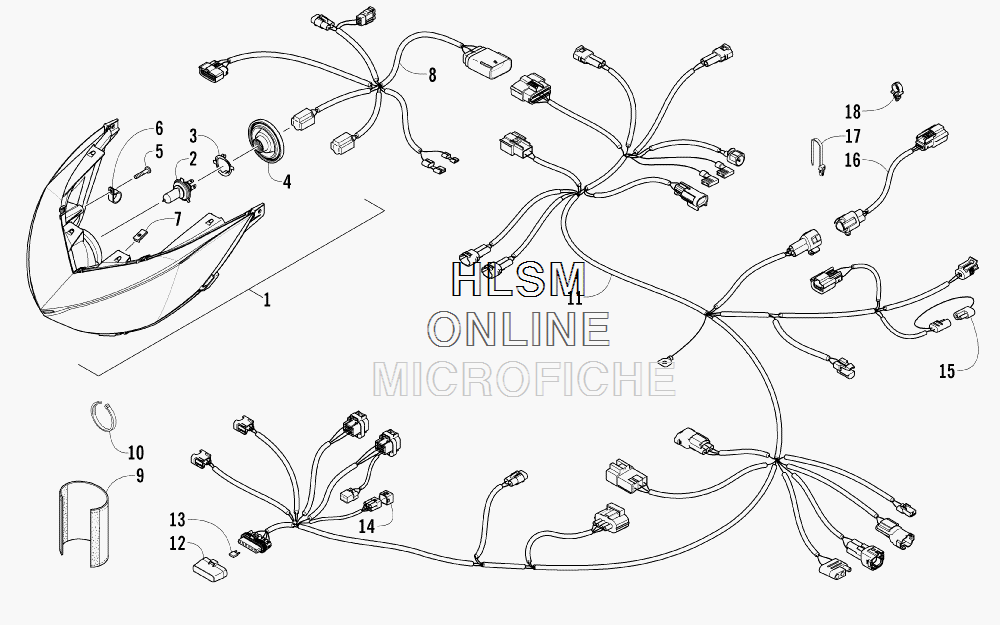

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 8000 Sno Pro RR - GREEN - INTERNTIONAL [S2014ZRHRROSG] - 2014 года выпуска

№

Артикул

Название
1

0609-899 HEADLIGHT ASSEMBLY (INC. 2-4)

HEADLIGHT ASSEMBLY (INC. 2-4)

28 700 ₽
2

0109-724 ...BULB

...BULB

2 280 ₽
3

0409-097 ...RETAINER

...RETAINER

5 190 ₽
4

0609-919 ...BOOT

...BOOT

4 360 ₽
5

1623-915 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
6

1623-675 CLAMP, ROUTING

CLAMP, ROUTING

290 ₽
7

0423-031 CLIP, U-NUT

CLIP, U-NUT

150 ₽
8

1686-638 HARNESS, HOOD

HARNESS, HOOD

18 920 ₽
9

5706-700 WRAP, HARNESS

WRAP, HARNESS

9 770 ₽
10

0123-811 TIE, CABLE - 4 IN.

TIE, CABLE - 4 IN.

40 ₽
10

0123-788 TIE, CABLE - 8 IN.

TIE, CABLE - 8 IN.

20 ₽
10

0123-903 TIE, CABLE - 11.5 IN.

TIE, CABLE - 11.5 IN.

90 ₽
11

1686-723 HARNESS, MAIN (INC. 12-15)

HARNESS, MAIN (INC. 12-15)

130 ₽
12

0609-889 ...COVER, FUSE HOLDER

...COVER, FUSE HOLDER

3 320 ₽
13

0430-068 ...FUSE - 7.5 AMP

...FUSE - 7.5 AMP

420 ₽
13

0430-031 ...FUSE - 15 AMP

...FUSE - 15 AMP

690 ₽
13

0430-098 ...FUSE - 20 AMP

...FUSE - 20 AMP

420 ₽
14

0430-097 ...COVER, DIAGNOSTICS CONNECTOR

...COVER, DIAGNOSTICS CONNECTOR

8 310 ₽
15

0486-164 ...TETHER, ACCESSORY CONNECTOR

...TETHER, ACCESSORY CONNECTOR

1 870 ₽
16

1686-684 HARNESS, EXTENSION - TAILLIGHT

HARNESS, EXTENSION - TAILLIGHT

4 570 ₽
17

0623-677 TIE, CABLE - PUSH-MOUNT

TIE, CABLE - PUSH-MOUNT

170 ₽
18

0623-101 CLIP, ROUTING - SNAP-IN - OPTIONAL

CLIP, ROUTING - SNAP-IN - OPTIONAL

830 ₽
