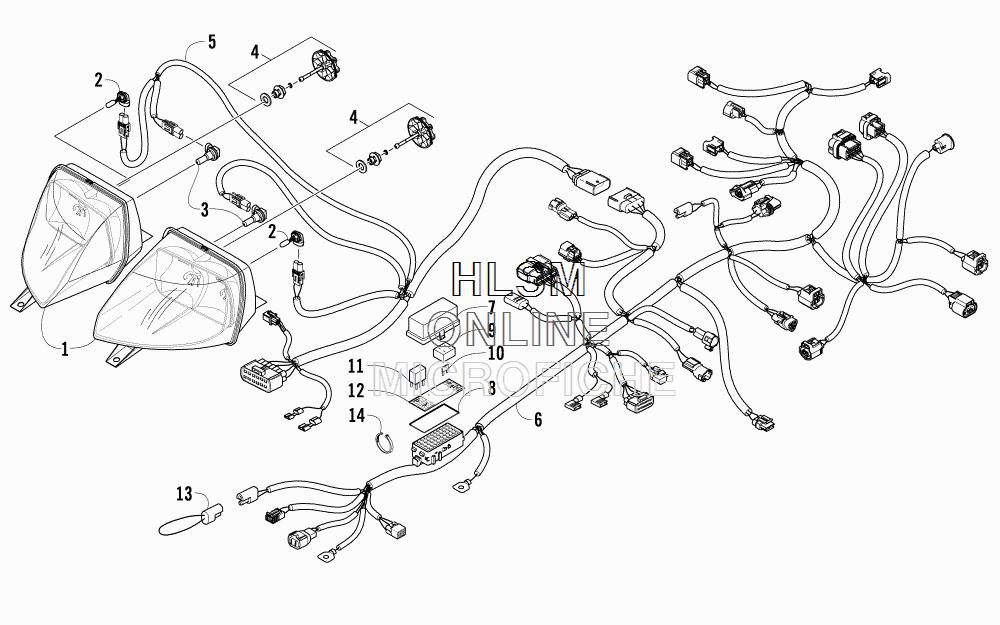

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat BEARCAT 5000 XT GS (ORANGE) [S2015BCNWGUSO] - 2015 года выпуска
-
№АртикулНазвание
-
10609-870 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
-
10609-871 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
-
20609-783 ......BULB, HEADLIGHT - LOW BEAM......BULB, HEADLIGHT - LOW BEAM
-
30609-782 ......BULB, HEADLIGHT - HIGH BEAM......BULB, HEADLIGHT - HIGH BEAM
-
40609-779 ......ADJUSTER, HEADLIGHT - ASSEMBLY......ADJUSTER, HEADLIGHT - ASSEMBLY
-
51686-547 HARNESS, CONSOLEHARNESS, CONSOLE
-
61686-613 HARNESS, MAIN (INC. 7-13)HARNESS, MAIN (INC. 7-13)
-
70430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
80430-086 ...SEAL...SEAL
-
90430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
100430-031 ...FUSE - (15 AMP)...FUSE - (15 AMP)
-
100430-098 ...FUSE, MINI - (20 AMP)...FUSE, MINI - (20 AMP)
-
100430-099 ...FUSE, MINI - (25 AMP)...FUSE, MINI - (25 AMP)
-
100430-030 ...FUSE - (30 AMP)...FUSE - (30 AMP)
-
110430-045 ...RELAY (4-PIN) - (20 AMP)...RELAY (4-PIN) - (20 AMP)
-
110430-033 ...RELAY (5-PIN) - (30 AMP)...RELAY (5-PIN) - (30 AMP)
-
128611-663 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
130486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
140123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
140123-903 TIE, CABLE - (11.5 IN.)TIE, CABLE - (11.5 IN.)
