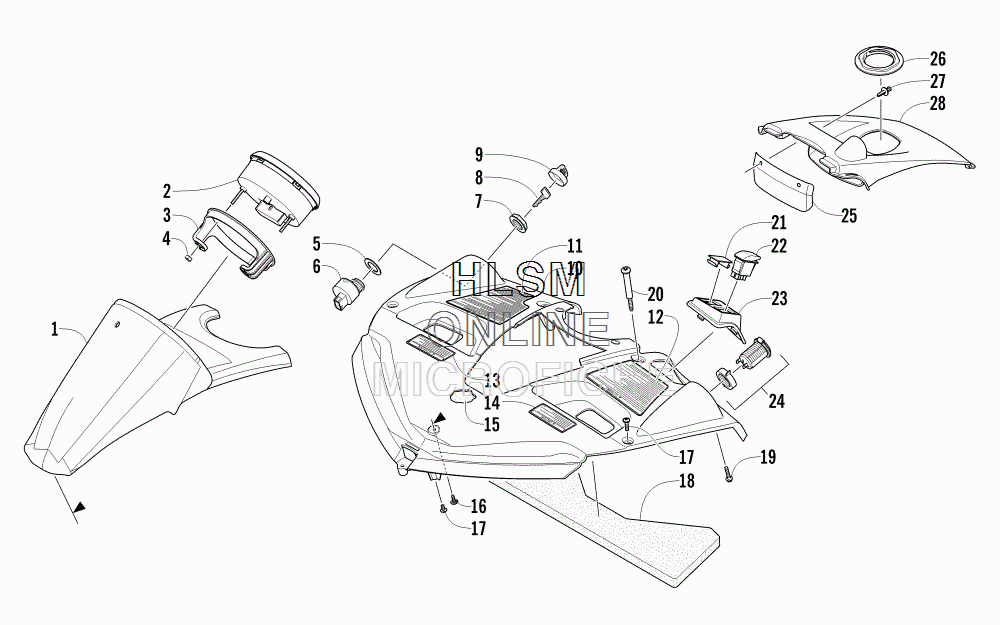

CONSOLE ASSEMBLY для Arctic Cat BEARCAT 5000 XT LTD (INTERNATIONAL) (BLACK) [S2015BCNWLOSB] - 2015 года выпуска
-
№АртикулНазвание
-
14706-836 HOUSING, SPEEDOMETER/TACHOMETERHOUSING, SPEEDOMETER/TACHOMETER
-
20620-365 SPEEDOMETER/TACHOMETERSPEEDOMETER/TACHOMETER
-
30620-322 BRACKET, RETAININGBRACKET, RETAINING
-
40423-493 NUT W/WASHERNUT W/WASHER
-
50630-264 WASHERWASHER
-
60609-911 SWITCH, IGNITION (INC. 7-9)SWITCH, IGNITION (INC. 7-9)
-
70430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
80430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
80430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
90430-054 ...COVER, KEY...COVER, KEY
-
102718-816 CONSOLE BLACK (INC. 11-14)CONSOLE BLACK (INC. 11-14)
-
118611-848 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
-
128611-849 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
137611-574 ...DECAL, CAUTION - FRENCH...DECAL, CAUTION - FRENCH
-
147611-575 ...DECAL, CAUTION - ENGLISH...DECAL, CAUTION - ENGLISH
-
150617-558 FOAM, CONSOLE - FRONTFOAM, CONSOLE - FRONT
-
161623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
171623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180617-559 FOAM, CONSOLE - REARFOAM, CONSOLE - REAR
-
190623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201623-669 SCREW, SHOULDERSCREW, SHOULDER
-
210409-070 PLUG, SWITCH HOLEPLUG, SWITCH HOLE
-
220609-836 SWITCH, HEATED SEATSWITCH, HEATED SEAT
-
235606-236 HOUSING, SWITCH/CONSOLEHOUSING, SWITCH/CONSOLE
-
240641-897 OUTLET, ACCESSORY - (12V)OUTLET, ACCESSORY - (12V)
-
254706-363 PANEL, CLOSE-OFFPANEL, CLOSE-OFF
-
266606-011 NUT, RETAININGNUT, RETAINING
-
270623-362 CLIP, RETAININGCLIP, RETAINING
-
284706-697 CLOSE-OFF, HANDLEBARCLOSE-OFF, HANDLEBAR
