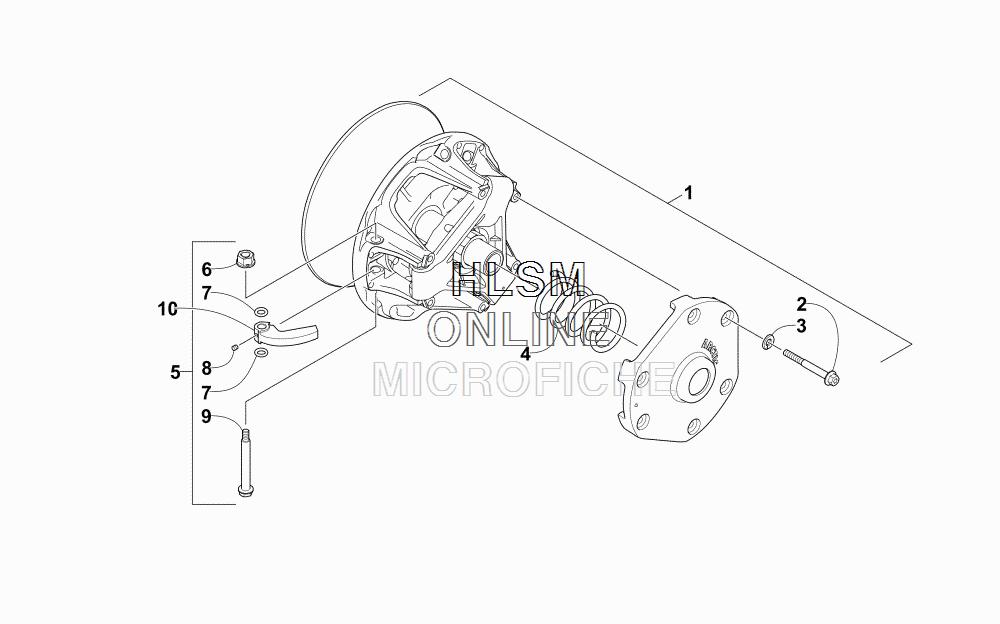

DRIVE CLUTCH для Arctic Cat BEARCAT 5000 XT LTD (INTERNATIONAL) (BLACK) [S2015BCNWLOSB] - 2015 года выпуска

№

Артикул

Название
1

0746-435 CLUTCH,DRIVE-UNCAL-(8.25 33MM/S) (INC. 2-4)

CLUTCH,DRIVE-UNCAL-(8.25 33MM/S) (INC. 2-4)

108 990 ₽
2

0646-431 ...SCREW, SHOULDER

...SCREW, SHOULDER

290 ₽
3

0646-430 ...WASHER, LOCK

...WASHER, LOCK

40 ₽
4

0646-439 SPRING, DRIVE CLUTCH - (BLACK/WHITE)

SPRING, DRIVE CLUTCH - (BLACK/WHITE)

7 900 ₽
4

0646-433 SPRING,CLUTCH-GOLD STRIPE-75/275 LB (OVER 9,000 FT ALT.)

SPRING,CLUTCH-GOLD STRIPE-75/275 LB (OVER 9,000 FT ALT.)

7 900 ₽
5

4639-674 KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)

KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)

8 730 ₽
6

8048-366 ...NUT, LOCK

...NUT, LOCK

110 ₽
7

1602-692 ...O-RING, 5/16 X 1/2 X 3/32 - VITON

...O-RING, 5/16 X 1/2 X 3/32 - VITON

110 ₽
8

1623-183 ............SCREW, SET

............SCREW, SET

250 ₽
9

0646-747 ...PIN, CAM ARM

...PIN, CAM ARM

2 700 ₽
10

0746-824 ARM, CAM (INC. 8)

ARM, CAM (INC. 8)

1 660 ₽
10

0746-828 ARM,CAM W/ SET SCREW-57G-SPEC (5-9,000 FT ALT.) (INC. 8)

ARM,CAM W/ SET SCREW-57G-SPEC (5-9,000 FT ALT.) (INC. 8)

3 530 ₽
10

0746-829 ARM,CAM W/SET SCREW-SPEC-52 GRAM (OVER 9,000 FT ALT.) (INC. 8)

ARM,CAM W/SET SCREW-SPEC-52 GRAM (OVER 9,000 FT ALT.) (INC. 8)

3 530 ₽
