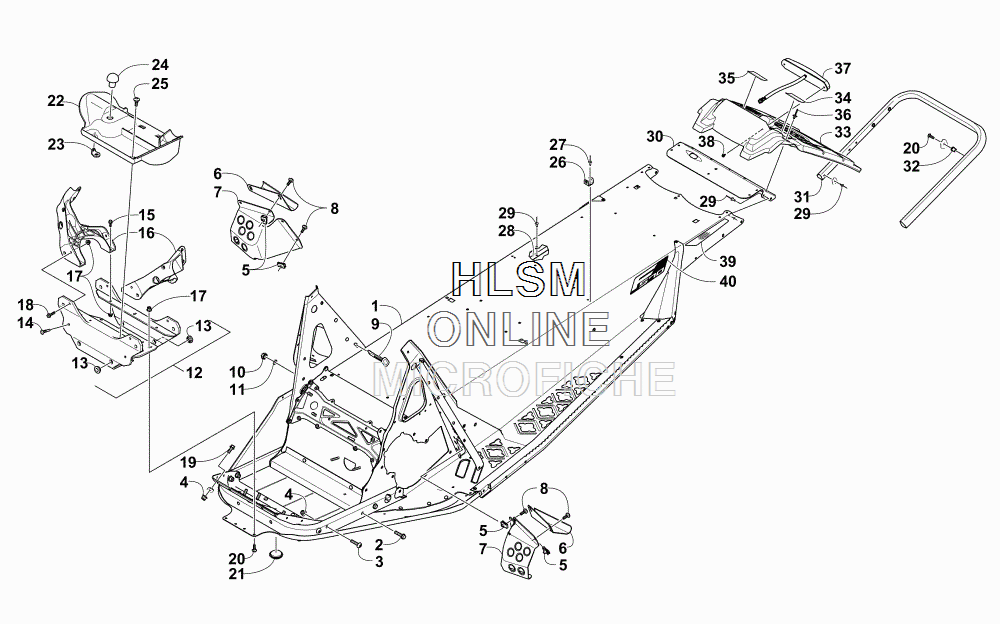

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat LYNX 2000 (GREEN) [S2015LXDFCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11707-279 CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
-
21623-428 ...SCREW, CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y...SCREW, CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y
-
38476-835 ...SCREW, MACH-TSTRH M8X1.25X35 Z & Y...SCREW, MACH-TSTRH M8X1.25X35 Z & Y
-
48427-802 ...NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y...NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
50423-577 CLIP, U-NUTCLIP, U-NUT
-
63606-920 BRACKET, TOE HOOK - RIGHTBRACKET, TOE HOOK - RIGHT
-
63606-921 BRACKET, TOE HOOK - LEFTBRACKET, TOE HOOK - LEFT
-
73606-710 SHIELD, TOE - RIGHTSHIELD, TOE - RIGHT
-
73606-711 SHIELD, TOE - LEFTSHIELD, TOE - LEFT
-
88471-616 SCREW, MACHINESCREW, MACHINE
-
94606-454 STRAP, HOLD-DOWN - RIGHTSTRAP, HOLD-DOWN - RIGHT
-
94606-455 STRAP, HOLD-DOWN - LEFTSTRAP, HOLD-DOWN - LEFT
-
100623-038 NUT W/WASHERNUT W/WASHER
-
118053-212 WASHER, LOCKWASHER, LOCK
-
121707-340 BRKT,FRT SUSP MTG-W/BUSHINGS (INC. 13-14)BRKT,FRT SUSP MTG-W/BUSHINGS (INC. 13-14)
-
130605-763 ...BUSHING...BUSHING
-
141623-443 ...BOLT, RIBBED...BOLT, RIBBED
-
158408-620 SCREW, CAPSCREW, CAP
-
160607-806 FRAME, MOUNTING - SHOCK - RIGHTFRAME, MOUNTING - SHOCK - RIGHT
-
160607-807 FRAME, MOUNTING - SHOCK - LEFTFRAME, MOUNTING - SHOCK - LEFT
-
178427-602 NUT, LOCKNUT, LOCK
-
188408-625 SCREW, CAP-HFH M6X1.0X25 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X25 CL8.8 Z & Y
-
198408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
-
208476-620 SCREW, MACHINESCREW, MACHINE
-
211623-625 PLUGPLUG
-
225606-318 CLOSE-OFF, FRONT ENDCLOSE-OFF, FRONT END
-
234606-770 BRACKET, RETAININGBRACKET, RETAINING
-
240612-111 BUMPER, MOLDED - RUBBERBUMPER, MOLDED - RUBBER
-
250423-557 SCREW, SHOULDER W/LOCTITESCREW, SHOULDER W/LOCTITE
-
266606-028 BRACKET, SEAT RETAINERBRACKET, SEAT RETAINER
-
278060-484 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
286606-056 SUPPORT, TUNNELSUPPORT, TUNNEL
-
286606-057 SUPPORT, TUNNEL - LEFTSUPPORT, TUNNEL - LEFT
-
298060-686 RIVET,BLIND-DH SS64 ZINCRIVET,BLIND-DH SS64 ZINC
-
305606-701 END CAP, TUNNELEND CAP, TUNNEL
-
314706-664 BUMPER, REAR (INC. 32)BUMPER, REAR (INC. 32)
-
320423-391 ...INSERT...INSERT
-
334706-547 SNOWFLAPSNOWFLAP
-
345611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
355611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
368061-706 RIVETRIVET
-
370609-863 TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)REDTAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED
-
380623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
398611-720 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
398611-721 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
409611-998 DECAL, TUNNELDECAL, TUNNEL
