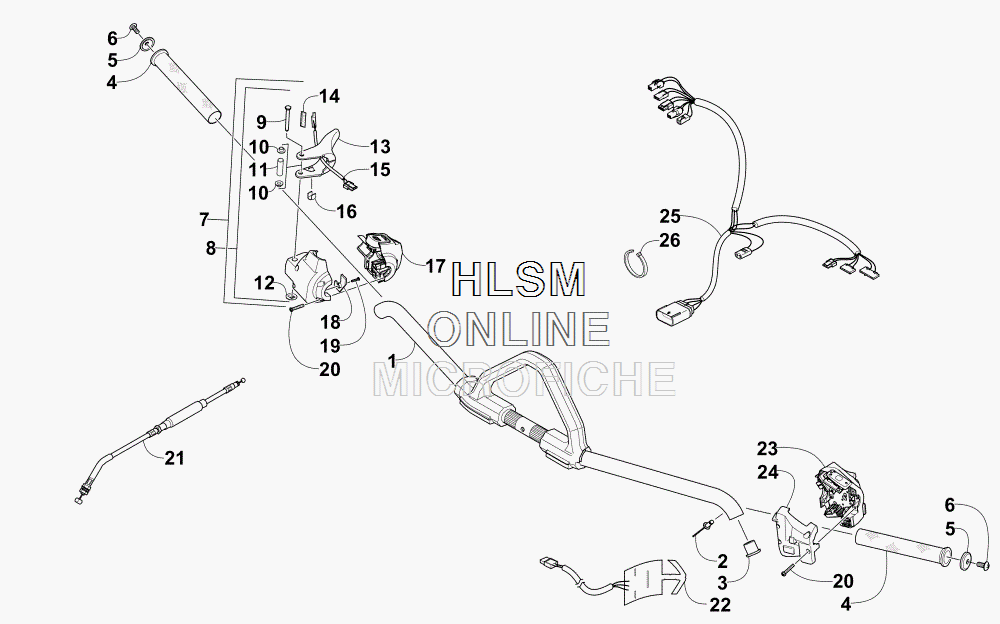

HANDLEBAR AND CONTROLS для Arctic Cat M 6000 153 (GREEN) [S2015M6DE3USG] - 2015 года выпуска
-
№АртикулНазвание
-
11705-493 HANDLEBAR W/INSERTS - ASSEMBLY (INC. 2-3)HANDLEBAR W/INSERTS - ASSEMBLY (INC. 2-3)
-
28060-682 ...RIVET, BLIND-DH SS62 ZINC...RIVET, BLIND-DH SS62 ZINC
-
30605-945 ...INSERT, HANDLEBAR...INSERT, HANDLEBAR
-
44606-945 GRIPGRIP
-
51623-754 WASHER, BACKINGWASHER, BACKING
-
61623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70609-888 CONTROL, THROTTLE - RIGHT HAND - REAR (36 MM) (INC. 8-13)CONTROL, THROTTLE - RIGHT HAND - REAR (36 MM) (INC. 8-13)
-
80609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 9-12)...KIT, THROTTLE LEVER MOUNTING (INC. 9-12)
-
120123-766 ......NUT, PUSH (INCLUDED IN KIT)......NUT, PUSH (INCLUDED IN KIT)
-
130609-797 ...LEVER, THROTTLE...LEVER, THROTTLE
-
140617-248 PAD, INSULATOR - THUMB WARMERPAD, INSULATOR - THUMB WARMER
-
150609-827 ELEMENT, THUMB WARMER - HI/LO (15 V)ELEMENT, THUMB WARMER - HI/LO (15 V)
-
160609-595 CLIP, RETAININGCLIP, RETAINING
-
170609-880 CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)
-
180609-792 COVER, CONNECTORCOVER, CONNECTOR
-
190609-793 SCREW, MACHINESCREW, MACHINE
-
200609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210687-239 CABLE, THROTTLECABLE, THROTTLE
-
220609-938 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
220609-939 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
230609-929 CONTROL, LEFT HAND W/O PPT - FRONTCONTROL, LEFT HAND W/O PPT - FRONT
-
240609-883 CONTROL, LEFT HAND - REARCONTROL, LEFT HAND - REAR
-
251686-636 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
260123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
260123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
