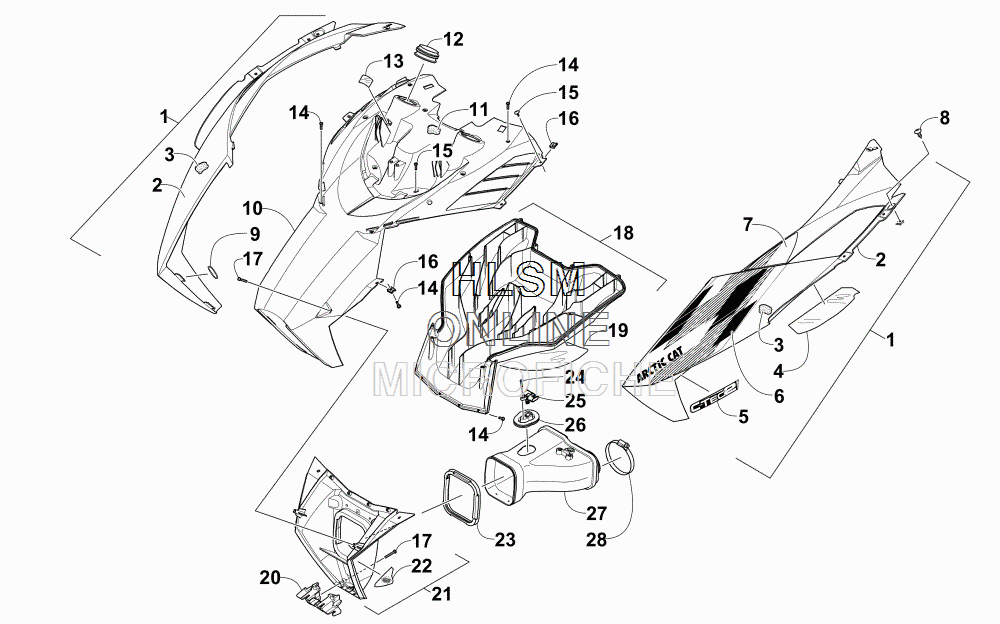

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 6000 153 (GREEN) [S2015M6DE3USG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-284 HOOD W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-3, ONE NO. 5, AND 6-7)HOOD W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-3, ONE NO. 5, AND 6-7)
-
23718-656 ...HOOD W/O DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 3)...HOOD W/O DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 3)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
61621-420 ...DECAL, HOOD - FRONT - RIGHT...DECAL, HOOD - FRONT - RIGHT
-
71621-422 ...DECAL, HOOD - REAR - RIGHT...DECAL, HOOD - REAR - RIGHT
-
14718-285 HOOD W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 2-4, ONE NO. 5, AND 6-7)HOOD W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 2-4, ONE NO. 5, AND 6-7)
-
23718-657 ...HOOD W/O DECALS - LEFT - TEAM ARCTIC GREEN (INC. 3-4)...HOOD W/O DECALS - LEFT - TEAM ARCTIC GREEN (INC. 3-4)
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50621-906 ...DECAL, HOOD - "C-TEC"...DECAL, HOOD - "C-TEC"
-
61621-421 ...DECAL, HOOD - FRONT - LEFT...DECAL, HOOD - FRONT - LEFT
-
71621-423 ...DECAL, HOOD - REAR - LEFT...DECAL, HOOD - REAR - LEFT
-
80623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
91623-960 O-RINGO-RING
-
105706-356 PLENUM, INTAKE - UPPER (INC. 11)PLENUM, INTAKE - UPPER (INC. 11)
-
110617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
126606-386 BOOT, INTAKEBOOT, INTAKE
-
132606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
141623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161623-939 CLIP, U-NUTCLIP, U-NUT
-
171623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
185706-358 PLENUM, INTAKE - LOWER REAR (INC. 19)PLENUM, INTAKE - LOWER REAR (INC. 19)
-
196606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
206606-822 RETAINER, PLENUMRETAINER, PLENUM
-
215706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
-
220621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
230617-624 ADAPTER, BOOTADAPTER, BOOT
-
242623-016 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250824-052 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
262670-444 BOOT, T-MAP SENSORBOOT, T-MAP SENSOR
-
271770-056 BOOT, INTAKEBOOT, INTAKE
-
280423-018 CLAMP, HOSECLAMP, HOSE
