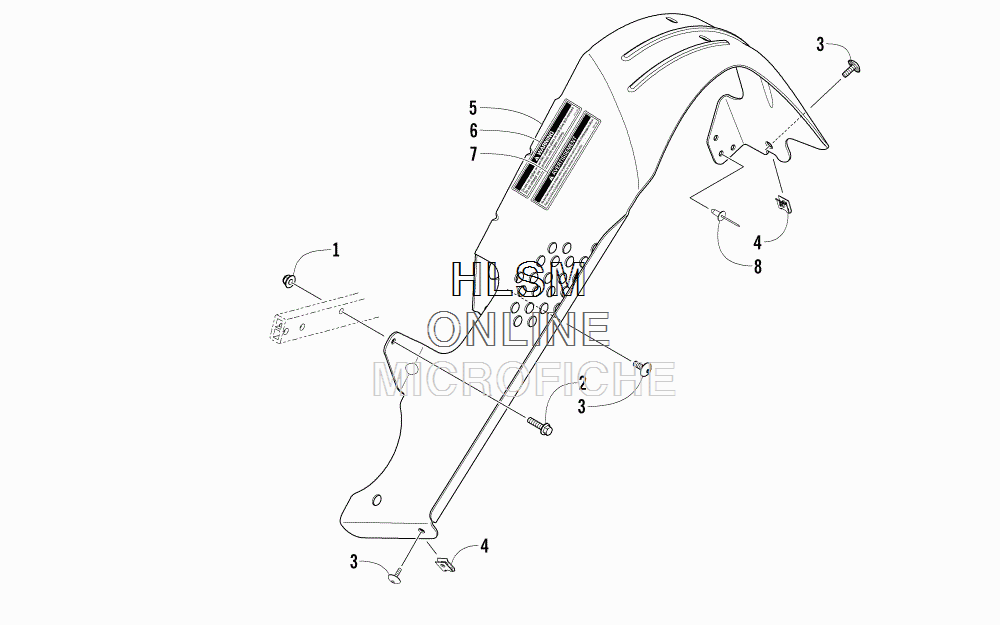

BELT GUARD ASSEMBLY для Arctic Cat M 6000 153 (INTERNATIONAL) (GREEN) [S2015M6DE3OSG] - 2015 года выпуска
-
№АртикулНазвание
-
18427-502 NUT, LOCKNUT, LOCK
-
28408-525 SCREW, CAP-HFH M5X0.8X25 CL8.8 Z & YSCREW, CAP-HFH M5X0.8X25 CL8.8 Z & Y
-
30623-797 SCREW, SELF TAP-TSTH 10-12X1/2 WO/GPSCREW, SELF TAP-TSTH 10-12X1/2 WO/GP
-
41623-052 CLIP, U-NUTCLIP, U-NUT
-
52707-275 GUARD, BELT (INC. 6-7)GUARD, BELT (INC. 6-7)
-
69611-690 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
79611-691 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
88060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
