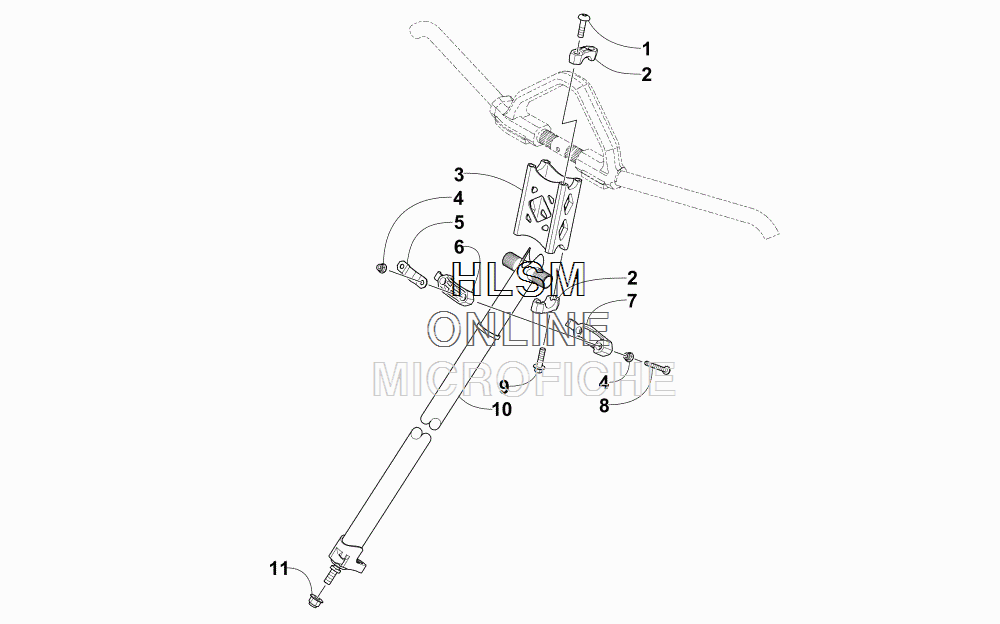

STEERING POST ASSEMBLY для Arctic Cat M 6000 153 (INTERNATIONAL) (GREEN) [S2015M6DE3OSG] - 2015 года выпуска
-
№АртикулНазвание
-
18476-830 SCREW, CAPSCREW, CAP
-
21605-118 CAP, STEERINGCAP, STEERING
-
31605-034 BLOCK, RISER - 6.5 IN.BLOCK, RISER - 6.5 IN.
-
48427-602 NUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
50605-998 PLATE, RETAININGPLATE, RETAINING
-
61605-127 BLOCK, MTG-STEERING POST-UPPERBLOCK, MTG-STEERING POST-UPPER
-
71605-128 BLOCK, MTG-STEERING POST-LOWERBLOCK, MTG-STEERING POST-LOWER
-
82623-079 SCREW, MACH-TSPNH M6X1.0X60 CL8.8 Z & YSCREW, MACH-TSPNH M6X1.0X60 CL8.8 Z & Y
-
98408-830 SCREW, CAP-HFH M8X1.25X30 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X30 CL8.8 Z & Y
-
101705-309 POST, STEERINGPOST, STEERING
-
112623-076 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
