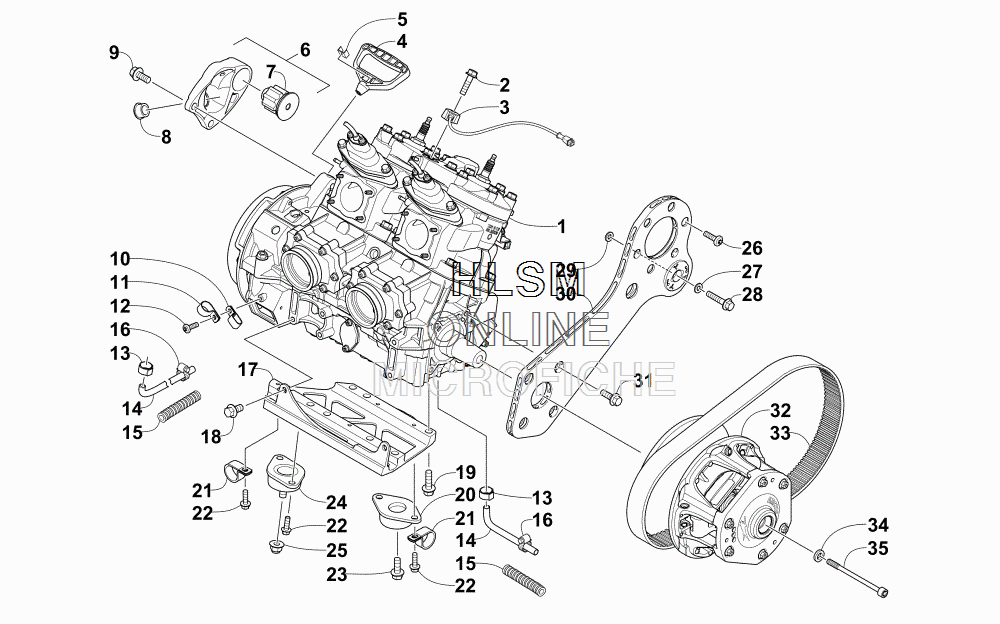

ENGINE AND RELATED PARTS для Arctic Cat M 6000 ES 153 (GREEN) [S2015M6DESUSG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/9868aaae-dbf7-43e0-996a-a8f68cd6b2a7.gif)
-
№АртикулНазвание
-
10962-037 ENGINE, 600 DSI MY16 - L B ASSEMBLYENGINE, 600 DSI MY16 - L B ASSEMBLY
-
10962-027 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
20923-049 SCREW, CAPSCREW, CAP
-
30902-024 SENSOR, KNOCKSENSOR, KNOCK
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
60708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 7-8)BRACKET, ENGINE MOUNTING - MAG (INC. 7-8)
-
70608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
80608-633 ...BUSHING...BUSHING
-
98409-026 SCREW, CAPSCREW, CAP
-
101623-733 CLAMP, ROUTINGCLAMP, ROUTING
-
111623-675 CLAMP, ROUTINGCLAMP, ROUTING
-
128471-616 SCREW, MACHINESCREW, MACHINE
-
130610-563 CLAMP, HOSECLAMP, HOSE
-
140610-779 HOSE, COOLANT - THROTTLE BODYHOSE, COOLANT - THROTTLE BODY
-
150619-776 CONDUIT - 5 FTCONDUIT - 5 FT
-
160623-373 CLAMP, HOSECLAMP, HOSE
-
170708-598 PLATE, ENGINE MOUNTING - LOWERPLATE, ENGINE MOUNTING - LOWER
-
188409-821 SCREW, CAP-HFH M8X1.25X20 CL10.9 W/2353SCREW, CAP-HFH M8X1.25X20 CL10.9 W/2353
-
198409-036 SCREW, CAP-HFH M10X1.25X35 CL10.9 W/2353SCREW, CAP-HFH M10X1.25X35 CL10.9 W/2353
-
200608-496 MOUNT, ENGINEMOUNT, ENGINE
-
211623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
221623-944 SCREW, SHOULDERSCREW, SHOULDER
-
238409-017 SCREW, CAPSCREW, CAP
-
240708-587 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
258427-002 NUT, LOCKNUT, LOCK
-
268468-617 SCREW, MACHINESCREW, MACHINE
-
278050-242 WASHER, FLATWASHER, FLAT
-
281623-932 SCREW, CAPSCREW, CAP
-
290623-987 WASHER, BELLVILE - 0.312 X 0.930WASHER, BELLVILE - 0.312 X 0.930
-
300708-622 BRACKET, ENGINE MOUNTING - PTO-SIDE - ASSEMBLYBRACKET, ENGINE MOUNTING - PTO-SIDE - ASSEMBLY
-
311623-937 SCREW, CAPSCREW, CAP
-
320746-435 CLUTCH,DRIVE-UNCAL-8.25 33MM/SCLUTCH,DRIVE-UNCAL-8.25 33MM/S
-
330627-083 BELT, DRIVE DCVS S3C-S 36.8W X 1207OCBELT, DRIVE DCVS S3C-S 36.8W X 1207OC
-
341623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
351623-792 BOLT, CLUTCHBOLT, CLUTCH
