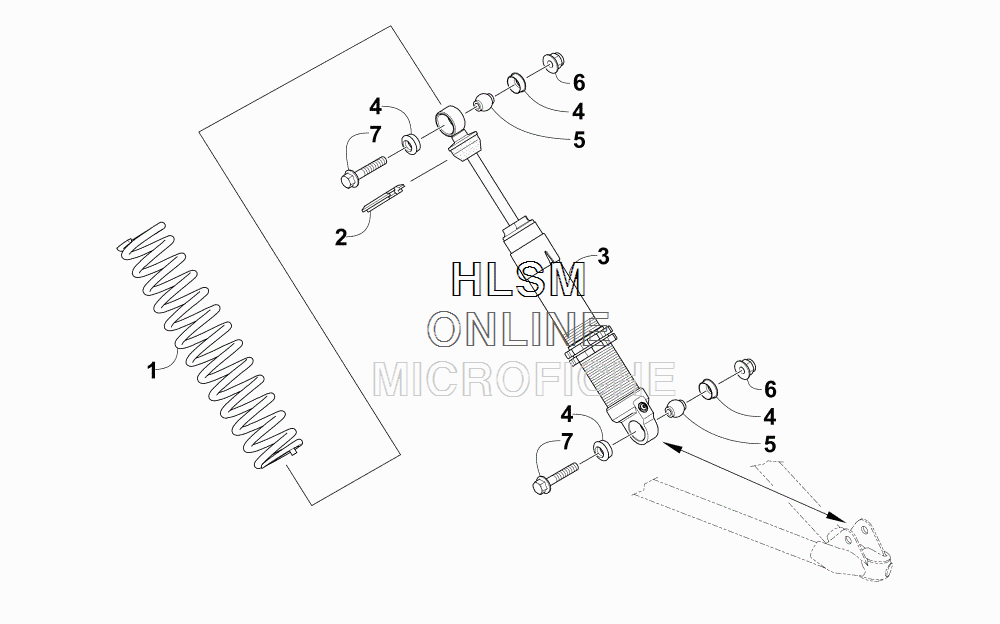

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat M 6000 ES 153 (GREEN) [S2015M6DESUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12703-861 SPRING,SHOCK-95 LB X 13"-PTD - WHITESPRING,SHOCK-95 LB X 13"-PTD - WHITE
-
23604-200 RETAINER, SPRINGRETAINER, SPRING
-
33703-468 SHOCK, SKI 436.27MMSHOCK, SKI 436.27MM
-
43603-260 BUSHINGBUSHING
-
53603-261 SLEEVESLEEVE
-
68437-804 NUT, LOCKNUT, LOCK
-
78413-850 SCREW, CAPSCREW, CAP
