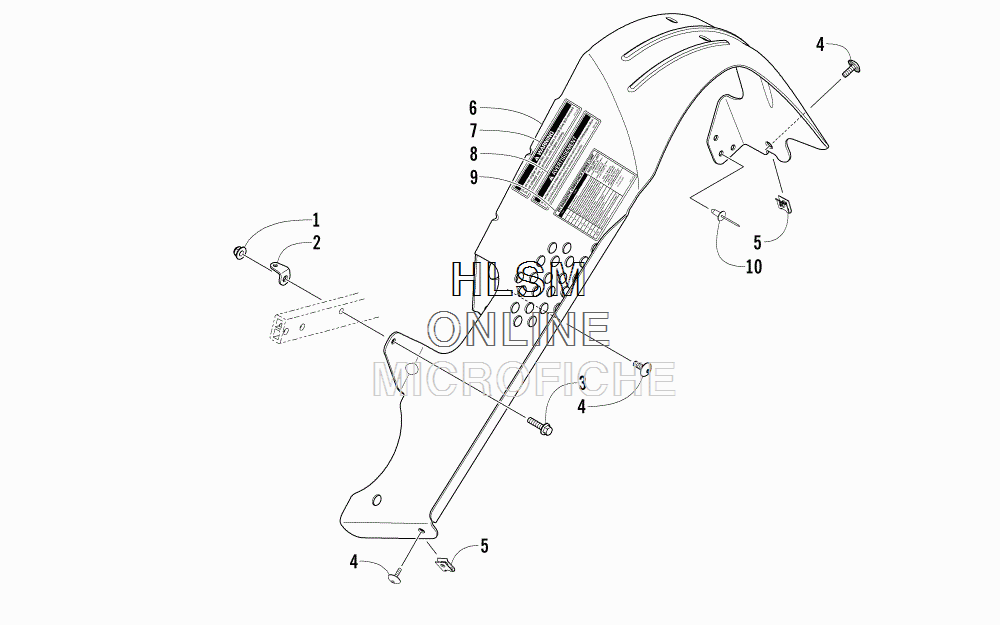

BELT GUARD ASSEMBLY для Arctic Cat M 8000 153 (INTERNATIONAL) (GREEN) [S2015M8HE3OSG] - 2015 года выпуска
-
№АртикулНазвание
-
18427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & YNUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
-
22612-707 TAB, SPRINGTAB, SPRING
-
38408-525 SCREW,CAP-HFH M5X0.8X25 CL8.8 Z & YSCREW,CAP-HFH M5X0.8X25 CL8.8 Z & Y
-
40623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GPSCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
-
51623-052 CLIP, U-NUTCLIP, U-NUT
-
62707-275 GUARD, BELT (INC. 7-8)GUARD, BELT (INC. 7-8)
-
79611-690 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
89611-691 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
99611-743 DECAL, EFI DIAGNOSTIC CODESDECAL, EFI DIAGNOSTIC CODES
-
108060-686 RIVET,BLIND-DH SS64 ZINCRIVET,BLIND-DH SS64 ZINC
