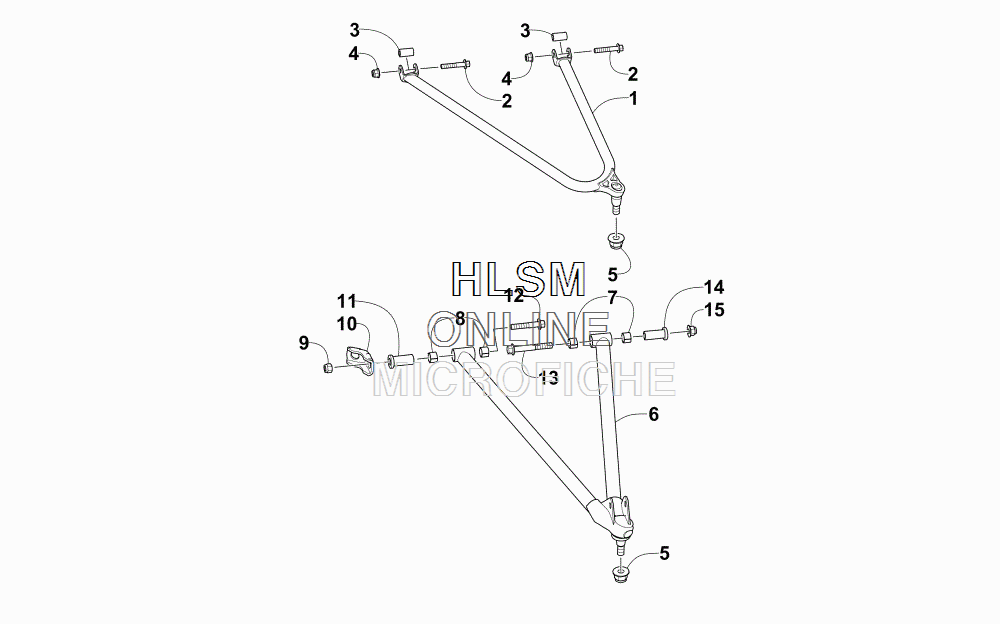

A-ARM ASSEMBLY для Arctic Cat M 8000 SNO PRO 153 (ORANGE) [S2015M8HSPUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13703-150 A-ARM, UPPER - RIGHT - BLACKA-ARM, UPPER - RIGHT - BLACK
-
13703-151 A-ARM, UPPER - LEFT - BLACKA-ARM, UPPER - LEFT - BLACK
-
28413-645 SCREW, CAPSCREW, CAP
-
33603-258 AXLEAXLE
-
48437-604 NUT, LOCKNUT, LOCK
-
58427-202 NUT, LOCKNUT, LOCK
-
63703-152 A-ARM, LOWER - RIGHT - BLACK (INC. 7-8)A-ARM, LOWER - RIGHT - BLACK (INC. 7-8)
-
63703-153 A-ARM, LOWER - LEFT - BLACK (INC. 7-8)A-ARM, LOWER - LEFT - BLACK (INC. 7-8)
-
71603-895 ...BEARING, 10DU10...BEARING, 10DU10
-
82603-911 ...BEARING,SPLIT-18 X 20 X 15...BEARING,SPLIT-18 X 20 X 15
-
91623-965 NUT, LOCKNUT, LOCK
-
102603-909 BRACE, LOWER A-ARM - FRONTBRACE, LOWER A-ARM - FRONT
-
112603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
121623-953 SCREW, CAPSCREW, CAP
-
138409-075 SCREW, CAPSCREW, CAP
-
143603-259 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
158427-002 NUT, LOCKNUT, LOCK
