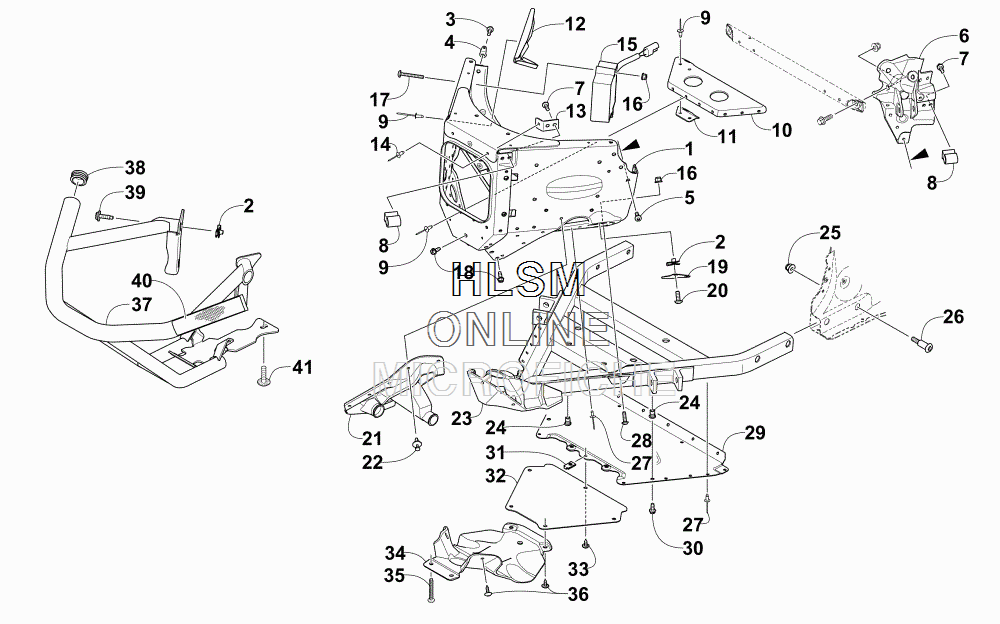

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 162 (GREEN) [S2015M8HPEUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12707-483 PANEL,FRT-ASSY 8MM 8000-PTD BLK (INC. 2-6)PANEL,FRT-ASSY 8MM 8000-PTD BLK (INC. 2-6)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, TAPTITE-TSPNH M6 X 1 X 20 Z & B...SCREW, TAPTITE-TSPNH M6 X 1 X 20 Z & B
-
42612-707 ...TAB, SPRING...TAB, SPRING
-
50423-538 ...SCREW, TAPTITE-TSPNH M6 X 1 X 16 Z & B...SCREW, TAPTITE-TSPNH M6 X 1 X 16 Z & B
-
62707-304 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
62707-305 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
78413-617 SCREW, CAP-HFH M6X1.0X16 CL10.9 W/2353SCREW, CAP-HFH M6X1.0X16 CL10.9 W/2353
-
81607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
98060-706 RIVET, BLIND-DH SS64 BLKRIVET, BLIND-DH SS64 BLK
-
101607-565 BRACKET, REINFORCEMENT LOWERBRACKET, REINFORCEMENT LOWER
-
111607-566 BRACE, STEERING POST LOWERBRACE, STEERING POST LOWER
-
120607-991 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
131607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
141623-241 RIVET, 3/16 HUCK-M6RIVET, 3/16 HUCK-M6
-
150630-323 REGULATOR/RECTIFIERREGULATOR/RECTIFIER
-
168427-602 NUT, LOCKNUT, LOCK
-
178477-650 SCREW, MACH-TSTRH M6X1.0X50 Z & BLKSCREW, MACH-TSTRH M6X1.0X50 Z & BLK
-
181623-959 SCREW, SELF TAP 1/4-20X5/8 TYPE F BLKSCREW, SELF TAP 1/4-20X5/8 TYPE F BLK
-
191707-568 PANEL, CLOSE-OFFPANEL, CLOSE-OFF
-
208471-616 SCREW, MACH-TSPNH M6X1.0X16 CL8.8 Z & BLKSCREW, MACH-TSPNH M6X1.0X16 CL8.8 Z & BLK
-
211605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
211605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
220623-362 RIVET, PLASTIC-REINSTALLABLERIVET, PLASTIC-REINSTALLABLE
-
231707-865 FRAME, FRONT - LOWER - BLACKFRAME, FRONT - LOWER - BLACK
-
241623-797 INSERTINSERT
-
258427-802 NUT, LOCKNUT, LOCK
-
261623-817 SCREW, SHOULDER-HSTRH M8 X 1.25 X 44.16SCREW, SHOULDER-HSTRH M8 X 1.25 X 44.16
-
278060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
288468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
290607-983 BELLY PAN - CENTERBELLY PAN - CENTER
-
308476-520 SCREW, MACH-TSTRH M5X0.8X20 Z & YSCREW, MACH-TSTRH M5X0.8X20 Z & Y
-
311623-052 CLIP, U-NUTCLIP, U-NUT
-
321607-063 PANEL, ACCESSPANEL, ACCESS
-
331623-129 SCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
346606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
351623-929 SCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & BSCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & B
-
360623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
372707-229 BUMPER, FRONT - ASSEMBLY - GREENBUMPER, FRONT - ASSEMBLY - GREEN
-
382623-087 PLUGPLUG
-
390423-609 SCREW, MACHINESCREW, MACHINE
-
402621-210 DECAL, REFLECTOR - AMBERDECAL, REFLECTOR - AMBER
-
411623-031 SCREW, SELF TAP-TSTRH #10-12X1.00SCREW, SELF TAP-TSTRH #10-12X1.00
