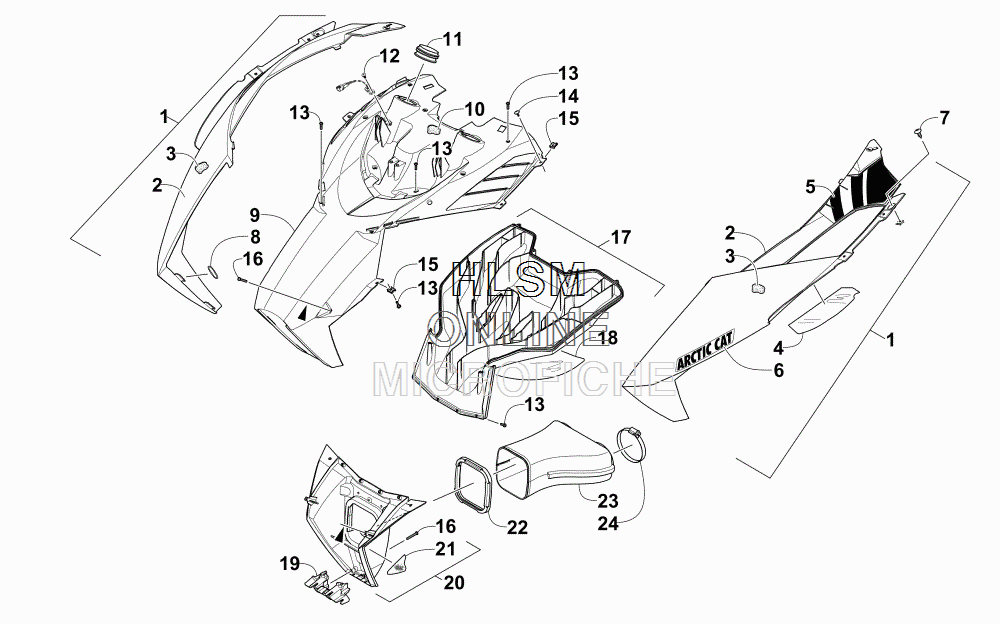

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 162 (GREEN) [S2015M8HPEUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-202 HOOD W/ DECALS - RIGHT - WHITE (INC. 2-3 AND 5-6)HOOD W/ DECALS - RIGHT - WHITE (INC. 2-3 AND 5-6)
-
23718-612 ...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
51621-648 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
14718-203 HOOD W/ DECALS - LEFT - WHITE (INC. 2-6)HOOD W/ DECALS - LEFT - WHITE (INC. 2-6)
-
23718-613 ...HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)...HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
51621-649 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
60621-732 ...DECAL, HOOD - "ARCTIC CAT"...DECAL, HOOD - "ARCTIC CAT"
-
70623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81623-960 O-RINGO-RING
-
95706-356 PLENUM, INTAKE-UPPER W/FOAM (INC. 10)PLENUM, INTAKE-UPPER W/FOAM (INC. 10)
-
100617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
116606-386 BOOT, INTAKEBOOT, INTAKE
-
120623-165 CLIP, X-MAS TREE-5/32CLIP, X-MAS TREE-5/32
-
131623-933 SCREW, PLASTITE-TXSPNH 10-14X3/4 Z & BSCREW, PLASTITE-TXSPNH 10-14X3/4 Z & B
-
140623-797 SCREW, SELF TAP-TSTH 10-12X1/2 WO/GPSCREW, SELF TAP-TSTH 10-12X1/2 WO/GP
-
151623-939 CLIP, U-NUTCLIP, U-NUT
-
161623-929 SCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & BSCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & B
-
175706-358 PLENUM, INTAKE-LOWER REAR W/FOIL (INC. 18)PLENUM, INTAKE-LOWER REAR W/FOIL (INC. 18)
-
186606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
196606-822 RETAINER, PLENUM LOWERRETAINER, PLENUM LOWER
-
205706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
-
210621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
220617-624 ADAPTER, BOOTADAPTER, BOOT
-
232670-328 BOOT,EXTENSION-EFI ASSYBOOT,EXTENSION-EFI ASSY
-
240423-018 CLAMP, HOSECLAMP, HOSE
