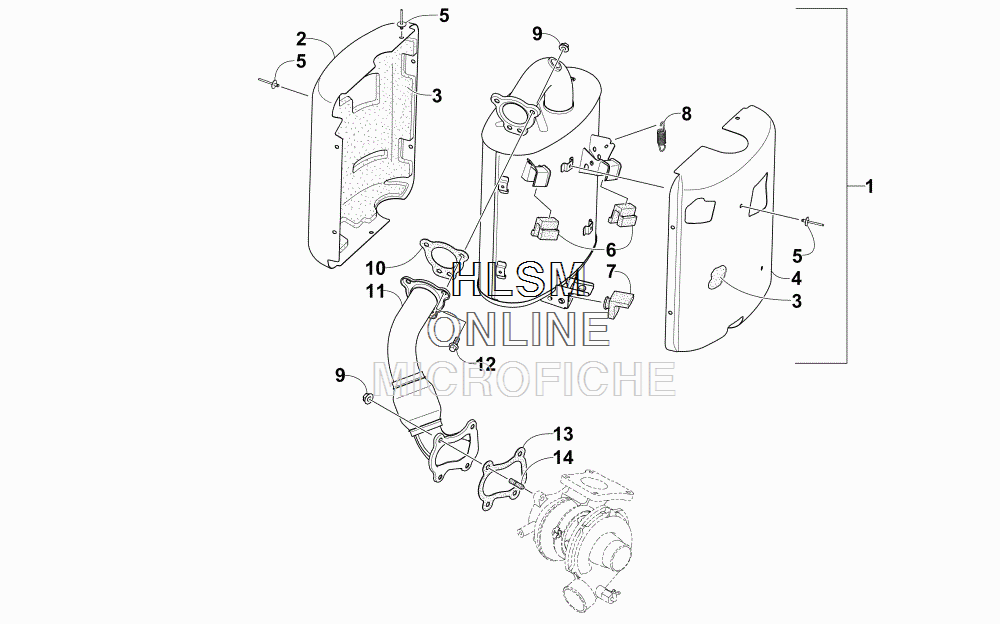

EXHAUST ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11712-760 RESONATOR ASSEMBLY (INC. 2-5)RESONATOR ASSEMBLY (INC. 2-5)
-
22612-650 ...SHIELD, HEAT - RIGHT...SHIELD, HEAT - RIGHT
-
32612-648 ...PACKING, RESONATOR...PACKING, RESONATOR
-
42612-651 ...SHIELD, HEAT - LEFT...SHIELD, HEAT - LEFT
-
51623-799 ...RIVET,BLIND-LF SD61BSLF ZINC...RIVET,BLIND-LF SD61BSLF ZINC
-
62612-893 GROMMET, RUBBER - UPPERGROMMET, RUBBER - UPPER
-
72612-706 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
80612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
91623-912 NUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMPNUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMP
-
102612-663 GASKET, EXHAUSTGASKET, EXHAUST
-
111712-698 PIPE, EXHAUST MANIFOLD,EXHAUST-TURBO-WELD'TPIPE, EXHAUST MANIFOLD,EXHAUST-TURBO-WELD'T
-
121623-918 SCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMPSCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMP
-
132612-701 GASKET,EXHAUST MANIFOLD-TURBOGASKET,EXHAUST MANIFOLD-TURBO
-
141623-954 STUD,M8X1.25-EXHAUST MANIFOLDSTUD,M8X1.25-EXHAUST MANIFOLD
