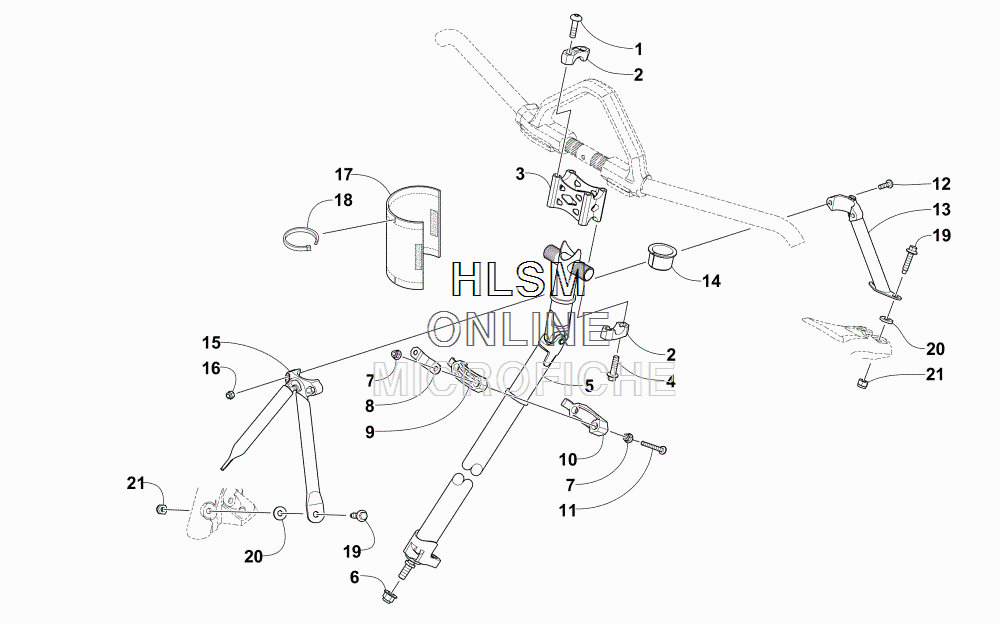

STEERING POST ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска
-
№АртикулНазвание
-
18477-830 SCREW,MACH-TSTRH M8X1.25X30 Z & (BLACK)SCREW,MACH-TSTRH M8X1.25X30 Z & (BLACK)
-
21705-461 CAP, RISER BLOCK - (BLACK)CAP, RISER BLOCK - (BLACK)
-
31705-454 BLOCK, RISER - (BLACK)BLOCK, RISER - (BLACK)
-
48408-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
-
51705-435 POST, STEERINGPOST, STEERING
-
62623-076 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
78427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
80605-998 PLATE,RETAINING-STEERING POSTPLATE,RETAINING-STEERING POST
-
91605-127 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
101605-128 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
112623-079 SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z & YSCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z & Y
-
128468-635 SCREW,MACH-TSPNH M6X1.0X35 CL8.8 (BLACK)SCREW,MACH-TSPNH M6X1.0X35 CL8.8 (BLACK)
-
131705-441 SUPPORT, STEERING POST - REARSUPPORT, STEERING POST - REAR
-
141705-447 BUSHING BEARING,MTG-STEERING POST-MACHBUSHING BEARING,MTG-STEERING POST-MACH
-
151705-440 SUPPORT, STEERING POST - FRONTSUPPORT, STEERING POST - FRONT
-
168422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & YNUT,HEX-THK NYL M6X1.00 CL8 Z & Y
-
171705-455 WRAP, STEERING POSTWRAP, STEERING POST
-
180123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
191623-982 SCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPTSCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
-
201623-968 WASHER, ALUM- 8.25MMX 20MMX 3MM THKWASHER, ALUM- 8.25MMX 20MMX 3MM THK
-
218422-802 NUT,HEX-THK NYL M8X1.25 CL8 Z & YNUT,HEX-THK NYL M8X1.25 CL8 Z & Y
