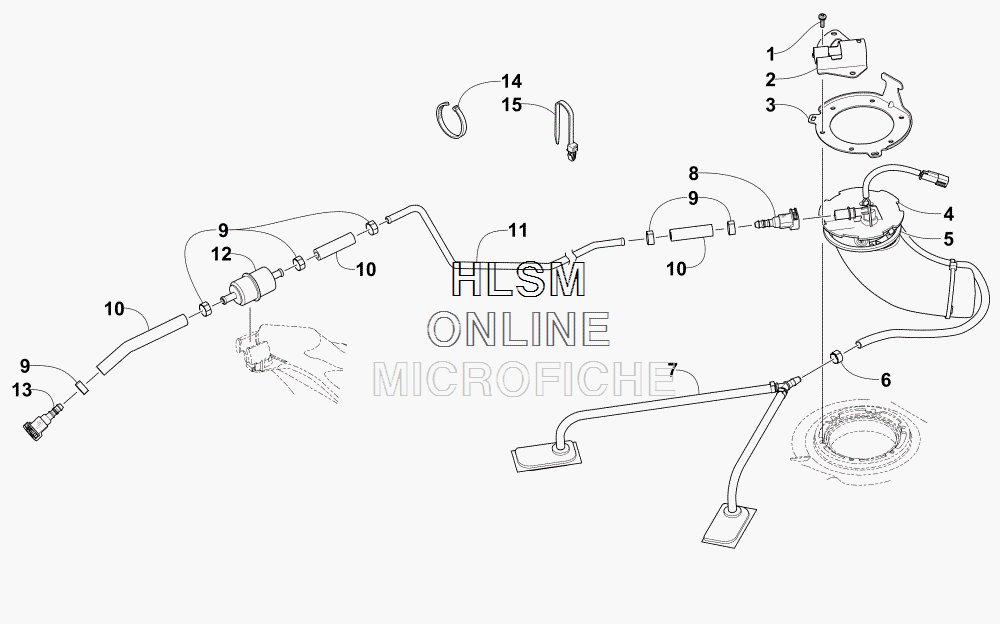

FUEL PUMP ASSEMBLY для Arctic Cat PANTERA 7000 LTD (BLACK) [S2015PTULXUSB] - 2015 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW,TSPH-THRD FORM M5X0.8X20MM SEMSSCREW,TSPH-THRD FORM M5X0.8X20MM SEMS
-
22670-467 PROTECTOR, FUEL PUMPPROTECTOR, FUEL PUMP
-
32670-395 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
42670-361 PUMP, FUEL - ASSEMBLYPUMP, FUEL - ASSEMBLY
-
50470-838 SEAL,FUEL-PUMPSEAL,FUEL-PUMP
-
61623-655 CLAMP,HOSE-CRIMP-11.3CLAMP,HOSE-CRIMP-11.3
-
72670-278 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
82670-141 FITTING,QUICK CONNECTORFITTING,QUICK CONNECTOR
-
90610-563 CLAMP, HOSE-13.2MM-15.7MMCLAMP, HOSE-13.2MM-15.7MM
-
100610-971 HOSE, FUEL - IN TANK - 10 FTHOSE, FUEL - IN TANK - 10 FT
-
112670-446 FUEL LINE,STEEL-TANKFUEL LINE,STEEL-TANK
-
121670-825 FILTER, FUELFILTER, FUEL
-
132670-341 FITTING,QUICK CONNECT-STRAIGHTFITTING,QUICK CONNECT-STRAIGHT
-
140123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
140623-751 TIE, CABLE - REUSABLETIE, CABLE - REUSABLE
-
150623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
