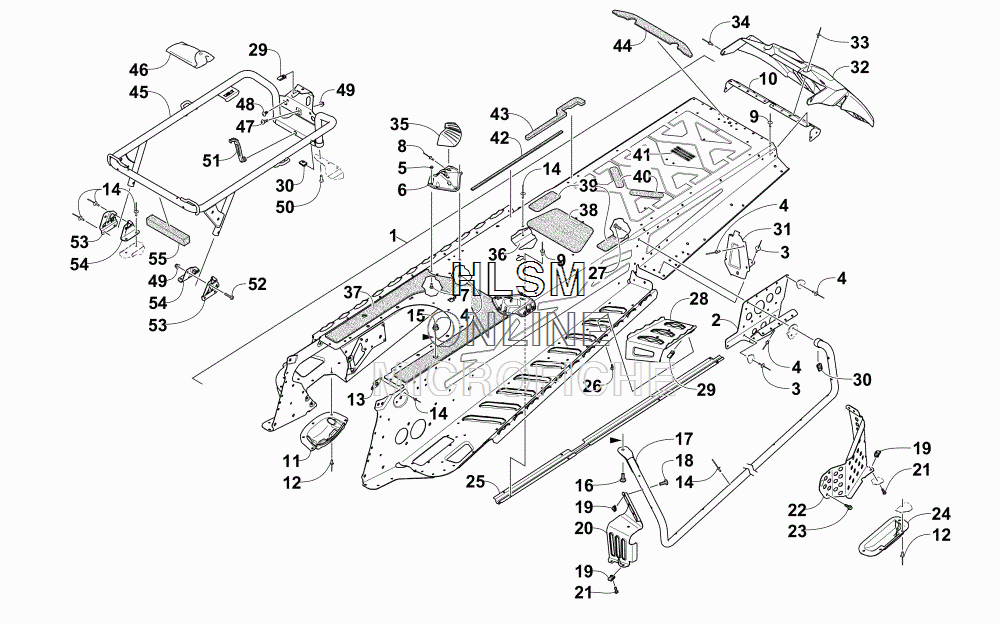

TUNNEL AND REAR RACK ASSEMBLY для Arctic Cat PANTERA 7000 LTD (BLACK) [S2015PTULXUSB] - 2015 года выпуска
-
№АртикулНазвание
-
-2707-451 COMPLETE CHASSIS ASSEMBLY - (BLACK)COMPLETE CHASSIS ASSEMBLY - (BLACK)
-
12707-634 TUNNEL ASSEMBLY - (BLACK) (INC. 2-10)TUNNEL ASSEMBLY - (BLACK) (INC. 2-10)
-
22707-090 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)...BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
-
22707-091 ...BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)...BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
-
38060-686 ...RIVET,BLIND-DH SS64 ZINC...RIVET,BLIND-DH SS64 ZINC
-
41623-241 ...RIVET,3/16 HUCK-M6...RIVET,3/16 HUCK-M6
-
58422-502 ...NUT, M5 X 1 NYL Z & Y...NUT, M5 X 1 NYL Z & Y
-
61707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
-
61707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
-
78476-512 ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
-
81623-257 ...RIVET,3/16 HUCK-M5...RIVET,3/16 HUCK-M5
-
98060-504 ...RIVET,BLIND-DH SS53 (BLACK)...RIVET,BLIND-DH SS53 (BLACK)
-
102707-633 ...END CAP, TUNNEL - (BLACK)...END CAP, TUNNEL - (BLACK)
-
111607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
128061-708 RIVET, BLIND-LF SS66 (BLACK)RIVET, BLIND-LF SS66 (BLACK)
-
130608-631 PLATE, RETAININGPLATE, RETAINING
-
148060-706 RIVET,BLIND-DH SS64 (BLACK)RIVET,BLIND-DH SS64 (BLACK)
-
158427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
168476-820 SCREW,MACH-TSTRH M8X1.25X20 Z & YSCREW,MACH-TSTRH M8X1.25X20 Z & Y
-
171707-602 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
171707-603 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
188468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - (BLACK)FOOTREST - RIGHT - (BLACK)
-
201707-557 FOOTREST - LEFT - (BLACK)FOOTREST - LEFT - (BLACK)
-
218470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
-
221707-955 SHIELD, BRAKE DISC - (BLACK)SHIELD, BRAKE DISC - (BLACK)
-
238408-613 SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
250630-301 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
261623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
278477-620 SCREW,MACH-TSTRH M6X1.0X20 Z & (BLACK)SCREW,MACH-TSTRH M6X1.0X20 Z & (BLACK)
-
281707-878 FOOTREST, PASSENGER - RIGHT - (BLACK)FOOTREST, PASSENGER - RIGHT - (BLACK)
-
281707-879 FOOTREST, PASSENGER - LEFT - (BLACK)FOOTREST, PASSENGER - LEFT - (BLACK)
-
291623-030 CLIP, U-NUTCLIP, U-NUT
-
300423-577 CLIP, U-NUTCLIP, U-NUT
-
312707-636 CLOSE OFF, RUNNING BOARD - RIGHT - (BLACK)CLOSE OFF, RUNNING BOARD - RIGHT - (BLACK)
-
312707-637 CLOSE OFF, RUNNING BOARD - LEFT - (BLACK)CLOSE OFF, RUNNING BOARD - LEFT - (BLACK)
-
326606-486 SNOWFLAPSNOWFLAP
-
338061-706 RIVET,BLIND-LF SS64 (BLACK)RIVET,BLIND-LF SS64 (BLACK)
-
348061-506 RIVET,BLIND-LF SS54 (BLACK)RIVET,BLIND-LF SS54 (BLACK)
-
356606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
356606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
361607-459 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
370617-750 PAD, FUEL TANK - FRONTPAD, FUEL TANK - FRONT
-
386606-935 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
396606-877 PAD, AUXILIARY TANK - FRONTPAD, AUXILIARY TANK - FRONT
-
406606-878 PAD, AUXILIARY TANK - REARPAD, AUXILIARY TANK - REAR
-
412621-316 DECAL, CAPACITY - STORAGE BOXDECAL, CAPACITY - STORAGE BOX
-
420617-743 FOAM, SIDE PANELFOAM, SIDE PANEL
-
430617-748 FOAM, RACK - RIGHTFOAM, RACK - RIGHT
-
430617-749 FOAM, RACK - LEFTFOAM, RACK - LEFT
-
440617-744 FOAM, FASCIA - REARFOAM, FASCIA - REAR
-
455706-635 RACK, REAR - (BLACK)RACK, REAR - (BLACK)
-
460744-064 KIT,TOOL BAG-4 STROKE-ASSEMBLYKIT,TOOL BAG-4 STROKE-ASSEMBLY
-
470423-356 SCREW, SHOULDER-M6-1.0 X 22 RIE (BLACK)SCREW, SHOULDER-M6-1.0 X 22 RIE (BLACK)
-
482623-017 SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW-RIE BLSCREW,SELF-TAP-TSTRH-M6X12-BOSCRW-RIE BL
-
498427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
502623-059 SCREW,MACH-TSPNH M6X1X16 MPT Z & Y-W/2353SCREW,MACH-TSPNH M6X1X16 MPT Z & Y-W/2353
-
516606-392 STRAP,HOLD-DOWN-RUBBERSTRAP,HOLD-DOWN-RUBBER
-
528468-635 SCREW,MACH-TSPNH M6X1.0X35 CL8.8 (BLACK)SCREW,MACH-TSPNH M6X1.0X35 CL8.8 (BLACK)
-
535706-450 BRACKET, MOUNTING - RACK - OUTER - RIGHT - (BLACK)BRACKET, MOUNTING - RACK - OUTER - RIGHT - (BLACK)
-
535706-451 BRACKET, MOUNTING - RACK - OUTER - LEFT - (BLACK)BRACKET, MOUNTING - RACK - OUTER - LEFT - (BLACK)
-
545706-448 BRACKET, MOUNTING - RACK - INNER - RIGHT - (BLACK)BRACKET, MOUNTING - RACK - INNER - RIGHT - (BLACK)
-
545706-449 BRACKET, MOUNTING - RACK - INNER - LEFT - (BLACK)BRACKET, MOUNTING - RACK - INNER - LEFT - (BLACK)
-
550617-745 FOAM, RACK - FRONTFOAM, RACK - FRONT
