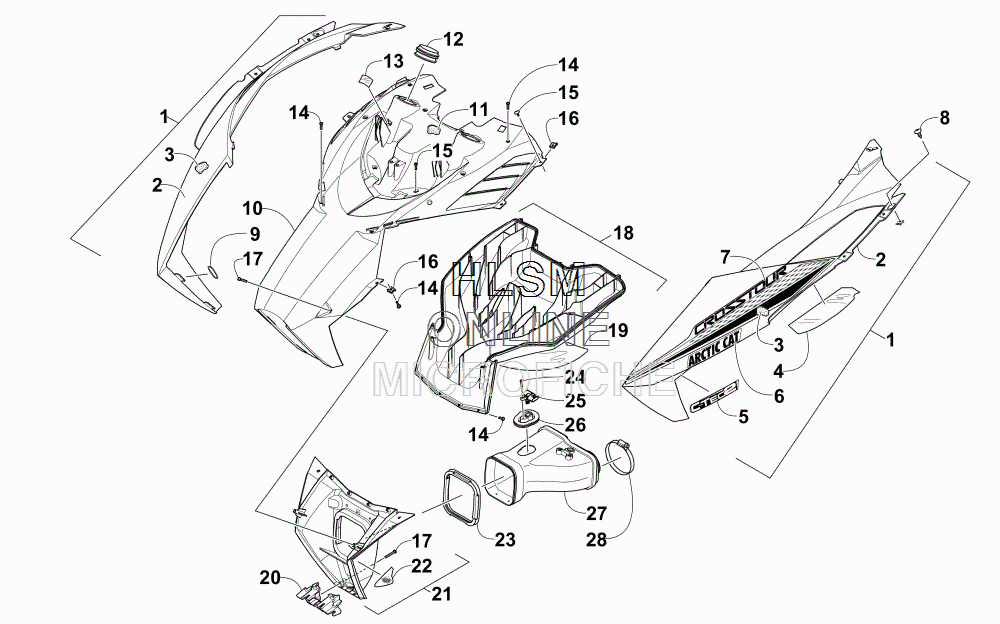

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat XF 6000 CROSS-TOUR 141 (INTERNATIONAL) (ORANGE) [S2015X6DCTOSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-356 HOOD W/DECALS - RIGHT - ORANGE (INC. 2-3, ONE NO. 5, ONE NO. 6, AND 7)HOOD W/DECALS - RIGHT - ORANGE (INC. 2-3, ONE NO. 5, ONE NO. 6, AND 7)
-
23718-590 ...HOOD W/O DECALS - RIGHT - ORANGE (INC. 3)...HOOD W/O DECALS - RIGHT - ORANGE (INC. 3)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
71621-552 DECAL, HOOD - RIGHTDECAL, HOOD - RIGHT
-
14718-357 HOOD W/DECALS - LEFT - ORANGE (INC. 2-4, ONE NO. 5, ONE NO. 6, AND 7)HOOD W/DECALS - LEFT - ORANGE (INC. 2-4, ONE NO. 5, ONE NO. 6, AND 7)
-
23718-591 ...HOOD W/O DECALS - LEFT - ORANGE (INC. 3-4)...HOOD W/O DECALS - LEFT - ORANGE (INC. 3-4)
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50621-906 ...DECAL, HOOD - "C-TEC"...DECAL, HOOD - "C-TEC"
-
60621-754 ...DECAL, HOOD - "ARCTIC CAT"...DECAL, HOOD - "ARCTIC CAT"
-
71621-553 DECAL, HOOD - LEFTDECAL, HOOD - LEFT
-
80623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
91623-960 O-RINGO-RING
-
105706-356 PLENUM, INTAKE - UPPER (INC. 11)PLENUM, INTAKE - UPPER (INC. 11)
-
110617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
126606-386 BOOT, INTAKEBOOT, INTAKE
-
132606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
141623-933 SCREW, PLASTITE-TXSPNH 10-14X3/4 Z & BSCREW, PLASTITE-TXSPNH 10-14X3/4 Z & B
-
150623-797 SCREW, SELF TAP-TSTH 10-12X1/2 WO/GPSCREW, SELF TAP-TSTH 10-12X1/2 WO/GP
-
161623-939 CLIP, U-NUTCLIP, U-NUT
-
171623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
185706-358 PLENUM, INTAKE - LOWER REAR (INC. 19)PLENUM, INTAKE - LOWER REAR (INC. 19)
-
196606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
206606-822 RETAINER, PLENUMRETAINER, PLENUM
-
215706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
-
220621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
230617-624 ADAPTER, BOOTADAPTER, BOOT
-
242623-016 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250824-052 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
262670-444 BOOTBOOT
-
271770-056 BOOT, INTAKEBOOT, INTAKE
-
280423-018 CLAMP, HOSECLAMP, HOSE
