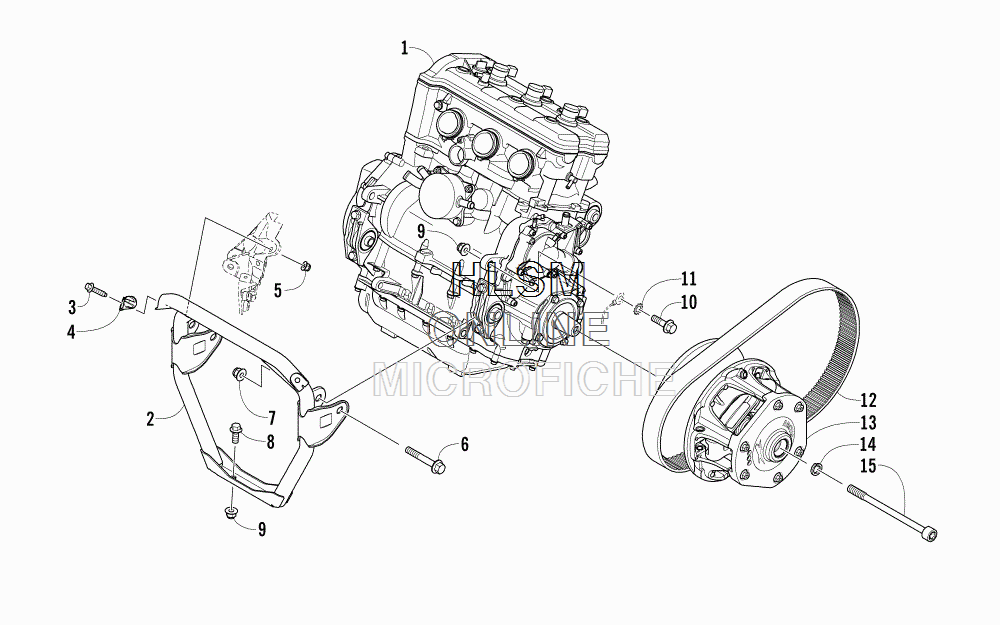

ENGINE AND RELATED PARTS для Arctic Cat XF 7000 CROSS-TOUR 141 (INTERNATIONAL) (ORANGE) [S2015X7UCTOSO] - 2015 года выпуска
-
№АртикулНазвание
-
10662-611 ENGINE, Z3ENGINE, Z3
-
20708-591 BRACKET, ENGINE MOUNTING - FRONTBRACKET, ENGINE MOUNTING - FRONT
-
38408-830 SCREW, CAPSCREW, CAP
-
41607-002 INSERTINSERT
-
58427-802 NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
68413-275 SCREW, CAP-HFH M12X1.25X75 CL10.9 SILVSCREW, CAP-HFH M12X1.25X75 CL10.9 SILV
-
78427-202 NUT, HEX FLG-NYL LOCK M12X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M12X1.25 CL8 Z & Y
-
88408-025 SCREW, CAP-HFH M10X1.25X25 CL8.8 Z & YSCREW, CAP-HFH M10X1.25X25 CL8.8 Z & Y
-
98427-002 NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
108408-030 SCREW, CAP-HFH M10X1.25X30 CL8.8 Z & YSCREW, CAP-HFH M10X1.25X30 CL8.8 Z & Y
-
118053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
120627-070 BELT, DRIVE-PBO 1.448"W X 44.25" OC-DCBELT, DRIVE-PBO 1.448"W X 44.25" OC-DC
-
130746-273 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
140623-210 WASHER, LOCK-1/2" HI-COLLARWASHER, LOCK-1/2" HI-COLLAR
-
150623-804 BOLT, CLUTCHBOLT, CLUTCH
