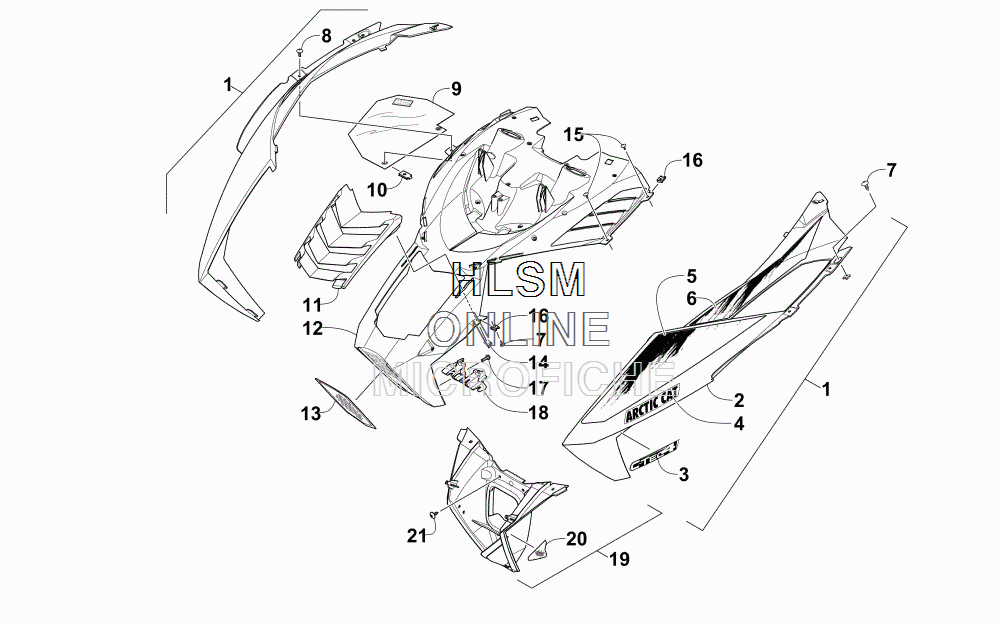

HOOD ASSEMBLY для Arctic Cat XF 7000 SNO PRO 137 (GREEN) [S2015XFUSPUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-378 HOOD W/ DECALS - RIGHT - (WHITE) (INC. 2-6)HOOD W/ DECALS - RIGHT - (WHITE) (INC. 2-6)
-
14718-379 HOOD W/ DECALS - LEFT - (WHITE) (INC. 2-6)HOOD W/ DECALS - LEFT - (WHITE) (INC. 2-6)
-
26606-324 ...HOOD W/O DECALS - RIGHT - (WHITE)...HOOD W/O DECALS - RIGHT - (WHITE)
-
26606-325 ...HOOD W/O DECALS - LEFT - (WHITE)...HOOD W/O DECALS - LEFT - (WHITE)
-
30621-993 ...DECAL, HOOD - "C-TEC"...DECAL, HOOD - "C-TEC"
-
40621-732 ...DECAL, HOOD - "ARCTIC CAT"...DECAL, HOOD - "ARCTIC CAT"
-
51621-497 ...DECAL, HOOD - FRONT LEFT...DECAL, HOOD - FRONT LEFT
-
51621-496 ...DECAL, HOOD - FRONT RIGHT...DECAL, HOOD - FRONT RIGHT
-
61621-499 ...DECAL, HOOD - REAR LEFT...DECAL, HOOD - REAR LEFT
-
61621-498 ...DECAL, HOOD - REAR RIGHT...DECAL, HOOD - REAR RIGHT
-
70623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
81623-031 SCREW,SELF TAP-TSTRH #10-12X1.00SCREW,SELF TAP-TSTRH #10-12X1.00
-
91712-899 SHIELD, HEAT - RIGHTSHIELD, HEAT - RIGHT
-
101623-030 CLIP, U-NUTCLIP, U-NUT
-
116606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
126606-510 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
130608-696 SCREEN, VENTSCREEN, VENT
-
141623-694 CLIP, RETAININGCLIP, RETAINING
-
150623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GPSCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
-
161623-939 NUT,SPEED-#10 B "U" TYPENUT,SPEED-#10 B "U" TYPE
-
171623-933 SCREW,PLASTITE-TXSPNH 10-14X3/4 Z & BSCREW,PLASTITE-TXSPNH 10-14X3/4 Z & B
-
186606-822 RETAINER, PLENUMRETAINER, PLENUM
-
195706-992 PLENUM, INTAKE - LOWER FRONT (INC. 20)PLENUM, INTAKE - LOWER FRONT (INC. 20)
-
200621-989 ...DECAL, REFLECTOR - (AMBER)...DECAL, REFLECTOR - (AMBER)
-
211623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
