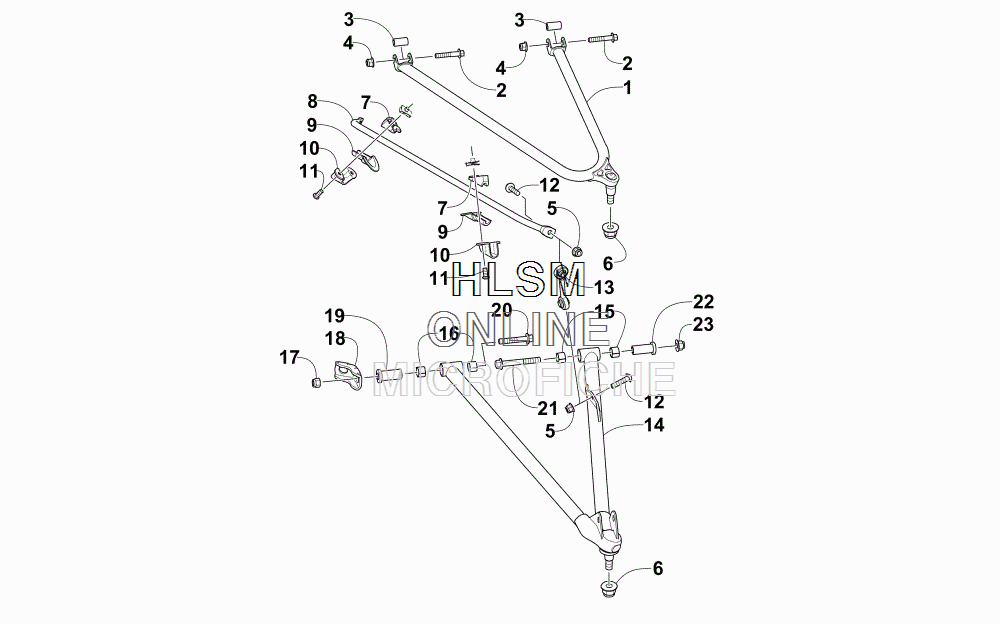

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD 141 (ORANGE) [S2015X8HHCUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13703-352 ARM, UPPER-RH 40"-PTD - WHITEARM, UPPER-RH 40"-PTD - WHITE
-
13703-353 ARM, UPPER-LH 40"-PTD - WHITEARM, UPPER-LH 40"-PTD - WHITE
-
28413-645 SCREW, CAPSCREW, CAP
-
33603-258 AXLEAXLE
-
48437-604 NUT, HEX FLG-NYL LOCK M6X1.0 CL10 SILVNUT, HEX FLG-NYL LOCK M6X1.0 CL10 SILV
-
58427-802 NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
68427-202 NUT, HEX FLG-NYL LOCK M12X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M12X1.25 CL8 Z & Y
-
72603-944 BUSHING, SWAYBAR-11.1MM-INNERBUSHING, SWAYBAR-11.1MM-INNER
-
82703-615 SWAYBAR, FORMED-11.1MM-PTD BLKSWAYBAR, FORMED-11.1MM-PTD BLK
-
92603-945 BUSHING, SWAYBAR-11.1MM-OUTERBUSHING, SWAYBAR-11.1MM-OUTER
-
102603-857 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
118468-621 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 W/2353SCREW, MACH-TSPNH M6X1.0X20 CL8.8 W/2353
-
128476-835 SCREW, MACH-TSTRH M8X1.25X35 Z & YSCREW, MACH-TSTRH M8X1.25X35 Z & Y
-
133603-295 LINK, SWAY BARLINK, SWAY BAR
-
143703-328 A-ARM, LOWER RIGHT - WHITE (INC. 15-16)A-ARM, LOWER RIGHT - WHITE (INC. 15-16)
-
143703-329 A-ARM, LOWER LEFT - WHITE (INC. 15-16)A-ARM, LOWER LEFT - WHITE (INC. 15-16)
-
151603-895 ...BEARING, 10DU10-FRONT SUSPENSION...BEARING, 10DU10-FRONT SUSPENSION
-
162603-911 ...BEARING, SPLIT-18 X 20 X 15...BEARING, SPLIT-18 X 20 X 15
-
171623-965 NUT, LOCKNUT, LOCK
-
182603-909 BRACE, LOWER A-ARM - FRONTBRACE, LOWER A-ARM - FRONT
-
192603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
201623-953 SCREW, CAP-HFH M12X1.25X76 CL 10.9 MZSCREW, CAP-HFH M12X1.25X76 CL 10.9 MZ
-
218409-075 SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y
-
222603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
238427-002 NUT, LOCKNUT, LOCK
