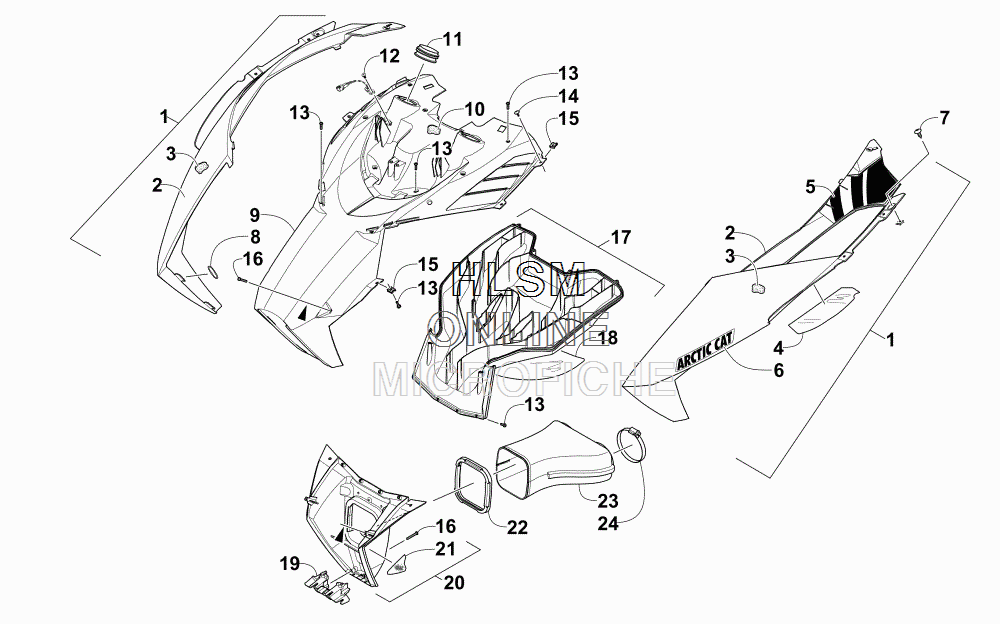

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD 141 (ORANGE) [S2015X8HHCUSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-182 HOOD W/DECALS - RIGHT - WHITE (INC. 2-3, 5, AND ONE NO. 6)HOOD W/DECALS - RIGHT - WHITE (INC. 2-3, 5, AND ONE NO. 6)
-
23718-612 ...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
51621-600 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
60621-732 ...DECAL, HOOD - "ARCTIC CAT"...DECAL, HOOD - "ARCTIC CAT"
-
14718-183 HOOD W/DECALS - LEFT - WHITE (INC. 2-5 AND ONE NO. 6)HOOD W/DECALS - LEFT - WHITE (INC. 2-5 AND ONE NO. 6)
-
23718-613 HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)
-
30617-647 FOAM, HOOD - LEFTFOAM, HOOD - LEFT
-
46606-407 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
51621-601 DECAL, HOOD - LEFTDECAL, HOOD - LEFT
-
70623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
81623-960 O-RINGO-RING
-
95706-356 PLENUM, INTAKE - UPPER (INC. 10)PLENUM, INTAKE - UPPER (INC. 10)
-
100617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
116606-386 BOOT, INTAKEBOOT, INTAKE
-
120623-165 CLIP, X-MAS TREE-5/32CLIP, X-MAS TREE-5/32
-
131623-933 SCREW, PLASTITE-TXSPNH 10-14X3/4 Z & BSCREW, PLASTITE-TXSPNH 10-14X3/4 Z & B
-
140623-797 SCREW, SELF TAP-TSTH 10-12X1/2 WO/GPSCREW, SELF TAP-TSTH 10-12X1/2 WO/GP
-
151623-939 CLIP, U-NUTCLIP, U-NUT
-
161623-929 SCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & BSCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & B
-
175706-358 PLENUM, INTAKE - LOWER REAR (INC. 18)PLENUM, INTAKE - LOWER REAR (INC. 18)
-
186606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
196606-822 RETAINER, PLENUMRETAINER, PLENUM
-
205706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
-
210621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
220617-624 ADAPTER, BOOTADAPTER, BOOT
-
232670-328 BOOT,EXTENSION-EFI ASSYBOOT,EXTENSION-EFI ASSY
-
240423-018 CLAMP, HOSECLAMP, HOSE
