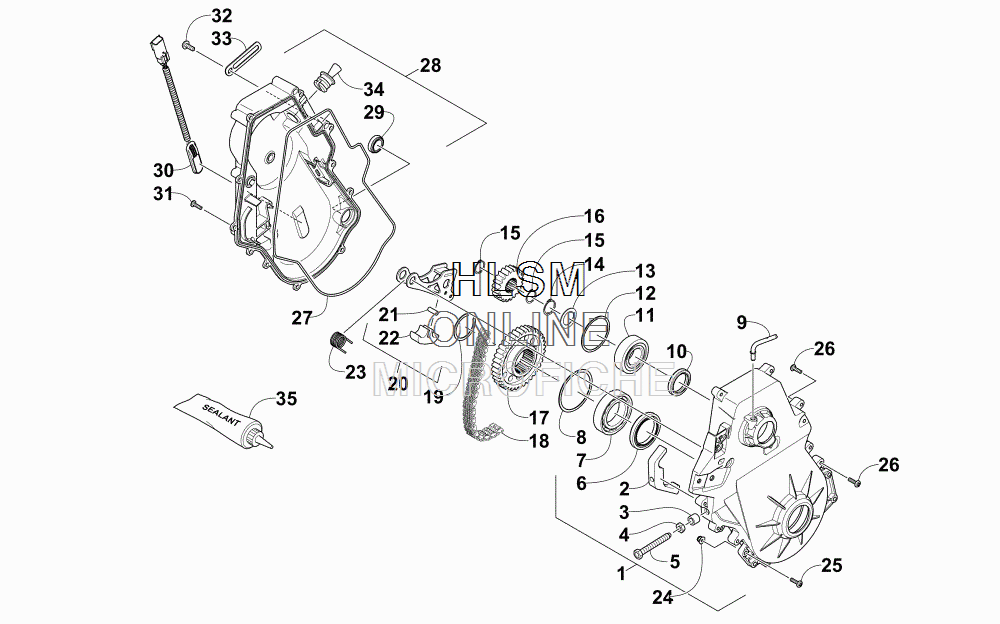

CHAIN CASE ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) (INTERNATIONAL) [S2015ACDPROSG] - 2015 года выпуска
-
№АртикулНазвание
-
11702-350 CHAIN CASE ASSEMBLY (INC. 2-12)CHAIN CASE ASSEMBLY (INC. 2-12)
-
22602-465 ...PLATE, RATCHET...PLATE, RATCHET
-
32602-707 ...SPACER...SPACER
-
40123-150 ...NUT...NUT
-
52602-735 ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
62602-172 ...SEAL...SEAL
-
72602-281 ...BEARING...BEARING
-
82602-280 ...RING, RETAINING...RING, RETAINING
-
92602-641 ...FITTING, ELBOW...FITTING, ELBOW
-
102602-204 ...SEAL...SEAL
-
112602-734 ...BEARING...BEARING
-
122602-236 ...RING, RETAINING...RING, RETAINING
-
130648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
141423-175 RING, RETAININGRING, RETAINING
-
151623-690 RING, RETAININGRING, RETAINING
-
162602-377 SPROCKET - 21T (13 WIDE)SPROCKET - 21T (13 WIDE)
-
171702-405 SPROCKET - 49T TOSSPROCKET - 49T TOS
-
182602-370 CHAIN - 90P (13 WIDE)CHAIN - 90P (13 WIDE)
-
192602-629 RING, RETAININGRING, RETAINING
-
201702-261 TENSIONER,CHAIN-ASSY (INC. 21-22)TENSIONER,CHAIN-ASSY (INC. 21-22)
-
212602-513 ...INSERT, PAD...INSERT, PAD
-
222602-466 ...PAD, WEAR...PAD, WEAR
-
232602-544 SPRINGSPRING
-
248427-602 NUT, LOCKNUT, LOCK
-
258476-625 SCREW, MACHINESCREW, MACHINE
-
268468-622 SCREW, MACHINESCREW, MACHINE
-
272602-817 SEAL, CHAIN CASE COVERSEAL, CHAIN CASE COVER
-
281702-178 COVER, CHAIN CASE (INC. 29-30)COVER, CHAIN CASE (INC. 29-30)
-
292602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
300730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
318468-626 SCREW, MACHINESCREW, MACHINE
-
328475-512 SCREW, MACHINESCREW, MACHINE
-
331623-984 CLAMP, WIRE - (76.14MM) LG W/6.25 HOLECLAMP, WIRE - (76.14MM) LG W/6.25 HOLE
-
342602-440 PLUG, FILLPLUG, FILL
-
351048-063 SEALANT - (70 ML)SEALANT - (70 ML)
