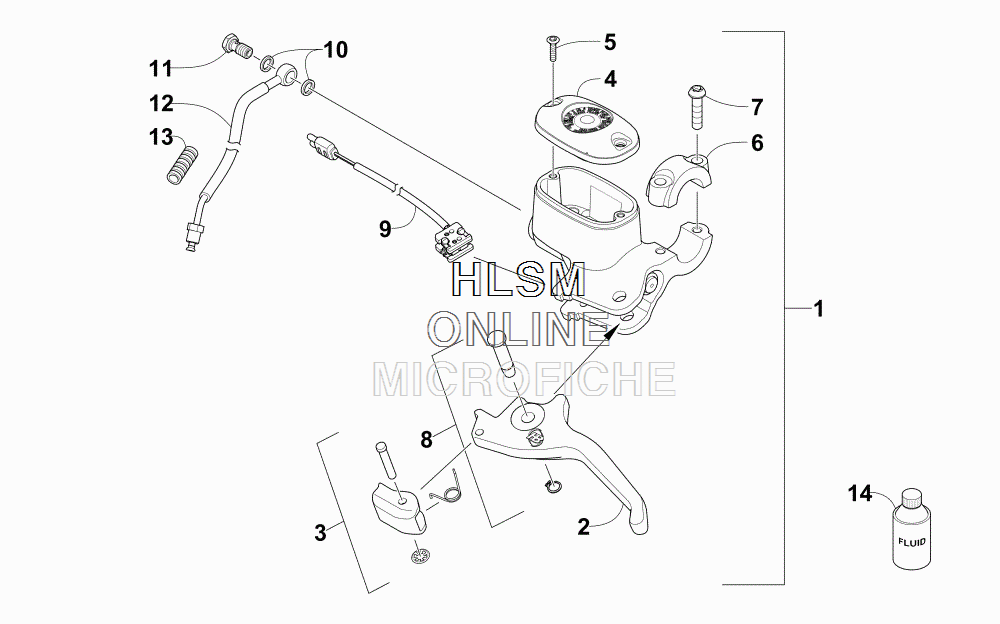

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) (INTERNATIONAL) [S2015ACDPROSG] - 2015 года выпуска
-
№АртикулНазвание
-
12602-889 CYLINDER,MASTER-9/16 CYCLONE (INC. 2-9)CYLINDER,MASTER-9/16 CYCLONE (INC. 2-9)
-
21602-931 ...LEVER, BRAKE (INC. 3)...LEVER, BRAKE (INC. 3)
-
31602-932 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
41602-933 ...COVER, RESERVOIR...COVER, RESERVOIR
-
51602-934 ...SCREW, MACHINE...SCREW, MACHINE
-
60502-869 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
71602-936 ...SCREW, MACHINE...SCREW, MACHINE
-
81602-937 ...PIN, BRAKE LEVER - KIT...PIN, BRAKE LEVER - KIT
-
91602-938 ...SWITCH, BRAKE...SWITCH, BRAKE
-
100423-178 WASHER, CRUSHWASHER, CRUSH
-
110423-413 BOLT, BANJO-FITTING - (20MM)BOLT, BANJO-FITTING - (20MM)
-
121602-166 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
131619-563 CONDUIT, HIGH TEMPERATURE - (3 FT)CONDUIT, HIGH TEMPERATURE - (3 FT)
-
145639-848 DOT 4 BRAKE FLUID - (12 OZ)DOT 4 BRAKE FLUID - (12 OZ)
