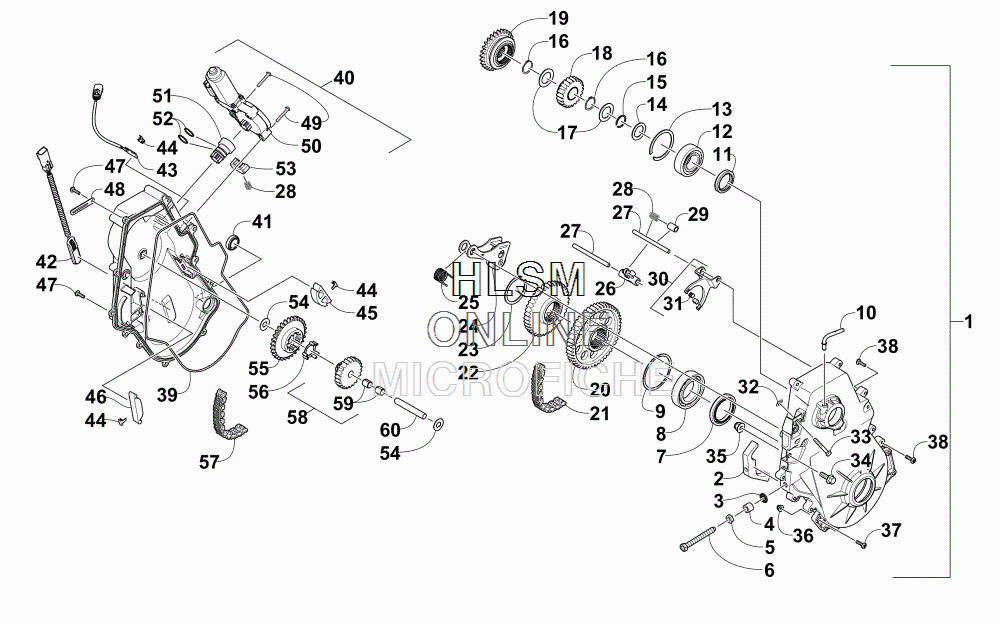

CHAIN CASE ASSEMBLY для Arctic Cat ZR 7000 SNO PRO (GREEN) [S2015ZRUSPUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11702-371 CHAIN CASE ASSEMBLY (INC. 2-13)CHAIN CASE ASSEMBLY (INC. 2-13)
-
22602-465 ...PLATE, RATCHET...PLATE, RATCHET
-
32623-057 ...WASHER, SEALING - RUBBER (YM)...WASHER, SEALING - RUBBER (YM)
-
42602-707 ...SPACER...SPACER
-
50123-150 ...NUT...NUT
-
62602-735 ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
72602-172 ...SEAL...SEAL
-
82602-281 ...BEARING...BEARING
-
92602-280 ...RING, RETAINING...RING, RETAINING
-
102602-641 ...FITTING, ELBOW...FITTING, ELBOW
-
112602-204 ...SEAL...SEAL
-
122602-734 ...BEARING...BEARING
-
132602-729 ...RING, RETAINING...RING, RETAINING
-
140648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
151423-175 RING, RETAININGRING, RETAINING
-
161623-690 RING, RETAININGRING, RETAINING
-
172602-339 WASHER, THRUSTWASHER, THRUST
-
181702-351 SPROCKET - 21T (13 WIDE)SPROCKET - 21T (13 WIDE)
-
192602-270 GEAR, SHIFT - REVERSEGEAR, SHIFT - REVERSE
-
202602-758 SPROCKET - 49T (13 WIDE)SPROCKET - 49T (13 WIDE)
-
212602-760 CHAIN - 90P (13 WIDE)CHAIN - 90P (13 WIDE)
-
222602-276 SPROCKET - 40T (11 WIDE)SPROCKET - 40T (11 WIDE)
-
232602-629 RING, RETAININGRING, RETAINING
-
241702-400 TENSIONER, CHAIN - ASSEMBLYTENSIONER, CHAIN - ASSEMBLY
-
252602-336 SPRINGSPRING
-
261702-265 ARM, SHIFT FORKARM, SHIFT FORK
-
272602-418 SHAFT, REVERSE - (8 MM)SHAFT, REVERSE - (8 MM)
-
282602-417 SPRINGSPRING
-
292602-579 BUSHINGBUSHING
-
301702-299 FORK, SHIFT W/WEAR PAD (INC. 31)FORK, SHIFT W/WEAR PAD (INC. 31)
-
312602-341 ...PAD, WEAR - SHIFT FORK...PAD, WEAR - SHIFT FORK
-
321623-409 NUT, PUSHNUT, PUSH
-
338402-640 SCREW, CAPSCREW, CAP
-
348408-820 SCREW, CAPSCREW, CAP
-
358427-802 NUT, LOCKNUT, LOCK
-
368427-602 NUT, LOCKNUT, LOCK
-
378476-630 SCREW, MACHINESCREW, MACHINE
-
381623-814 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
392602-817 SEAL, CHAIN CASE COVERSEAL, CHAIN CASE COVER
-
401702-368 COVER, CHAIN CASE (INC. 41-46)COVER, CHAIN CASE (INC. 41-46)
-
412602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
420730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
430730-197 ...SENSOR, GEAR POSITION - KIT...SENSOR, GEAR POSITION - KIT
-
441623-703 ...CLIP...CLIP
-
452602-749 ...SNUBBER, CHAIN...SNUBBER, CHAIN
-
462602-387 ...SNUBBER, CHAIN...SNUBBER, CHAIN
-
478468-626 SCREW, MACHINESCREW, MACHINE
-
481623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLECLAMP, WIRE - 76.14MM LG W/6.25 HOLE
-
492623-157 SCREW, MACHINESCREW, MACHINE
-
500630-285 ACTUATOR, REVERSE - (12 VDC) - ASM06ACTUATOR, REVERSE - (12 VDC) - ASM06
-
510630-331 EXTENSION, GEAR - ACTUATOR - MACH.EXTENSION, GEAR - ACTUATOR - MACH.
-
520830-185 O-RINGO-RING
-
530630-332 BLOCK, DETENTBLOCK, DETENT
-
542602-338 WASHER, THRUSTWASHER, THRUST
-
552602-751 GEAR, REVERSE IDLER - 30T (11 WIDE)GEAR, REVERSE IDLER - 30T (11 WIDE)
-
562602-415 INSERT, IDLERINSERT, IDLER
-
572602-342 CHAIN - 68P (11 WIDE)CHAIN - 68P (11 WIDE)
-
581702-173 IDLER, REVERSE - ASSEMBLY (INC. 59)IDLER, REVERSE - ASSEMBLY (INC. 59)
-
592602-337 ...BEARING...BEARING
-
602602-277 SHAFT, REVERSESHAFT, REVERSE
