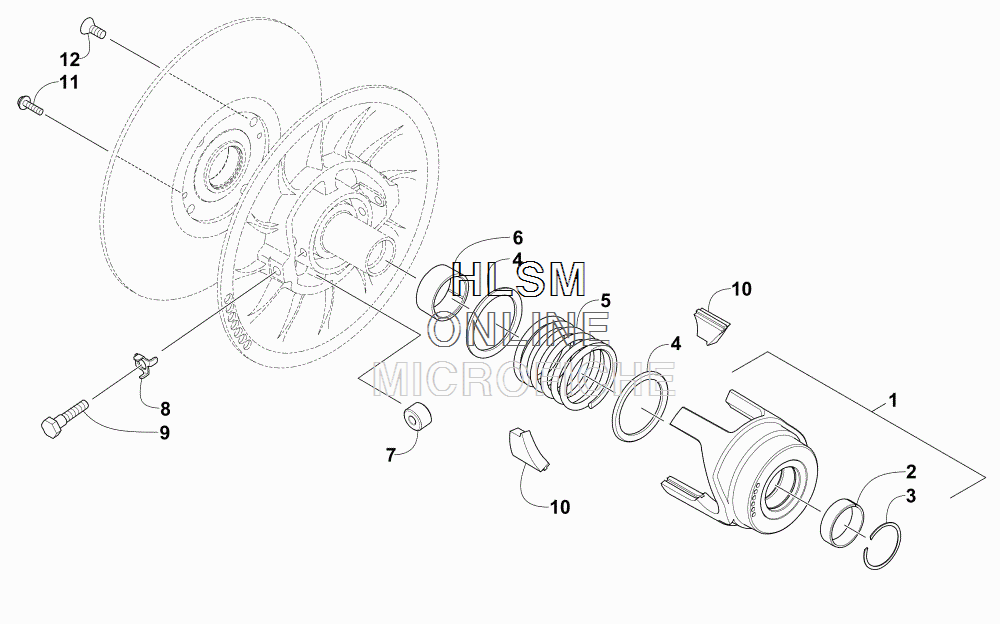

DRIVEN CLUTCH для Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE (INTERNATIONAL) (GREEN) [S2015ZRUEEOSG] - 2015 года выпуска
-
№АртикулНазвание
-
-0726-339 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
10748-773 BRACKET, TORQUE 42°/36° (INC. 2-3)BRACKET, TORQUE 42°/36° (INC. 2-3)
-
20648-831 ...BEARING...BEARING
-
30648-811 ...RING, SNAP - (43MM)...RING, SNAP - (43MM)
-
40648-810 SEAT, SPRINGSEAT, SPRING
-
50648-813 SPRING, DRIVEN CLUTCH - (BLUE)SPRING, DRIVEN CLUTCH - (BLUE)
-
60648-827 SPACERSPACER
-
70648-824 ROLLER, DRIVEN-TORLONROLLER, DRIVEN-TORLON
-
80648-800 WASHER, TAB - (10 MM)WASHER, TAB - (10 MM)
-
90648-799 SCREW, SHOULDERSCREW, SHOULDER
-
100648-825 CAM, BACK - 4 STROKECAM, BACK - 4 STROKE
-
110623-684 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
122623-050 SCREW, MACHINESCREW, MACHINE
