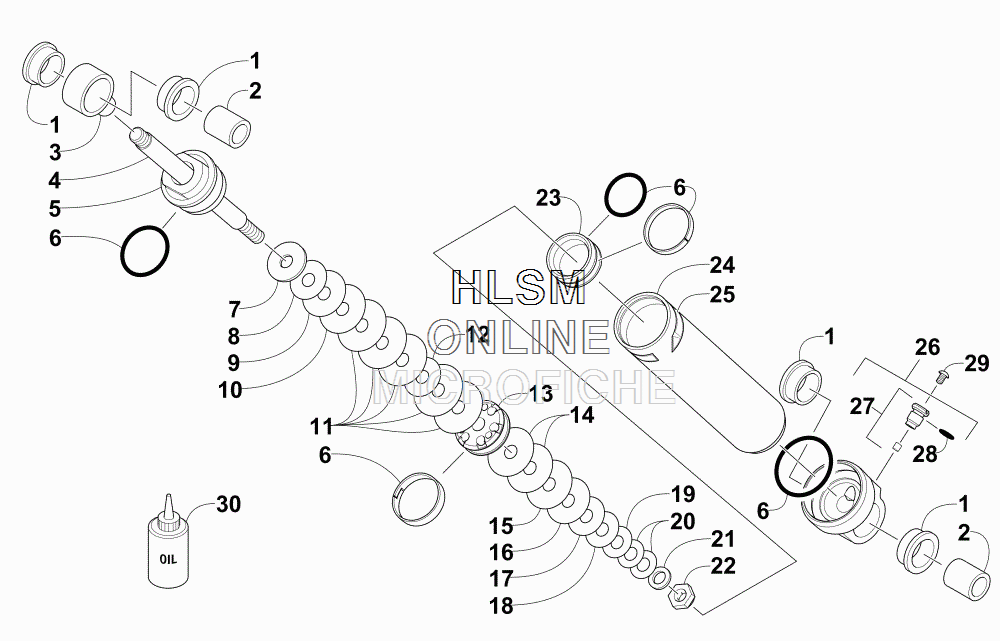

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE (INTERNATIONAL) (GREEN) [S2015ZRUEEOSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-685 SHOCK, REAR ARM - (2 IN.)SHOCK, REAR ARM - (2 IN.)
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-776 ROD, SHOCK - (12.66MM X 186.7MM)ROD, SHOCK - (12.66MM X 186.7MM)
-
54604-127 BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - (2 IN.)BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - (2 IN.)
-
64604-194 KIT, SEAL/REBUILD - (46 MM)KIT, SEAL/REBUILD - (46 MM)
-
64604-194 KIT, SEAL/REBUILD - (46 MM)KIT, SEAL/REBUILD - (46 MM)
-
73604-874 WASHER, TOP OUTWASHER, TOP OUT
-
83603-144 VALVE, (1.100 X 0.008 IN.)VALVE, (1.100 X 0.008 IN.)
-
93603-185 VALVE, (1.300 X 0.010 IN.)VALVE, (1.300 X 0.010 IN.)
-
103604-873 VALVE, (1.425 X 0.010 IN.)VALVE, (1.425 X 0.010 IN.)
-
113604-871 VALVE, (1.600 X 0.010 IN.)VALVE, (1.600 X 0.010 IN.)
-
123603-142 VALVE, (1.100 X 0.006 IN.)VALVE, (1.100 X 0.006 IN.)
-
133604-870 PISTON,(0.055 IN.) - ORIFICEPISTON,(0.055 IN.) - ORIFICE
-
143604-872 VALVE, (1.425 X 0.016 IN.)VALVE, (1.425 X 0.016 IN.)
-
153604-886 VALVE, (1.425 X 0.012 IN.)VALVE, (1.425 X 0.012 IN.)
-
163603-186 VALVE, (1.300 X 0.012 IN.)VALVE, (1.300 X 0.012 IN.)
-
173603-146 VALVE, (1.100 X 0.012 IN.)VALVE, (1.100 X 0.012 IN.)
-
183603-126 VALVE, (1.000 X 0.012 IN.)VALVE, (1.000 X 0.012 IN.)
-
193603-117 VALVE, (0.900 X 0.016 IN.)VALVE, (0.900 X 0.016 IN.)
-
203603-107 VALVE, (0.800 X 0.016 IN.)VALVE, (0.800 X 0.016 IN.)
-
213604-775 WASHER, BACKUPWASHER, BACKUP
-
223604-739 NUT - (3/8 IN.) - 24UNFNUT - (3/8 IN.) - 24UNF
-
233604-876 PISTON, FLOATINGPISTON, FLOATING
-
243604-880 BODY, SHOCKBODY, SHOCK
-
251621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
263604-894 END CAP, SHOCK - ASSEMBLY (INC. 27-28)END CAP, SHOCK - ASSEMBLY (INC. 27-28)
-
273604-751 ...VALVE, PRESSURE (INC. 28)...VALVE, PRESSURE (INC. 28)
-
283604-733 ......O-RING, VALVE......O-RING, VALVE
-
293604-750 SCREW, MACHINESCREW, MACHINE
-
305639-530 OIL, SHOCK - (1 QT)OIL, SHOCK - (1 QT)
