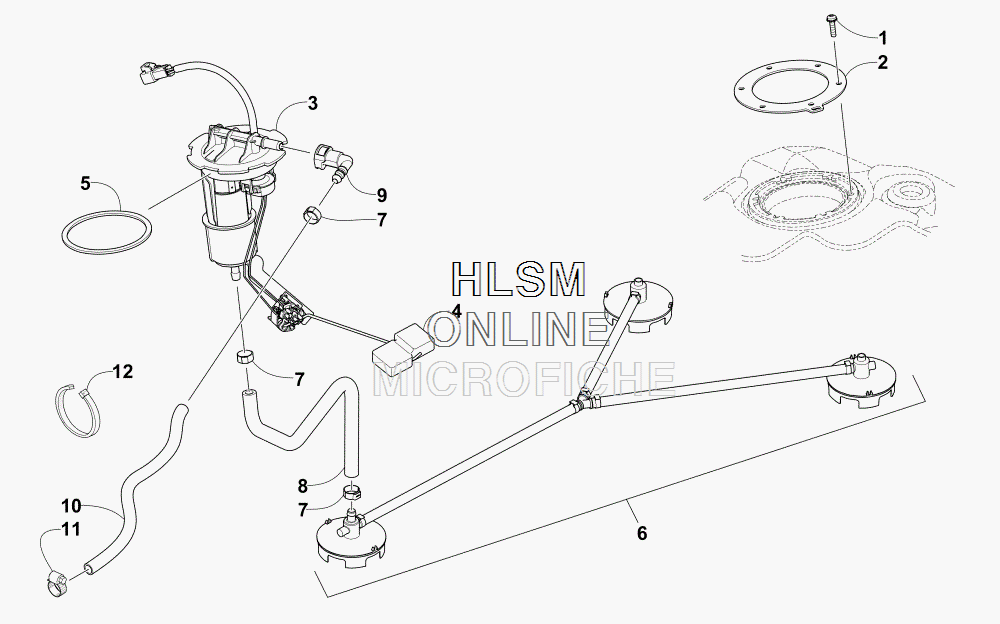

FUEL PUMP ASSEMBLY для Arctic Cat ZR 8000 SNO PRO (GREEN) [S2015ZRHSPUSG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/f6dc7a13-0631-4678-8a77-7edd571bb27a.gif)
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAININGPLATE, RETAINING
-
32670-472 PUMP,FUEL-2 STRK S/P (INC. 4)PUMP,FUEL-2 STRK S/P (INC. 4)
-
42670-235 ...FLOAT...FLOAT
-
50470-838 SEALSEAL
-
62670-377 PICKUP, FUEL - 3MPPICKUP, FUEL - 3MP
-
70610-563 CLAMP, HOSE - (13.2MM-15.7MM)CLAMP, HOSE - (13.2MM-15.7MM)
-
82670-442 HOSE, FUEL PUMP/PICKUPHOSE, FUEL PUMP/PICKUP
-
91670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
100610-971 HOSE, FUEL - IN TANK - (10 FT)HOSE, FUEL - IN TANK - (10 FT)
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
120123-903 TIE, CABLE - (11.5 IN.)TIE, CABLE - (11.5 IN.)
