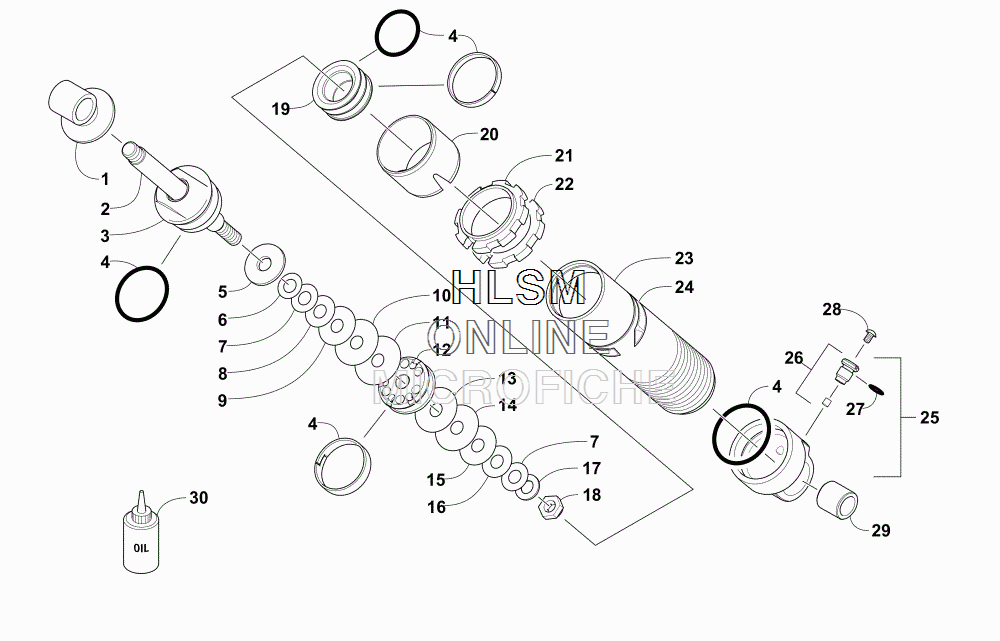

SUSPENSION FRONT - FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 8000 SNO PRO (GREEN) [S2015ZRHSPUSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-377 SHOCK ABSORBER 2 STROKE PROSHOCK ABSORBER 2 STROKE PRO
-
13604-797 EYELET, SHOCKEYELET, SHOCK
-
23604-764 ROD, SHOCK - (12.66MM X 157.3MM)ROD, SHOCK - (12.66MM X 157.3MM)
-
34604-125 BEARING, ENDCAP - SHORT W/BLEED - ASSEMBLYBEARING, ENDCAP - SHORT W/BLEED - ASSEMBLY
-
44604-121 KIT, SEAL/REBUILD - (37MM)KIT, SEAL/REBUILD - (37MM)
-
53604-789 WASHER, TOP OUTWASHER, TOP OUT
-
63603-096 VALVE, (0.700 X 0.012 IN.)VALVE, (0.700 X 0.012 IN.)
-
73603-105 VALVE, (0.800 X 0.010 IN.)VALVE, (0.800 X 0.010 IN.)
-
83603-114 VALVE, (0.900 X 0.008 IN.)VALVE, (0.900 X 0.008 IN.)
-
93603-124 VALVE, (1.000 X 0.008 IN.)VALVE, (1.000 X 0.008 IN.)
-
103603-144 VALVE, (1.100 X 0.008 IN.)VALVE, (1.100 X 0.008 IN.)
-
113603-184 VALVE, (1.300 X 0.008 IN.)VALVE, (1.300 X 0.008 IN.)
-
123604-790 PISTON, (0.093 IN.) - ORIFICEPISTON, (0.093 IN.) - ORIFICE
-
133603-174 VALVE, (1.250 X 0.008 IN.)VALVE, (1.250 X 0.008 IN.)
-
143603-145 VALVE, (1.100 X 0.010 IN.)VALVE, (1.100 X 0.010 IN.)
-
153603-125 VALVE, (1.000 X 0.010 IN.)VALVE, (1.000 X 0.010 IN.)
-
163603-115 VALVE, (0.900 X 0.010 IN.)VALVE, (0.900 X 0.010 IN.)
-
173604-775 WASHER, BACKUPWASHER, BACKUP
-
183604-739 NUT - (3/8 IN.)-24UNFNUT - (3/8 IN.)-24UNF
-
193604-772 PISTON, FLOATINGPISTON, FLOATING
-
203604-773 SLEEVE, WEARSLEEVE, WEAR
-
212603-014 NUT, ADJUSTERNUT, ADJUSTER
-
223604-779 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
233604-777 BODY, SHOCK - (37.20 BORE- 145.40MM)BODY, SHOCK - (37.20 BORE- 145.40MM)
-
241621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
252704-257 END CAP, SHOCK - ASSEMBLY (INC. 26-27)END CAP, SHOCK - ASSEMBLY (INC. 26-27)
-
263604-751 ...VALVE, PRESSURE (INC. 27)...VALVE, PRESSURE (INC. 27)
-
273604-733 ......O-RING, VALVE......O-RING, VALVE
-
283604-750 SCREW, MACHINESCREW, MACHINE
-
293604-906 BUSHINGBUSHING
-
305639-530 OIL, SHOCK - (1 QT)OIL, SHOCK - (1 QT)
