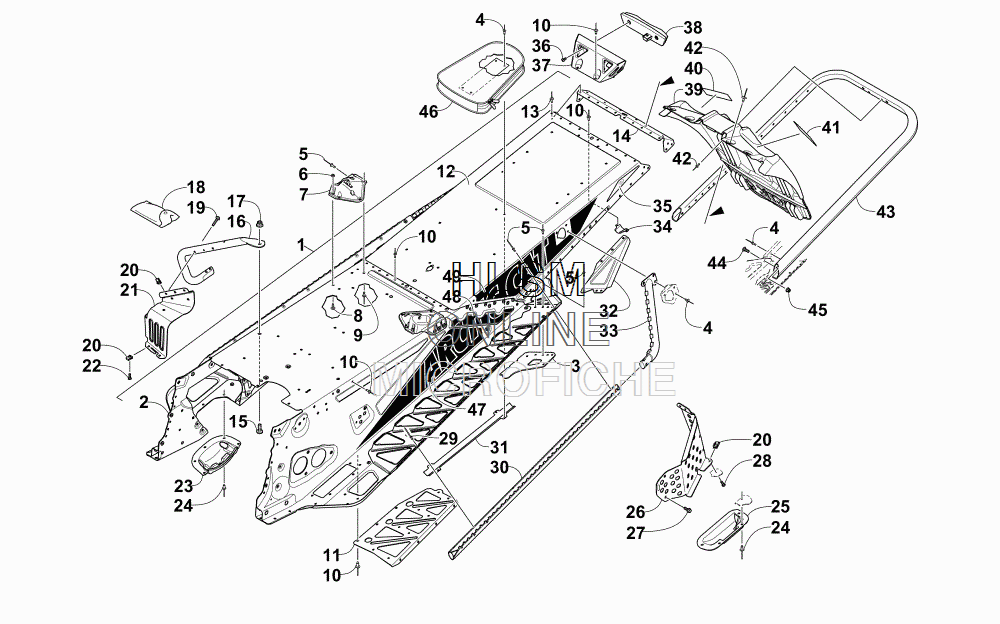

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 8000 SNO PRO RR (INTERNATIONAL) (GREEN) - 2015 года выпуска
-
№АртикулНазвание
-
-2707-018 COMPLETE CHASSIS ASSEMBLY - (128 IN.)(TEAM ARCTIC GREEN)COMPLETE CHASSIS ASSEMBLY - (128 IN.)(TEAM ARCTIC GREEN)
-
12707-312 ...TUNNEL ASSEMBLY - (TEAM ARCTIC GREEN) (INC. 2-10 AND 12-14)...TUNNEL ASSEMBLY - (TEAM ARCTIC GREEN) (INC. 2-10 AND 12-14)
-
22707-311 ...TUNNEL, FRONT - ASSEMBLY - (TEAM ARCTIC GREEN) (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - (TEAM ARCTIC GREEN) (INC. 3-4)
-
32707-318 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (TEAM ARCTIC GREEN)......BRACKET, MOUNTING - SUSPENSION - RIGHT - (TEAM ARCTIC GREEN)
-
32707-319 ......BRACKET, MOUNTING - SUSPENSION - LEFT - (TEAM ARCTIC GREEN)......BRACKET, MOUNTING - SUSPENSION - LEFT - (TEAM ARCTIC GREEN)
-
48060-686 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
72707-340 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (TEAM ARCTIC GREEN)...BRACKET, MOUNTING - REAR SPAR - RIGHT - (TEAM ARCTIC GREEN)
-
72707-341 ...BRACKET, MOUNTING - REAR SPAR - LEFT - (TEAM ARCTIC GREEN)...BRACKET, MOUNTING - REAR SPAR - LEFT - (TEAM ARCTIC GREEN)
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
112707-316 SUPPORT, RUNNING BOARD - RIGHT - (TEAM ARCTIC GREEN)SUPPORT, RUNNING BOARD - RIGHT - (TEAM ARCTIC GREEN)
-
112707-317 SUPPORT, RUNNING BOARD - LEFT - (TEAM ARCTIC GREEN)SUPPORT, RUNNING BOARD - LEFT - (TEAM ARCTIC GREEN)
-
122707-314 ...TUNNEL, REAR - (TEAM ARCTIC GREEN)...TUNNEL, REAR - (TEAM ARCTIC GREEN)
-
138060-484 ...RIVET...RIVET
-
142707-315 ...END CAP, TUNNEL - (TEAM ARCTIC GREEN)...END CAP, TUNNEL - (TEAM ARCTIC GREEN)
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
161707-455 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
178427-802 NUT, LOCKNUT, LOCK
-
180744-078 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
212707-004 FOOTREST - RIGHT - (TEAM ARCTIC GREEN)FOOTREST - RIGHT - (TEAM ARCTIC GREEN)
-
212707-005 FOOTREST - LEFT - (TEAM ARCTIC GREEN)FOOTREST - LEFT - (TEAM ARCTIC GREEN)
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVETRIVET
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
262707-042 SHIELD, BRAKE DISC - (TEAM ARCTIC GREEN)SHIELD, BRAKE DISC - (TEAM ARCTIC GREEN)
-
278408-613 SCREW, CAPSCREW, CAP
-
288470-520 SCREW, MACHINESCREW, MACHINE
-
291623-130 RIVETRIVET
-
302707-132 ROLL, TUNNEL - RIGHT - (TEAM ARCTIC GREEN)ROLL, TUNNEL - RIGHT - (TEAM ARCTIC GREEN)
-
302707-133 ROLL, TUNNEL - LEFT - (TEAM ARCTIC GREEN)ROLL, TUNNEL - LEFT - (TEAM ARCTIC GREEN)
-
310630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSION - (128 IN.)PROTECTOR, HARNESS - TAILLIGHT EXTENSION - (128 IN.)
-
322707-320 GUSSET, RUNNING BOARD - RIGHT - (TEAM ARCTIC GREEN)GUSSET, RUNNING BOARD - RIGHT - (TEAM ARCTIC GREEN)
-
322707-321 GUSSET, RUNNING BOARD - LEFT - (TEAM ARCTIC GREEN)GUSSET, RUNNING BOARD - LEFT - (TEAM ARCTIC GREEN)
-
332707-338 GUSSET, TUNNEL ROLL - RIGHT - (TEAM ARCTIC GREEN)GUSSET, TUNNEL ROLL - RIGHT - (TEAM ARCTIC GREEN)
-
332707-339 GUSSET, TUNNEL ROLL - LEFT - (TEAM ARCTIC GREEN)GUSSET, TUNNEL ROLL - LEFT - (TEAM ARCTIC GREEN)
-
340630-292 PROTECTOR, HARNESS - TAILLIGHT - (26.5MM)PROTECTOR, HARNESS - TAILLIGHT - (26.5MM)
-
350621-990 DECAL, REFLECTOR - (RED)DECAL, REFLECTOR - (RED)
-
368470-510 SCREW, MACHINESCREW, MACHINE
-
370730-230 BRACKET, MOUNTING - (TAILLIGHT - TEAM ARCTIC GREEN)BRACKET, MOUNTING - (TAILLIGHT - TEAM ARCTIC GREEN)
-
380609-898 TAILLIGHT, (RED)TAILLIGHT, (RED)
-
396606-394 SNOWFLAP - (BLACK)SNOWFLAP - (BLACK)
-
405611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
415611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
428061-706 RIVETRIVET
-
432707-578 BUMPER,REAR-(129 IN.)-PTD-(BLACK)BUMPER,REAR-(129 IN.)-PTD-(BLACK)
-
448476-620 SCREW, MACHINESCREW, MACHINE
-
458427-602 NUT, LOCKNUT, LOCK
-
466606-615 BAG, BELTBAG, BELT
-
471621-344 DECAL, TUNNEL - FRONT - "ARTIC CAT" - RIGHTDECAL, TUNNEL - FRONT - "ARTIC CAT" - RIGHT
-
471621-345 DECAL, TUNNEL - FRONT - "ARTIC CAT" - LEFTDECAL, TUNNEL - FRONT - "ARTIC CAT" - LEFT
-
481621-342 DECAL, TUNNEL - CENTER - "ARTIC CAT" - RIGHTDECAL, TUNNEL - CENTER - "ARTIC CAT" - RIGHT
-
481621-343 DECAL, TUNNEL - CENTER - "ARTIC CAT" - LEFTDECAL, TUNNEL - CENTER - "ARTIC CAT" - LEFT
-
491621-340 DECAL, TUNNEL - REAR - "ARTIC CAT" - RIGHTDECAL, TUNNEL - REAR - "ARTIC CAT" - RIGHT
-
491621-341 DECAL, TUNNEL - REAR - "ARTIC CAT" - LEFTDECAL, TUNNEL - REAR - "ARTIC CAT" - LEFT
