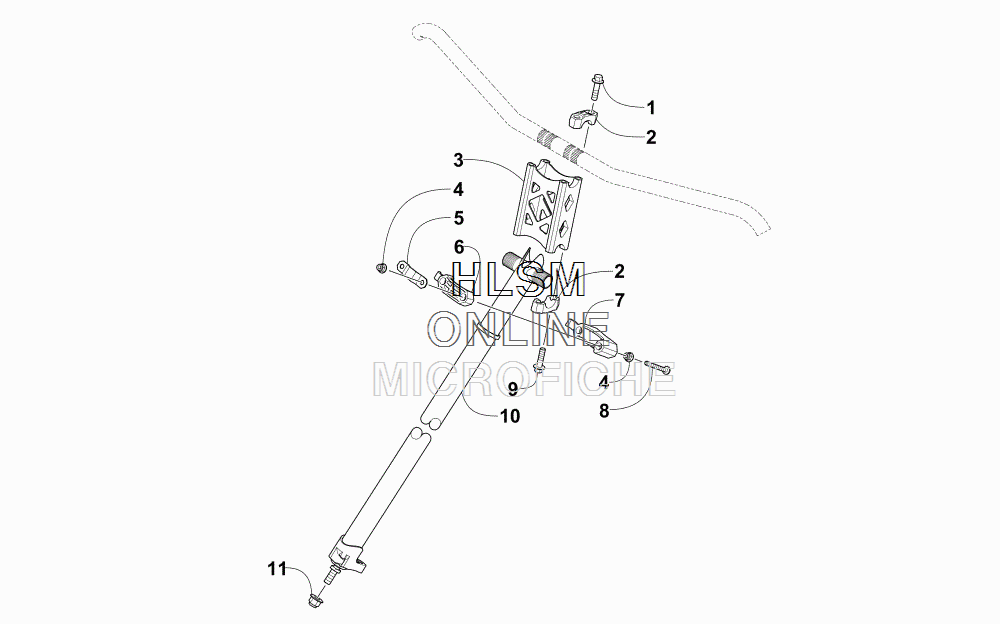

STEERING POST ASSEMBLY для Arctic Cat PANTERA 7000 LTD BLACK [S2016PTULXUSB] - 2016 года выпуска
-
№АртикулНазвание
-
18476-830 SCREW, CAPSCREW, CAP
-
21605-118 CAP, STEERINGCAP, STEERING
-
31605-034 BLOCK, RISER - 6.5 IN.BLOCK, RISER - 6.5 IN.
-
48427-602 NUT, LOCKNUT, LOCK
-
50605-998 PLATE, RETAININGPLATE, RETAINING
-
61605-043 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
71605-156 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
82623-070 SCREW, MACHINESCREW, MACHINE
-
98408-830 SCREW, CAPSCREW, CAP
-
101705-309 POST, STEERINGPOST, STEERING
-
112623-076 NUT, LOCK - W/WASHERNUT, LOCK - W/WASHER
