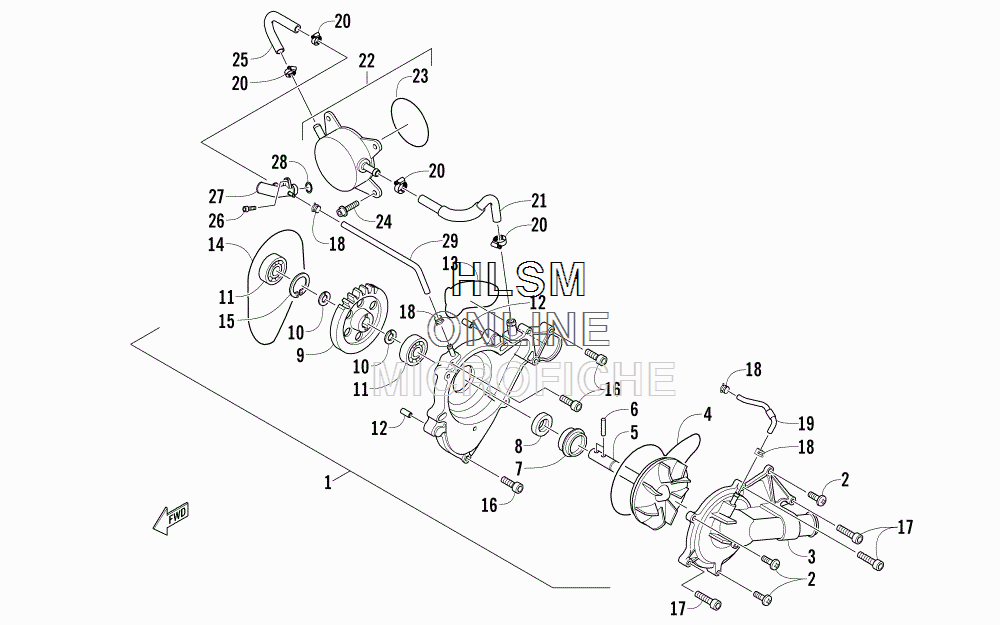

WATER PUMP ASSEMBLY для Arctic Cat PANTERA 7000 LTD BLACK [S2016PTULXUSB] - 2016 года выпуска
-
№АртикулНазвание
-
13020-300 PUMP, WATER - ASSEMBLY (INC. 2-10 AND ONE NO. 11)PUMP, WATER - ASSEMBLY (INC. 2-10 AND ONE NO. 11)
-
23020-301 ...SCREW, MACHINE...SCREW, MACHINE
-
33020-302 ...COVER, HOUSING...COVER, HOUSING
-
43020-303 ...SEAL, HOUSING COVER...SEAL, HOUSING COVER
-
53020-304 ...IMPELLER/SHAFT ASSEMBLY...IMPELLER/SHAFT ASSEMBLY
-
63020-305 ...PIN, DOWEL...PIN, DOWEL
-
73020-306 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
83020-307 ...SEAL, OIL...SEAL, OIL
-
93020-308 ...GEAR...GEAR
-
103020-309 ...RING, RETAINING...RING, RETAINING
-
113020-310 ...BEARING...BEARING
-
123020-293 PIN, DOWELPIN, DOWEL
-
133020-311 SEALSEAL
-
143020-312 SEALSEAL
-
153020-313 RING, RETAININGRING, RETAINING
-
163020-314 SCREW, CAPSCREW, CAP
-
173020-315 SCREW, CAPSCREW, CAP
-
183020-316 CLAMP, HOSECLAMP, HOSE
-
193020-317 HOSE, COOLANT - WATER PUMP/THROTTLE BODYHOSE, COOLANT - WATER PUMP/THROTTLE BODY
-
203020-318 CLAMP, HOSECLAMP, HOSE
-
213020-319 HOSE, COOLANT - WATER PUMP/OIL COOLERHOSE, COOLANT - WATER PUMP/OIL COOLER
-
223020-320 COOLER, OIL - ASSEMBLY (INC. 23)COOLER, OIL - ASSEMBLY (INC. 23)
-
233020-321 ...O-RING...O-RING
-
243020-322 SCREW, CAPSCREW, CAP
-
253020-323 HOSE, COOLANT - OIL COOLER/ELBOW FITTINGHOSE, COOLANT - OIL COOLER/ELBOW FITTING
-
263020-167 SCREW, CAPSCREW, CAP
-
273020-324 FITTING, ELBOWFITTING, ELBOW
-
283020-325 O-RINGO-RING
-
293020-326 HOSE, COOLANT - ELBOW FITTING/WATER PUMPHOSE, COOLANT - ELBOW FITTING/WATER PUMP
