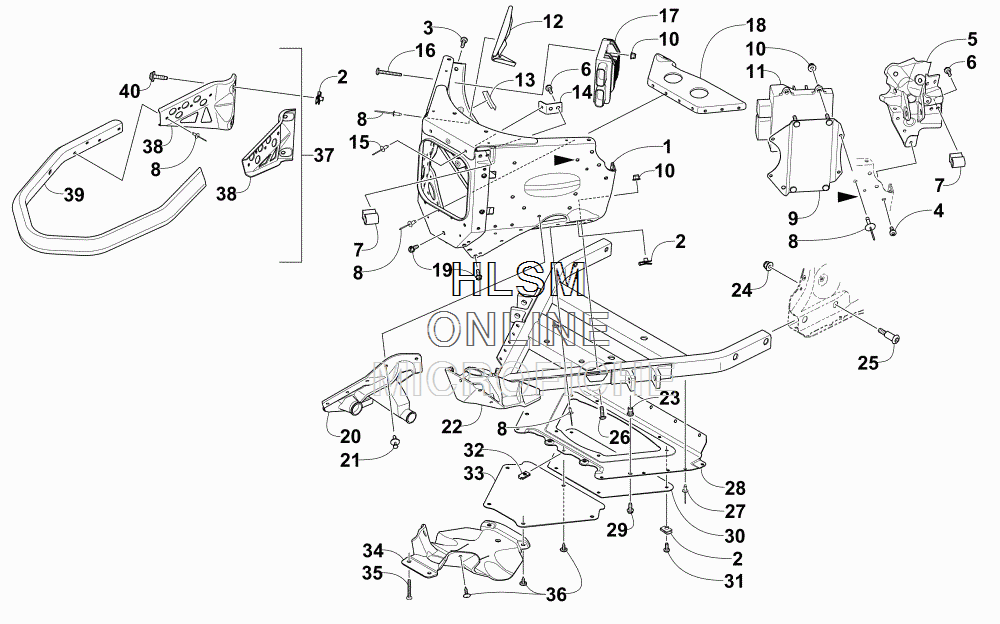

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 7000 HIGH COUNTRY 141 ORANGE [S2016X7UHIUSO] - 2016 года выпуска
-
№АртикулНазвание
-
12707-485 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
40423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
52707-304 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
52707-305 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
68413-617 SCREW, CAPSCREW, CAP
-
71607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
88060-706 RIVET - BLACKRIVET - BLACK
-
90745-391 BRACKET, MOUNTING - ECMBRACKET, MOUNTING - ECM
-
108427-602 NUT, LOCKNUT, LOCK
-
110730-258 ECMECM
-
121607-126 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
130706-371 TRIM - 3 FTTRIM - 3 FT
-
141607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
151623-241 RIVETRIVET
-
168477-625 SCREW, MACHINESCREW, MACHINE
-
170824-072 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
181607-127 BRACKET, REINFORCEMENTBRACKET, REINFORCEMENT
-
191623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
201605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
210623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
221707-862 FRAME, FRONT - LOWER - BLACKFRAME, FRONT - LOWER - BLACK
-
231623-797 INSERTINSERT
-
248427-802 NUT, LOCKNUT, LOCK
-
251623-817 SCREW, SHOULDERSCREW, SHOULDER
-
268468-620 SCREW, MACHINESCREW, MACHINE
-
278060-686 RIVET - ZINCRIVET - ZINC
-
281607-217 BELLY PAN - CENTERBELLY PAN - CENTER
-
298476-520 SCREW, MACHINESCREW, MACHINE
-
301607-218 COVER, ACCESSCOVER, ACCESS
-
318468-617 SCREW, MACHINESCREW, MACHINE
-
321623-052 CLIP, U-NUTCLIP, U-NUT
-
331607-063 PANEL, ACCESSPANEL, ACCESS
-
346606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
351623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
361623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
371707-598 BUMPER, FRONT - ASSEMBLY - ORANGE (INC. EIGHT NO. 8 AND 38-39)BUMPER, FRONT - ASSEMBLY - ORANGE (INC. EIGHT NO. 8 AND 38-39)
-
381707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
381707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
391707-580 ...BUMPER, FRONT - ORANGE...BUMPER, FRONT - ORANGE
-
400423-609 SCREW, MACHINESCREW, MACHINE
