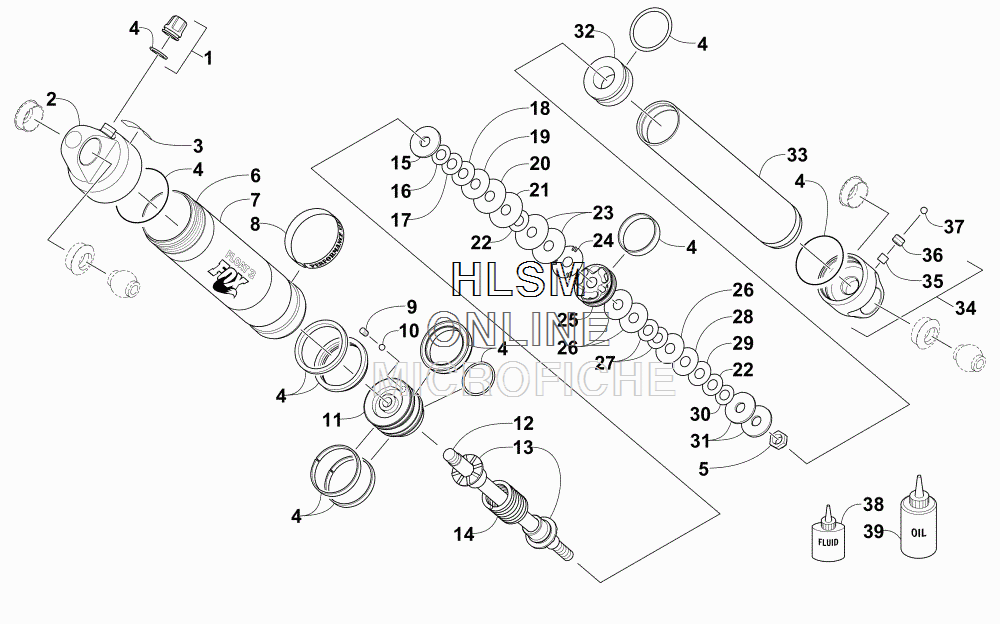

SUSPENSION FRONT - SHOCK ABSORBER для Arctic Cat XF 7000 HIGH COUNTRY 141 ORANGE [S2016X7UHIUSO] - 2016 года выпуска
-
№АртикулНазвание
-
-3703-336 SHOCK ABSORBERSHOCK ABSORBER
-
13603-366 CAP, AIR VALVECAP, AIR VALVE
-
23603-333 END CAP, SHOCKEND CAP, SHOCK
-
33603-359 DECAL, PSIDECAL, PSI
-
43603-293 KIT, SEAL/CAP REBUILD (INC. 5)KIT, SEAL/CAP REBUILD (INC. 5)
-
53603-018 ...NUT, LOCK...NUT, LOCK
-
63603-290 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
73603-369 DECAL, "FLOAT 3 FOX"DECAL, "FLOAT 3 FOX"
-
83603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
91603-940 SCREW, SETSCREW, SET
-
101604-315 BALL, BLEEDBALL, BLEED
-
113603-291 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
123603-361 ROD, SHOCKROD, SHOCK
-
132603-522 GUIDE, SPRINGGUIDE, SPRING
-
142603-656 SPRINGSPRING
-
150603-540 WASHER, TOP OUT - 1.125OD X 0.378ID X 0.093WASHER, TOP OUT - 1.125OD X 0.378ID X 0.093
-
160603-332 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
170603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
180603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
190603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
200603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
210603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
220603-334 VALVE, .800X.008 (3/8ID)VALVE, .800X.008 (3/8ID)
-
230603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
243603-344 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
253603-397 PISTON, 3-PORTPISTON, 3-PORT
-
260603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
270603-895 VALVE, 0.800 X 0.004 IN.VALVE, 0.800 X 0.004 IN.
-
280603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
290603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
300603-331 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
312604-966 WASHER, TOP OUTWASHER, TOP OUT
-
323603-023 PISTON, FLOATING - W/O-RINGPISTON, FLOATING - W/O-RING
-
333603-360 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
343603-332 END CAP, SHOCK (INC. 35-36)END CAP, SHOCK (INC. 35-36)
-
351604-428 ...PLUG, RUBBER - VALVE...PLUG, RUBBER - VALVE
-
362603-338 ...SCREW, SET...SCREW, SET
-
372603-337 BALL, AIR VALVEBALL, AIR VALVE
-
384639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
395639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
