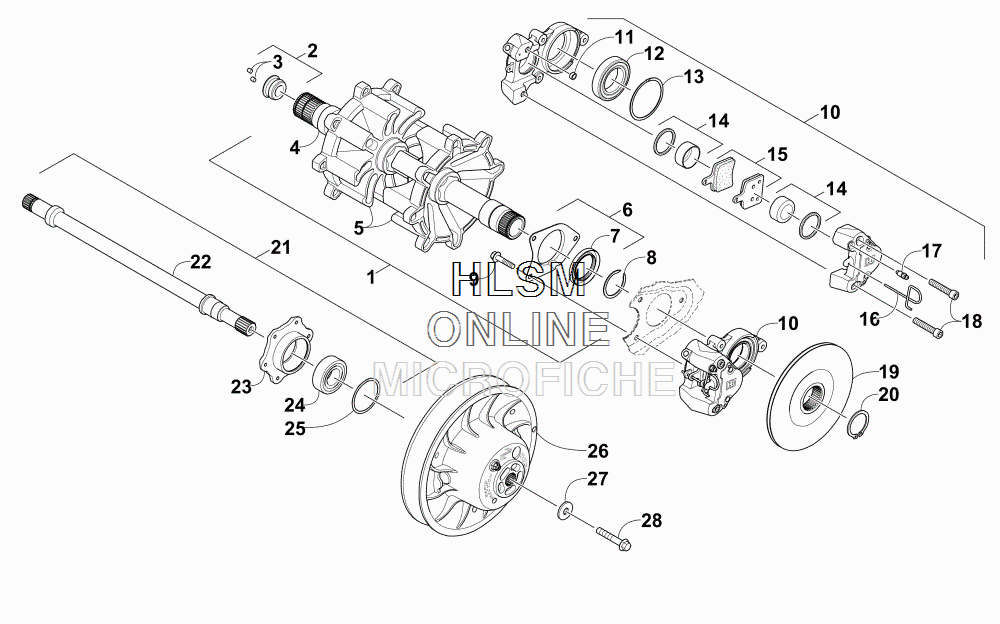

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat XF 8000 HIGH COUNTRY 141 SNO PRO EARLY BUILD ORANGE [S2016X8HHIEBO] - 2016 года выпуска
-
№АртикулНазвание
-
10728-226 TRACK, DRIVE - ASSEMBLY (INC. 2-8)TRACK, DRIVE - ASSEMBLY (INC. 2-8)
-
21702-072 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
-
32602-211 ......MAGNET......MAGNET
-
42602-740 ...DRIVESHAFT...DRIVESHAFT
-
52602-617 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
61702-206 ...PLATE, RETAINING - SEAL (INC. 7)...PLATE, RETAINING - SEAL (INC. 7)
-
71602-344 ......SEAL......SEAL
-
82602-233 ...RING, RETAINING...RING, RETAINING
-
98408-831 SCREW, CAPSCREW, CAP
-
102602-486 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
-
112602-411 ...SEAL...SEAL
-
122602-198 ...BEARING...BEARING
-
132602-280 ...RING, RETAINING...RING, RETAINING
-
142602-410 ...PISTON SET...PISTON SET
-
151702-245 ...PAD, BRAKE - SET (INC. 16)...PAD, BRAKE - SET (INC. 16)
-
162602-409 ......PIN, RETAINING......PIN, RETAINING
-
172602-408 ...FITTING, BLEED...FITTING, BLEED
-
182602-412 ...BOLT, BRAKE CALIPER...BOLT, BRAKE CALIPER
-
192602-249 DISC, BRAKEDISC, BRAKE
-
202602-629 RING, RETAININGRING, RETAINING
-
211702-439 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)
-
222602-969 ...SHAFT, DRIVEN...SHAFT, DRIVEN
-
232602-454 ...HUB, BEARING...HUB, BEARING
-
242602-247 ...BEARING...BEARING
-
252602-236 ...RING, RETAINING...RING, RETAINING
-
260726-365 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
272623-120 WASHER, LOCKWASHER, LOCK
-
288409-060 SCREW, CAPSCREW, CAP
