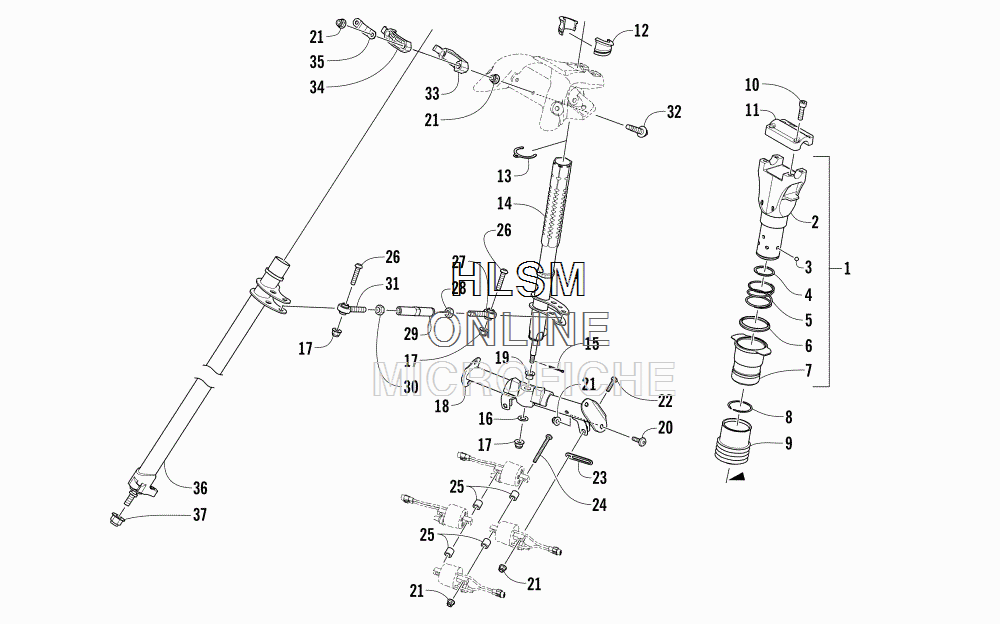

STEERING POST ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY 141 SNO PRO EARLY BUILD ORANGE [S2016X8HHIEBO] - 2016 года выпуска
-
№АртикулНазвание
-
10705-985 BLOCK, ADJUSTING - ASSEMBLY (INC. 2-7)BLOCK, ADJUSTING - ASSEMBLY (INC. 2-7)
-
20605-713 ...BLOCK, ADJUSTING...BLOCK, ADJUSTING
-
30605-714 ...BEARING, BALL...BEARING, BALL
-
41623-506 ...RING, RETAINING...RING, RETAINING
-
50605-715 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
60605-852 ...SEAL, WIPER...SEAL, WIPER
-
71705-283 ...COLLAR, SLIDE...COLLAR, SLIDE
-
81623-507 RING, RETAININGRING, RETAINING
-
90605-992 SLEEVE, PROTECTIVESLEEVE, PROTECTIVE
-
101623-753 SCREW, CAPSCREW, CAP
-
111705-284 CLAMP, HANDLEBAR - BLACKCLAMP, HANDLEBAR - BLACK
-
121605-054 BEARING - RIGHTBEARING - RIGHT
-
121605-055 BEARING - LEFTBEARING - LEFT
-
131605-056 RING, RETAININGRING, RETAINING
-
141705-405 POST, STEERING - UPPERPOST, STEERING - UPPER
-
150623-175 PIN, COTTERPIN, COTTER
-
161605-067 WASHER, THRUSTWASHER, THRUST
-
178427-802 NUT, LOCKNUT, LOCK
-
181705-397 BRACKET, STEERING SUPPORT (INC. 19)BRACKET, STEERING SUPPORT (INC. 19)
-
191605-057 ...BEARING...BEARING
-
208476-625 SCREW, MACHINESCREW, MACHINE
-
218427-602 NUT, LOCKNUT, LOCK
-
228468-625 SCREW, MACHINESCREW, MACHINE
-
231623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
248468-665 SCREW, MACHINESCREW, MACHINE
-
251623-041 SPACERSPACER
-
262623-026 SCREW, MACHINESCREW, MACHINE
-
271605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
288420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
291605-053 TUBE, TIE RODTUBE, TIE ROD
-
300423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
311605-051 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
322623-079 SCREW, MACHINESCREW, MACHINE
-
331605-128 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
341605-127 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
350605-998 PLATE, RETAININGPLATE, RETAINING
-
361705-399 POST, STEERING - LOWERPOST, STEERING - LOWER
-
372623-076 NUT, LOCK - W/WASHERNUT, LOCK - W/WASHER
