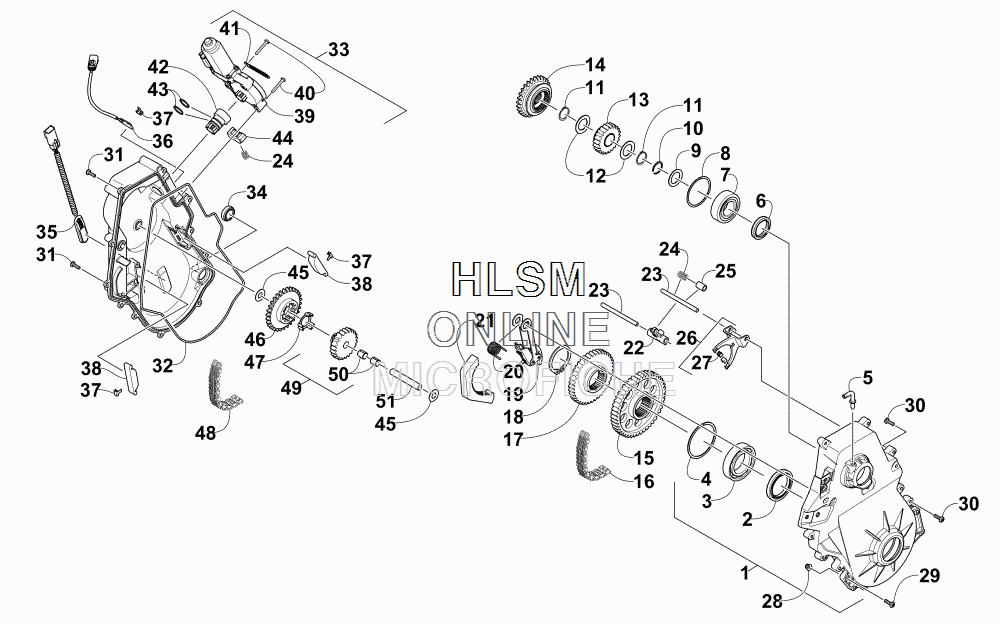

CHAIN CASE ASSEMBLY для Arctic Cat XF 9000 CROSSTREK 137 ORANGE INTERANTIONAL [S2016ZXNCTOSO] - 2016 года выпуска
-
№АртикулНазвание
-
11702-451 CHAIN CASE ASSEMBLY (INC. 2-8)CHAIN CASE ASSEMBLY (INC. 2-8)
-
22602-172 ...SEAL...SEAL
-
32602-281 ...BEARING...BEARING
-
42602-280 ...RING, RETAINING...RING, RETAINING
-
52602-641 ...FITTING, ELBOW...FITTING, ELBOW
-
62602-204 ...SEAL...SEAL
-
72602-734 ...BEARING...BEARING
-
82602-236 ...RING, RETAINING...RING, RETAINING
-
90648-443 ...WASHER, SHIM (.060 IN.)...WASHER, SHIM (.060 IN.)
-
101423-175 ...RING, RETAINING...RING, RETAINING
-
111623-690 ...RING, RETAINING...RING, RETAINING
-
122602-339 WASHER, THRUSTWASHER, THRUST
-
131702-410 SPROCKET - 21T (13 WIDE)SPROCKET - 21T (13 WIDE)
-
142602-270 GEAR, SHIFT - REVERSEGEAR, SHIFT - REVERSE
-
152602-745 SPROCKET - 41T (13 WIDE)SPROCKET - 41T (13 WIDE)
-
162602-743 CHAIN - 86P (13 WIDE)CHAIN - 86P (13 WIDE)
-
172602-276 SPROCKET - 40T (11 WIDE)SPROCKET - 40T (11 WIDE)
-
182602-629 RING, RETAININGRING, RETAINING
-
191702-397 ARM, TENSIONER - ASSEMBLYARM, TENSIONER - ASSEMBLY
-
202602-336 SPRINGSPRING
-
212602-230 PLATE, RATCHETPLATE, RATCHET
-
221702-265 ARM, SHIFT FORKARM, SHIFT FORK
-
232602-418 SHAFT, REVERSESHAFT, REVERSE
-
242602-417 SPRINGSPRING
-
252602-579 BUSHINGBUSHING
-
261702-299 SHIFT FORK - ASSEMBLY (INC. 27)SHIFT FORK - ASSEMBLY (INC. 27)
-
272602-341 ...PAD, WEAR - SHIFT FORK...PAD, WEAR - SHIFT FORK
-
288427-602 NUT, LOCKNUT, LOCK
-
298476-630 SCREW, MACHINESCREW, MACHINE
-
301623-814 SCREW, MACHINESCREW, MACHINE
-
318468-626 SCREW, MACHINESCREW, MACHINE
-
322602-817 SEAL, CHAIN CASESEAL, CHAIN CASE
-
331702-447 COVER, CHAIN CASE (INC. 34, 37-38)COVER, CHAIN CASE (INC. 34, 37-38)
-
342602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
350730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
360730-197 ...KIT, GEAR POSITION SENSOR...KIT, GEAR POSITION SENSOR
-
371623-703 ...CLIP...CLIP
-
382602-387 ...SNUBBER, CHAIN...SNUBBER, CHAIN
-
390630-285 ACTUATOR, REVERSEACTUATOR, REVERSE
-
402623-157 SCREW, MACHINESCREW, MACHINE
-
411623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
420630-331 EXTENSION, ACTUATOREXTENSION, ACTUATOR
-
430830-185 O-RINGO-RING
-
440630-332 BLOCK, DETENTBLOCK, DETENT
-
452602-338 WASHER, THRUSTWASHER, THRUST
-
462602-275 GEAR, REVERSE IDLER - 30T (11 WIDE)GEAR, REVERSE IDLER - 30T (11 WIDE)
-
472602-415 INSERT, IDLERINSERT, IDLER
-
482602-342 CHAIN - 68P (11 WIDE)CHAIN - 68P (11 WIDE)
-
491702-173 IDLER, REVERSE - ASSEMBLY (INC. 50)IDLER, REVERSE - ASSEMBLY (INC. 50)
-
502602-337 ...BEARING...BEARING
-
512602-277 SHAFT, REVERSESHAFT, REVERSE
