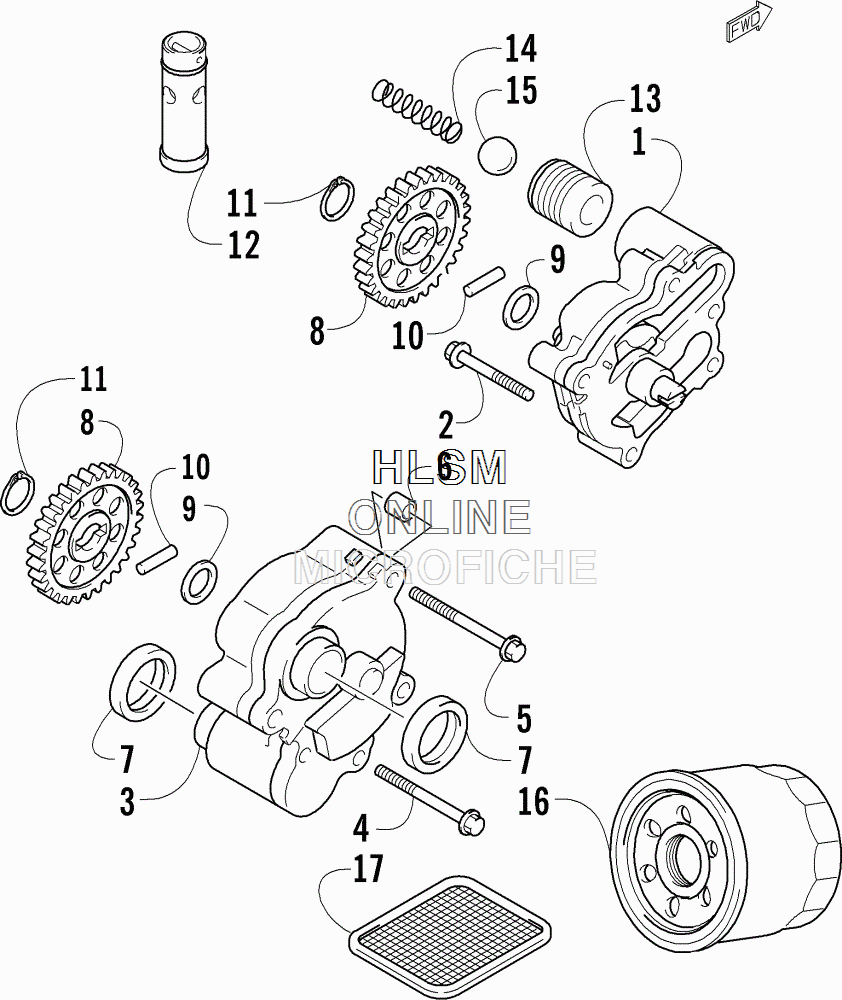

OIL PUMP ASSEMBLY для Arctic Cat XF 9000 CROSSTREK 137 ORANGE INTERANTIONAL [S2016ZXNCTOSO] - 2016 года выпуска
-
№АртикулНазвание
-
13007-161 PUMP, OIL - FEEDPUMP, OIL - FEED
-
23007-496 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
33007-162 PUMP, OIL - SCAVENGEPUMP, OIL - SCAVENGE
-
43007-505 BOLT, OIL PANBOLT, OIL PAN
-
53007-370 BOLT, CYLINDER HEAD COVER (NO. 2)BOLT, CYLINDER HEAD COVER (NO. 2)
-
63005-206 PINPIN
-
73007-163 SEAL, OILSEAL, OIL
-
83007-164 GEAR, DRIVENGEAR, DRIVEN
-
93007-165 WASHERWASHER
-
103007-166 PINPIN
-
113423-876 CIRCLIP, REVERSE SHIFT CAM FASTENERCIRCLIP, REVERSE SHIFT CAM FASTENER
-
123007-167 VALVE, OIL-RELIEFVALVE, OIL-RELIEF
-
133007-168 SEAT, OIL-FEED CHECK VALVESEAT, OIL-FEED CHECK VALVE
-
143007-169 SPRING, OIL-FEED CHECK VALVESPRING, OIL-FEED CHECK VALVE
-
153007-170 BALL, OIL-FEED CHECK VALVEBALL, OIL-FEED CHECK VALVE
-
162670-440 FILTER, OIL - ENGINEFILTER, OIL - ENGINE
-
173007-172 STRAINER, OILSTRAINER, OIL
