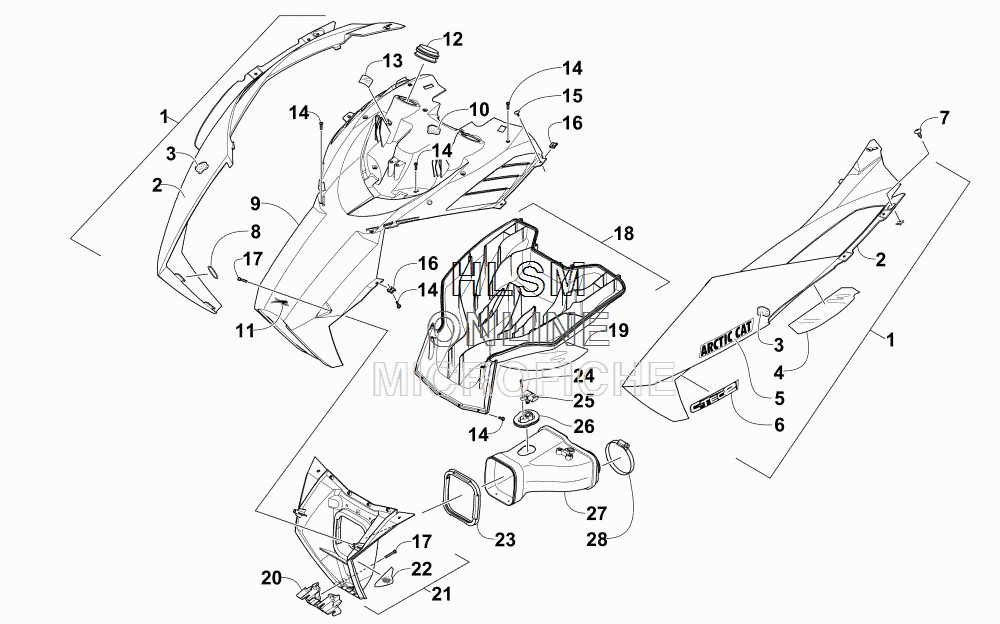

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 6000 RR GREEN [S2016ZRDRRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
14718-596 HOOD W/DECALS - RIGHT - BLACK (INC. 2-3, ONE NO. 5, AND ONE NO. 6)HOOD W/DECALS - RIGHT - BLACK (INC. 2-3, ONE NO. 5, AND ONE NO. 6)
-
23718-588 ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
14718-597 HOOD W/DECALS - LEFT - BLACK (INC. 2-4, ONE NO. 5, AND ONE NO. 6)HOOD W/DECALS - LEFT - BLACK (INC. 2-4, ONE NO. 5, AND ONE NO. 6)
-
23718-589 ...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
52621-352 ...DECAL, HOOD - FORWARD...DECAL, HOOD - FORWARD
-
60621-906 ...DECAL, HOOD - "C-TEC2"...DECAL, HOOD - "C-TEC2"
-
70623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81623-960 O-RINGO-RING
-
95706-356 PLENUM, INTAKE - UPPER (INC. 10)PLENUM, INTAKE - UPPER (INC. 10)
-
100617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
114411-479 DECAL, AIRCATDECAL, AIRCAT
-
126606-386 BOOT, INTAKEBOOT, INTAKE
-
132606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
141623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161623-939 CLIP, U-NUTCLIP, U-NUT
-
171623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
185706-358 PLENUM, INTAKE - LOWER REAR (INC. 19)PLENUM, INTAKE - LOWER REAR (INC. 19)
-
196606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
206606-822 RETAINER, PLENUMRETAINER, PLENUM
-
215706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
-
220621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
230617-624 ADAPTER, BOOTADAPTER, BOOT
-
242623-016 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250824-052 SENSOR, T-MAPSENSOR, T-MAP
-
262670-444 BOOTBOOT
-
271770-056 BOOT, INTAKEBOOT, INTAKE
-
280423-018 CLAMP, HOSECLAMP, HOSE
