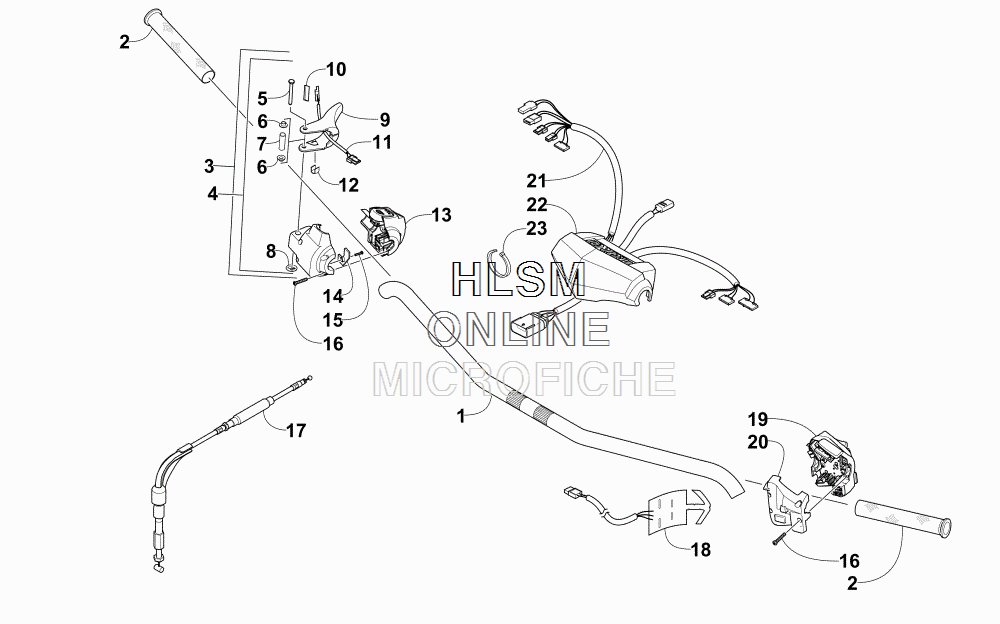

HANDLEBAR AND CONTROLS для Arctic Cat ZR 7000 137 LTD EARLY BUILD BLACK [S2016ZXULEEBB] - 2016 года выпуска
-
№АртикулНазвание
-
11705-092 HANDLEBAR - BLACKHANDLEBAR - BLACK
-
24606-945 GRIP, HANDLEBARGRIP, HANDLEBAR
-
30609-882 CONTROL, THROTTLE - RIGHT - REAR (INC. 4-9)CONTROL, THROTTLE - RIGHT - REAR (INC. 4-9)
-
40609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)
-
80123-766 ......NUT, PUSH......NUT, PUSH
-
90609-795 ...LEVER, THROTTLE...LEVER, THROTTLE
-
100617-248 PAD, INSULATORPAD, INSULATOR
-
110609-827 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
120609-595 CLIP, RETAININGCLIP, RETAINING
-
130609-884 CONTROL, RIGHT HAND - FRONT - W/REVERSECONTROL, RIGHT HAND - FRONT - W/REVERSE
-
140609-792 COVER, CONNECTORCOVER, CONNECTOR
-
150609-793 SCREW, MACHINESCREW, MACHINE
-
160609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170687-235 CABLE, THROTTLECABLE, THROTTLE
-
180609-948 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
180609-949 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
190609-929 CONTROL, DIMMER - FRONTCONTROL, DIMMER - FRONT
-
200609-883 CONTROL, DIMMER - REARCONTROL, DIMMER - REAR
-
211686-637 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
226606-129 PAD, HANDLEBARPAD, HANDLEBAR
-
230123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
230123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
