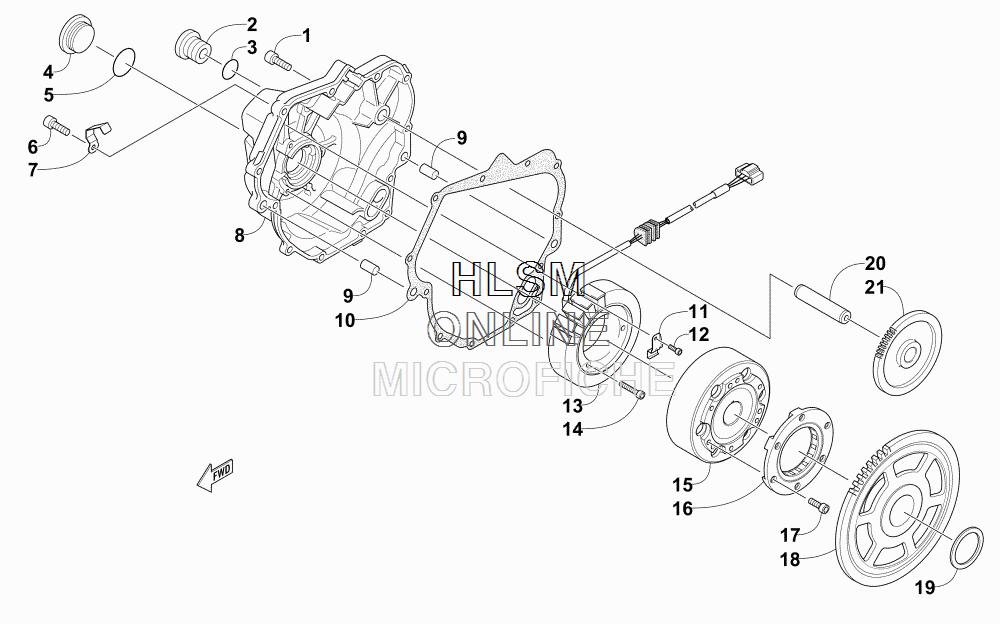

MAGNETO AND COVER ASSEMBLY для Arctic Cat ZR 7000 137 LTD EARLY BUILD BLACK [S2016ZXULEEBB] - 2016 года выпуска
-
№АртикулНазвание
-
13020-345 SCREW, CAPSCREW, CAP
-
23020-346 PLUGPLUG
-
33020-347 O-RINGO-RING
-
43020-348 PLUGPLUG
-
53020-349 O-RINGO-RING
-
63020-314 SCREW, CAPSCREW, CAP
-
73020-350 BRACKET, RETAININGBRACKET, RETAINING
-
83020-351 COVER, MAGNETOCOVER, MAGNETO
-
93020-293 PIN, DOWELPIN, DOWEL
-
103020-352 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
113020-353 BRACKET, RETAININGBRACKET, RETAINING
-
123020-354 SCREW, CAPSCREW, CAP
-
133020-355 STATORSTATOR
-
143020-356 SCREW, CAPSCREW, CAP
-
153020-357 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
163020-358 CLUTCH, STARTER - ONE WAYCLUTCH, STARTER - ONE WAY
-
173020-359 SCREW, CAPSCREW, CAP
-
183020-360 GEAR, STARTER CLUTCHGEAR, STARTER CLUTCH
-
193020-361 WASHERWASHER
-
203020-362 SHAFT, IDLER GEARSHAFT, IDLER GEAR
-
213020-363 GEAR, IDLER - STARTERGEAR, IDLER - STARTER
