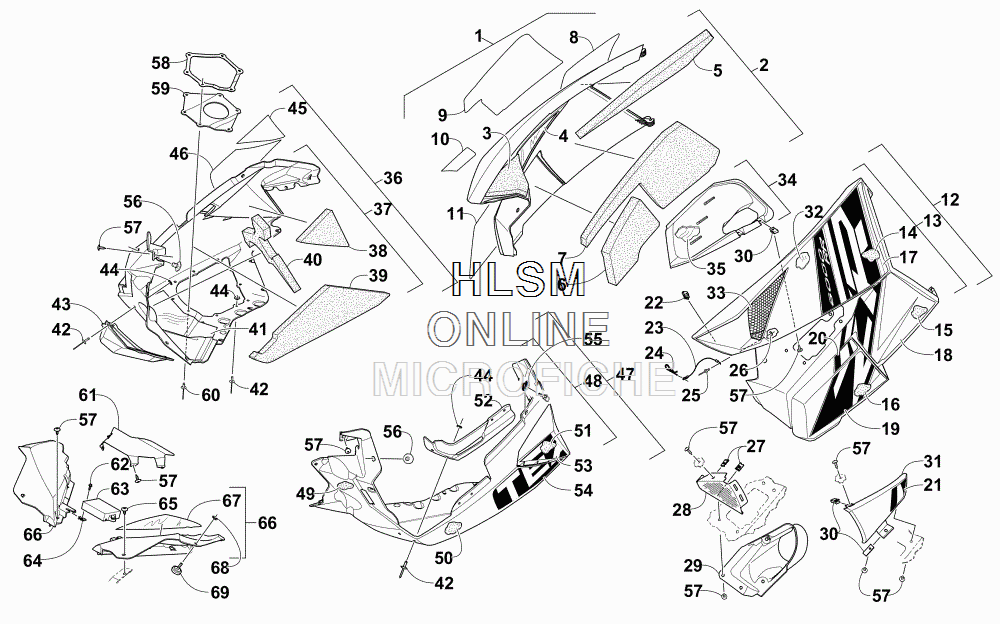

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 8000 SNO PRO RR 129 GREEN [S2016ZRHRRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
14718-794 PANEL, SIDE W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-11,23-26)PANEL, SIDE W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-11,23-26)
-
23718-858 ...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7,23-26)...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7,23-26)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
82621-360 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
92621-364 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
102621-344 ...DECAL, SIDE PANEL - CENTER - RIGHT...DECAL, SIDE PANEL - CENTER - RIGHT
-
112621-340 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
124718-795 PANEL, SIDE W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 13-20, 22-26)PANEL, SIDE W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 13-20, 22-26)
-
134718-577 ...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 14-16,22-26)...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 14-16,22-26)
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
172621-361 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
182621-365 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
192621-341 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
202621-345 ...DECAL, SIDE PANEL - CENTER - LEFT...DECAL, SIDE PANEL - CENTER - LEFT
-
212621-347 DECAL, SIDE PANEL - MID VENT - LEFTDECAL, SIDE PANEL - MID VENT - LEFT
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-447 CABLECABLE
-
240605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
258060-486 RIVETRIVET
-
268050-127 WASHERWASHER
-
271623-052 CLIP, U-NUTCLIP, U-NUT
-
286606-925 SCREEN, INTAKESCREEN, INTAKE
-
292602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
301623-030 CLIP, U-NUTCLIP, U-NUT
-
312602-801 DUCT, INTAKE - OUTER - GREENDUCT, INTAKE - OUTER - GREEN
-
320619-206 FOIL, PROTECTIVE OPTIONALFOIL, PROTECTIVE OPTIONAL
-
335706-531 SCREEN, INTAKE OPTIONALSCREEN, INTAKE OPTIONAL
-
341702-369 DUCT, AIR - CLUTCH (INC. 35)DUCT, AIR - CLUTCH (INC. 35)
-
356606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
364718-816 PLATE, SKID W/DECALS - RIGHT - GREEN (INC. 37-46)PLATE, SKID W/DECALS - RIGHT - GREEN (INC. 37-46)
-
373718-422 ...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 38-44)...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 38-44)
-
380617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
390617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
400617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
412612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
428061-708 ......RIVET......RIVET
-
432612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
440123-802 ......WASHER......WASHER
-
452621-336 ...DECAL, SKID PLATE - REAR - RIGHT...DECAL, SKID PLATE - REAR - RIGHT
-
462621-338 ...DECAL, SKID PLATE - FORWARD - RIGHT...DECAL, SKID PLATE - FORWARD - RIGHT
-
474718-801 PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 42,44,48-54)PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 42,44,48-54)
-
483718-789 ...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 42,44,49-52)...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 42,44,49-52)
-
490617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
500617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
510617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
526606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
532621-337 ...DECAL, SKID PLATE - REAR - LEFT...DECAL, SKID PLATE - REAR - LEFT
-
542621-339 ...DECAL, SKID PLATE - FORWARD - LEFT...DECAL, SKID PLATE - FORWARD - LEFT
-
552623-005 CLIP, RETAININGCLIP, RETAINING
-
566606-592 PIN, RETAININGPIN, RETAINING
-
571623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
582612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
592612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
608061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
616606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
628408-620 SCREW, CAPSCREW, CAP
-
630730-243 ECM - TRIANGLEECM - TRIANGLE
-
640423-031 CLIP, U-NUTCLIP, U-NUT
-
650623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
666606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
663718-303 FASCIA, FRONT - LEFT - BLACK (INC. 67)FASCIA, FRONT - LEFT - BLACK (INC. 67)
-
676606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
682623-001 NUT, PUSH (OPTIONAL)NUT, PUSH (OPTIONAL)
-
691623-999 SCREW, THUMB (OPTIONAL)SCREW, THUMB (OPTIONAL)
