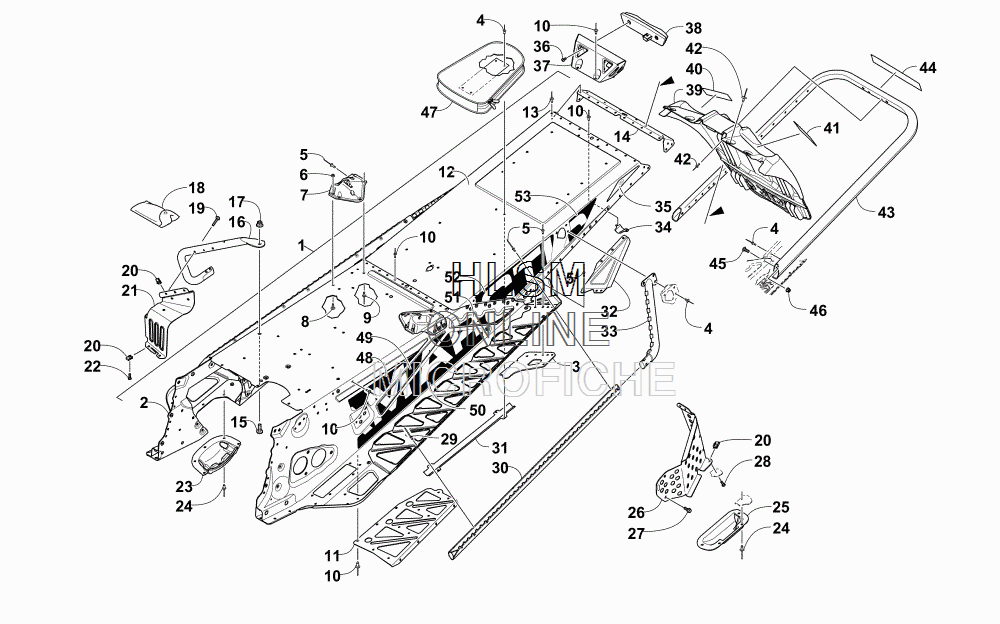

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 8000 SNO PRO RR 129 GREEN [S2016ZRHRRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-1707-930 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-178 TUNNEL ASSEMBLY - BLACK (INC. 2-14)TUNNEL ASSEMBLY - BLACK (INC. 2-14)
-
22707-177 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
31707-916 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
31707-917 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET - BLACK......RIVET - BLACK
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
112707-172 ...SUPPORT, RUNNING BOARD - RIGHT - BLACK...SUPPORT, RUNNING BOARD - RIGHT - BLACK
-
112707-173 ...SUPPORT, RUNNING BOARD - LEFT - BLACK...SUPPORT, RUNNING BOARD - LEFT - BLACK
-
121707-835 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
138060-484 ...RIVET...RIVET
-
141707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
161707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
178427-802 NUT, LOCKNUT, LOCK
-
180744-087 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
211707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
211707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVETRIVET
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
262707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
278408-613 SCREW, CAPSCREW, CAP
-
288470-520 SCREW, MACHINESCREW, MACHINE
-
291623-130 RIVETRIVET
-
302707-170 ROLL, TUNNEL - RIGHT - BLACKROLL, TUNNEL - RIGHT - BLACK
-
302707-171 ROLL, TUNNEL - LEFT - BLACKROLL, TUNNEL - LEFT - BLACK
-
310630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
321707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
321707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
331707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
331707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
340630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
350621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
368470-510 SCREW, MACHINESCREW, MACHINE
-
370730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
380609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
396606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
405611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
415611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
428061-706 RIVETRIVET
-
432707-580 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
448476-620 SCREW, MACHINESCREW, MACHINE
-
458427-602 NUT, LOCKNUT, LOCK
-
466606-615 BAG, BELTBAG, BELT
-
472621-346 DECAL, REAR BUMPERDECAL, REAR BUMPER
-
482621-334 DECAL, TUNNEL - UPPER FRONT - RIGHTDECAL, TUNNEL - UPPER FRONT - RIGHT
-
482621-335 DECAL, TUNNEL - UPPER FRONT - LEFTDECAL, TUNNEL - UPPER FRONT - LEFT
-
492621-332 DECAL, TUNNEL - CENTER FRONT - RIGHTDECAL, TUNNEL - CENTER FRONT - RIGHT
-
492621-333 DECAL, TUNNEL - CENTER FRONT - LEFTDECAL, TUNNEL - CENTER FRONT - LEFT
-
502621-330 DECAL, TUNNEL - LOWER FRONT - RIGHTDECAL, TUNNEL - LOWER FRONT - RIGHT
-
502621-331 DECAL, TUNNEL - LOWER FRONT - LEFTDECAL, TUNNEL - LOWER FRONT - LEFT
-
512621-328 DECAL, TUNNEL - CENTER - RIGHTDECAL, TUNNEL - CENTER - RIGHT
-
512621-329 DECAL, TUNNEL - CENTER - LEFTDECAL, TUNNEL - CENTER - LEFT
-
522621-326 DECAL, TUNNEL - FORWARD REAR - RIGHTDECAL, TUNNEL - FORWARD REAR - RIGHT
-
522621-327 DECAL, TUNNEL - FORWARD REAR - LEFTDECAL, TUNNEL - FORWARD REAR - LEFT
-
532621-324 DECAL, TUNNEL - REAR - RIGHTDECAL, TUNNEL - REAR - RIGHT
-
532621-325 DECAL, TUNNEL - REAR - LEFTDECAL, TUNNEL - REAR - LEFT
