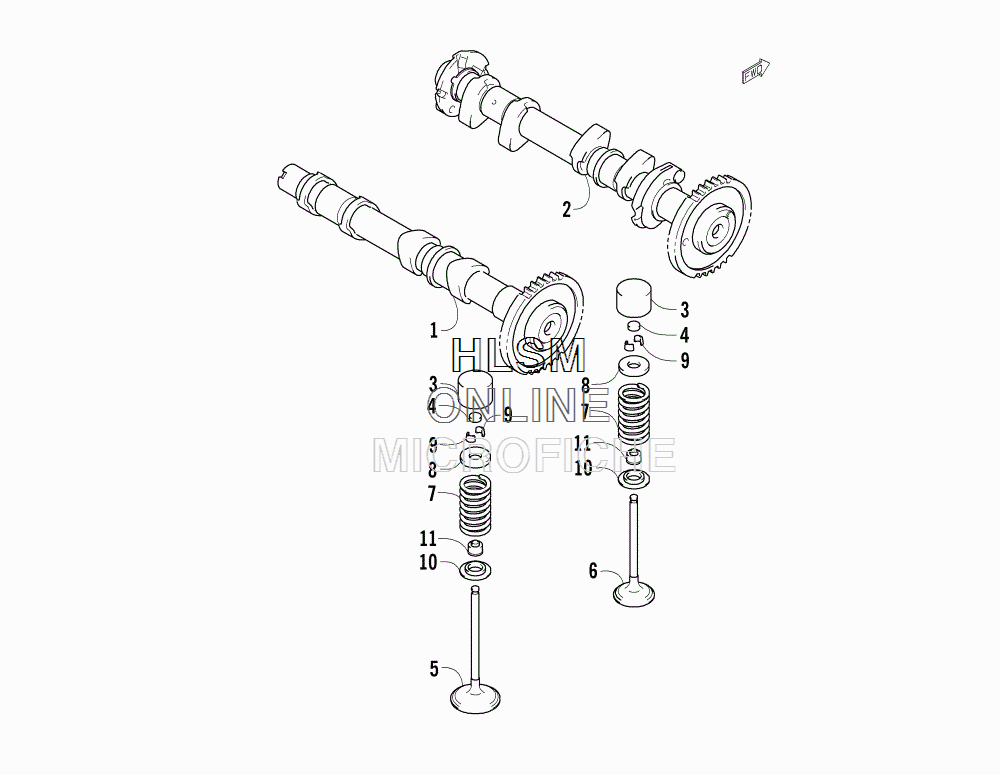

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat ZR 9000 ET LTD 129 BLACK [S2016ZRNEEUSB] - 2016 года выпуска
-
№АртикулНазвание
-
13007-150 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
23007-506 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
33402-851 TAPPETTAPPET
-
43402-852 SHIM, TAPPET - 2.30 MMSHIM, TAPPET - 2.30 MM
-
43402-853 SHIM, TAPPET - 2.35 MMSHIM, TAPPET - 2.35 MM
-
43402-854 SHIM, TAPPET - 2.40 MMSHIM, TAPPET - 2.40 MM
-
43402-855 SHIM, TAPPET - 2.45 MMSHIM, TAPPET - 2.45 MM
-
43402-856 SHIM, TAPPET - 2.50 MMSHIM, TAPPET - 2.50 MM
-
43402-857 SHIM, TAPPET - 2.55 MMSHIM, TAPPET - 2.55 MM
-
43402-858 SHIM, TAPPET - 2.60 MMSHIM, TAPPET - 2.60 MM
-
43402-859 SHIM, TAPPET - 2.65 MMSHIM, TAPPET - 2.65 MM
-
43402-860 SHIM, TAPPET - 2.70 MMSHIM, TAPPET - 2.70 MM
-
43402-861 SHIM, TAPPET - 2.75 MMSHIM, TAPPET - 2.75 MM
-
43402-862 SHIM, TAPPET - 2.80 MMSHIM, TAPPET - 2.80 MM
-
43402-863 SHIM, TAPPET - 2.85 MMSHIM, TAPPET - 2.85 MM
-
43402-864 SHIM, TAPPET - 2.90 MMSHIM, TAPPET - 2.90 MM
-
43402-865 SHIM, TAPPET - 2.95 MMSHIM, TAPPET - 2.95 MM
-
43402-866 SHIM, TAPPET - 3.00 MMSHIM, TAPPET - 3.00 MM
-
43402-867 SHIM, TAPPET - 3.05 MMSHIM, TAPPET - 3.05 MM
-
43402-868 SHIM, TAPPET - 3.10 MMSHIM, TAPPET - 3.10 MM
-
43402-869 SHIM, TAPPET - 3.15 MMSHIM, TAPPET - 3.15 MM
-
43402-870 SHIM, TAPPET - 3.20 MMSHIM, TAPPET - 3.20 MM
-
43402-871 SHIM, TAPPET - 3.25 MMSHIM, TAPPET - 3.25 MM
-
43402-872 SHIM, TAPPET - 3.30 MMSHIM, TAPPET - 3.30 MM
-
43402-873 SHIM, TAPPET - 3.35 MMSHIM, TAPPET - 3.35 MM
-
43402-874 SHIM, TAPPET - 3.40 MMSHIM, TAPPET - 3.40 MM
-
43402-875 SHIM, TAPPET - 3.45 MMSHIM, TAPPET - 3.45 MM
-
43402-876 SHIM, TAPPET - 3.50 MMSHIM, TAPPET - 3.50 MM
-
53007-152 VALVE, INTAKEVALVE, INTAKE
-
63007-860 VALVE, EXHAUSTVALVE, EXHAUST
-
73007-625 SPRING, VALVESPRING, VALVE
-
83007-626 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
90693-281 COTTER, VALVECOTTER, VALVE
-
103007-156 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
113402-226 SEAL, VALVE STEMSEAL, VALVE STEM
